The most comprehensive scan tool in the market, the diagnostic powerhouse for your entire fleet.

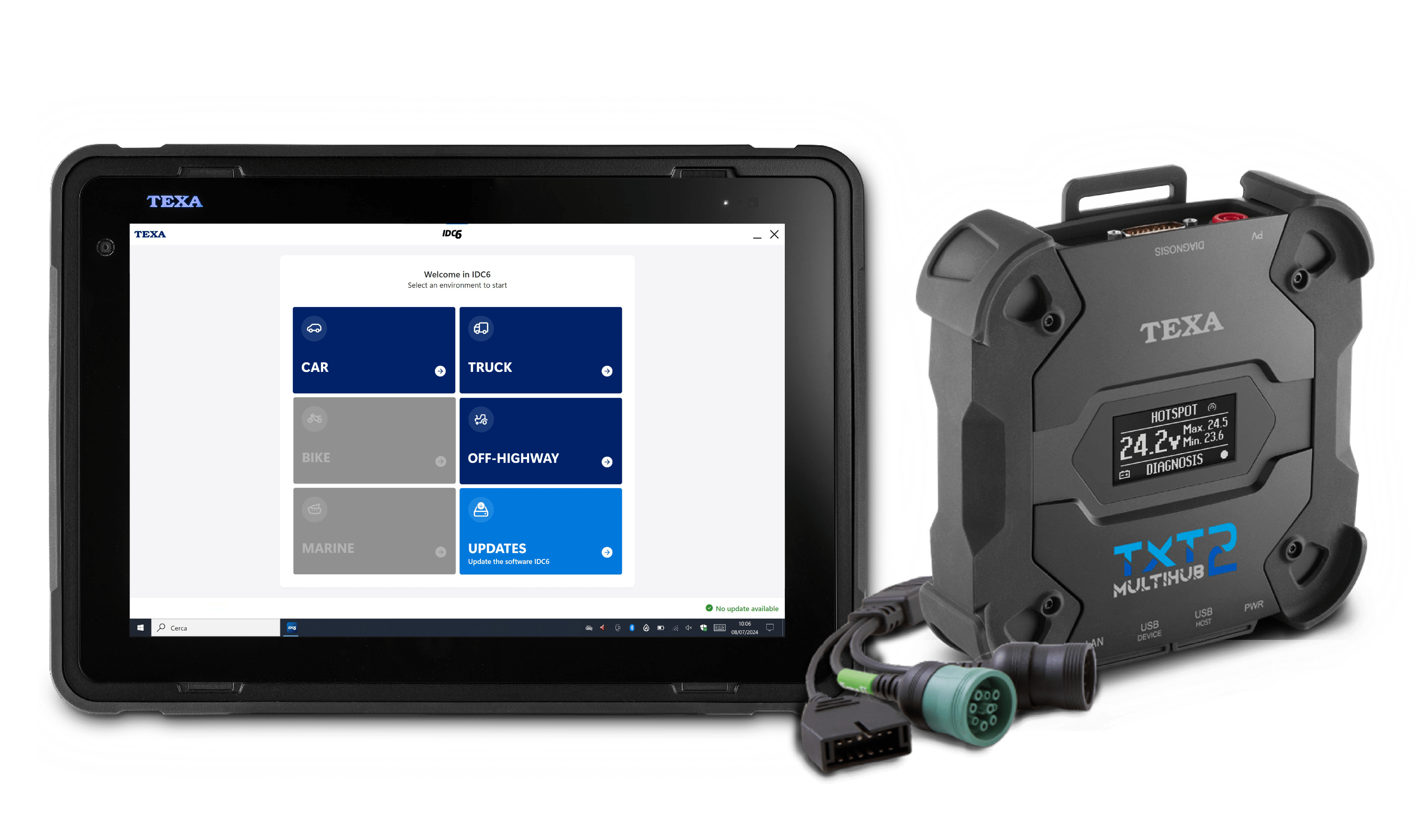

The TEXA Deluxe Fleet Package is the ultimate all-in-one diagnostic solution, combining the power and capabilities of our CAR, TRUCK, and OFF-HIGHWAY software environments in a single package. Designed for businesses and technicians who service a wide variety of vehicles and equipment, this package offers unmatched versatility, efficiency, and value.
With comprehensive coverage spanning passenger vehicles, commercial trucks, vans and heavy-duty machinery, the Deluxe Fleet Package equips you to diagnose and maintain virtually any vehicle in your fleet — from cars and light-duty vans to heavy-duty trucks, agricultural tractors, construction equipment, and beyond.
Complete Diagnostics:
Whether it’s reading and clearing DTCs, performing ECU coding and adaptations, running bi-directional tests, or monitoring live parameters, the Deluxe Fleet Package provides full access to all diagnostic functions across every supported environment.
Advanced System Coverage:
From modern ADAS, hybrid/electric, and TPMS systems in cars — to advanced emissions, telematics, hydraulics, and GPS control systems in off-highway machinery — to programming and bi-directional commands in heavy-duty trucks, the Deluxe Fleet Package is built to handle today’s most sophisticated vehicles and technologies.
Active Tests & Service Functions:
Perform active tests on components, reset service intervals, calibrate sensors and actuators, regenerate DPFs, and much more — helping to verify repairs, reduce downtime, and maintain peak performance.
Guided Repair Resources:
All functions are backed by thousands of wiring diagrams, schematics, technical data sheets, and repair procedures to guide you through the entire diagnostic and repair process efficiently and accurately.
The TEXA Deluxe Fleet Package streamlines maintenance, improves workflow, and saves time and money by consolidating all your diagnostic needs into one robust, easy-to-use platform — ensuring your fleet stays on the road and on the job.

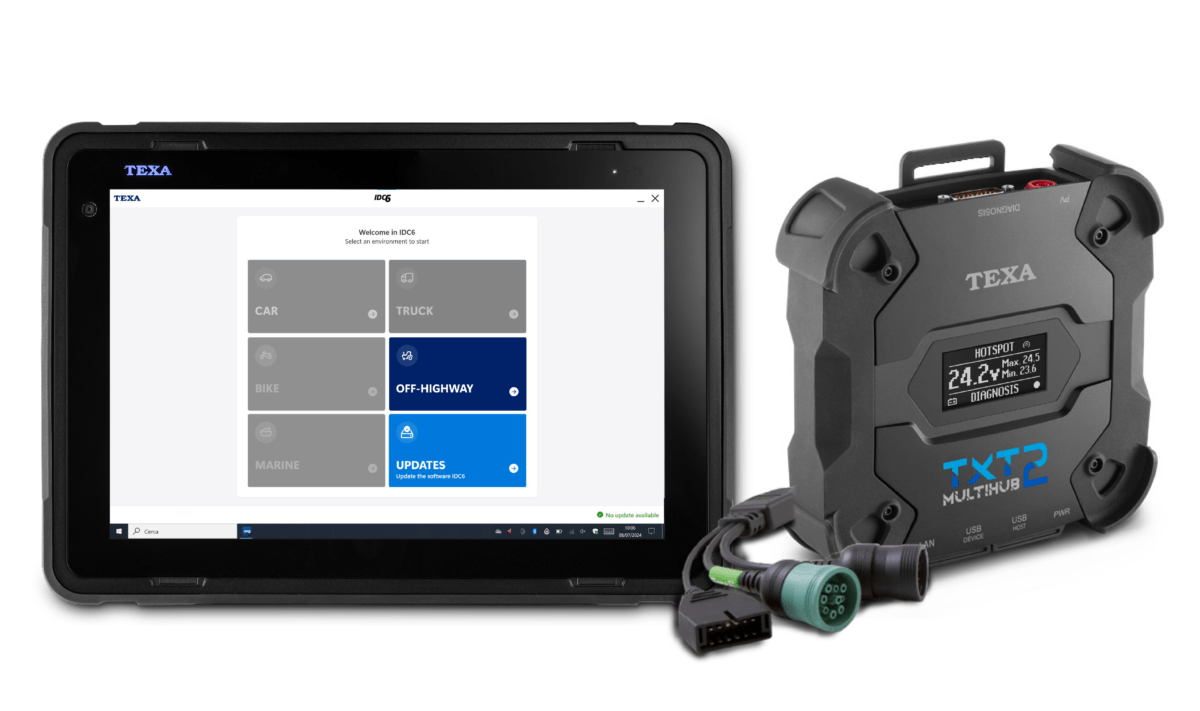

This mobile diagnostic unit utilizes advanced diagnostic capabilities to perform in-depth analysis of vehicle systems. With real-time connectivity and comprehensive data insights, it enables efficient troubleshooting and precise diagnostics, right at your location.
This diagnostic function allows for the deactivation of individual engine cylinders to assess their performance. It helps identify potential issues with specific cylinders, ensuring more accurate troubleshooting and effective engine diagnostics.

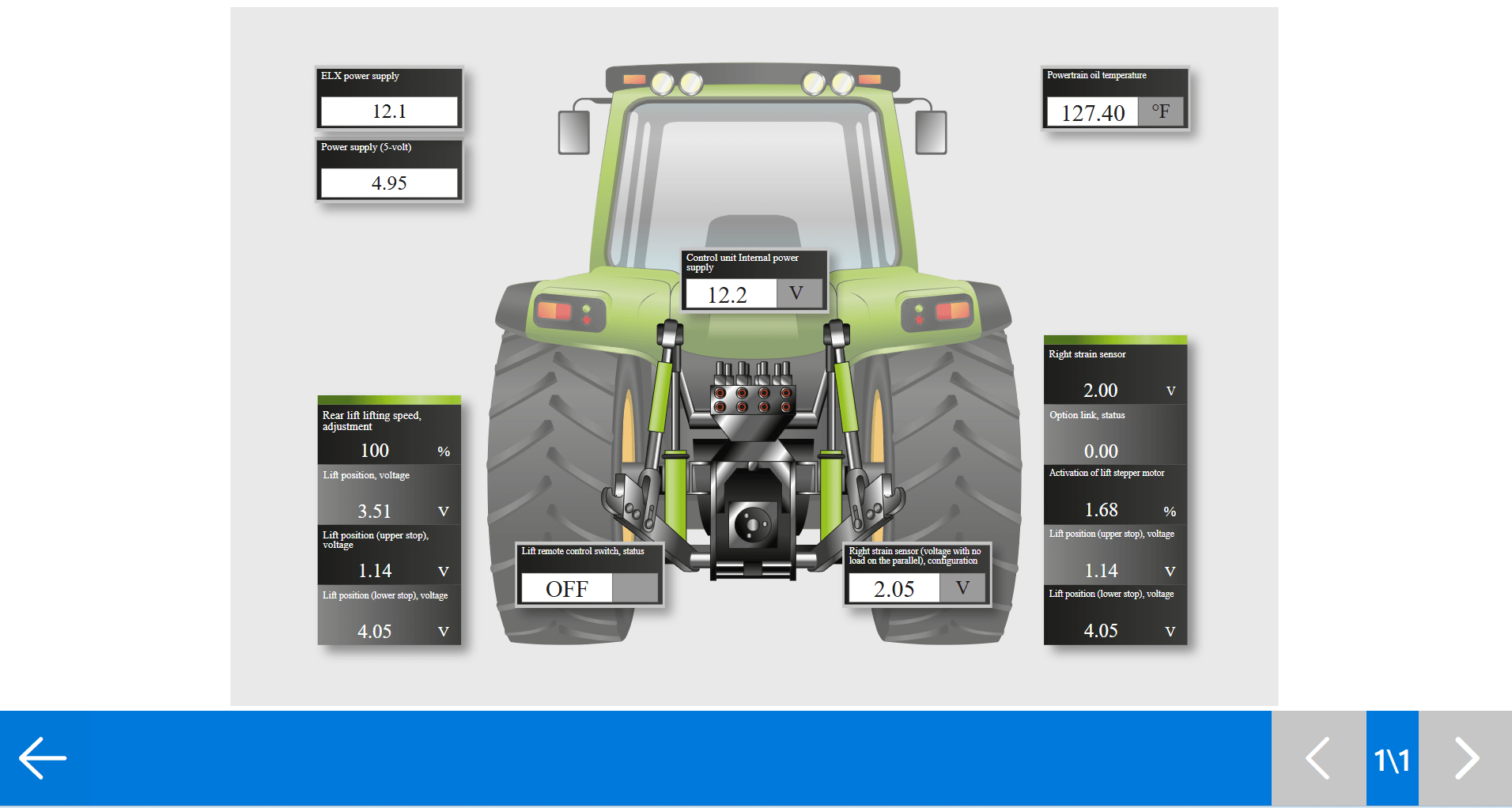

Run diagnostics and perform functional tests on rear hydraulic systems in equipment to maintain optimal lifting performance.

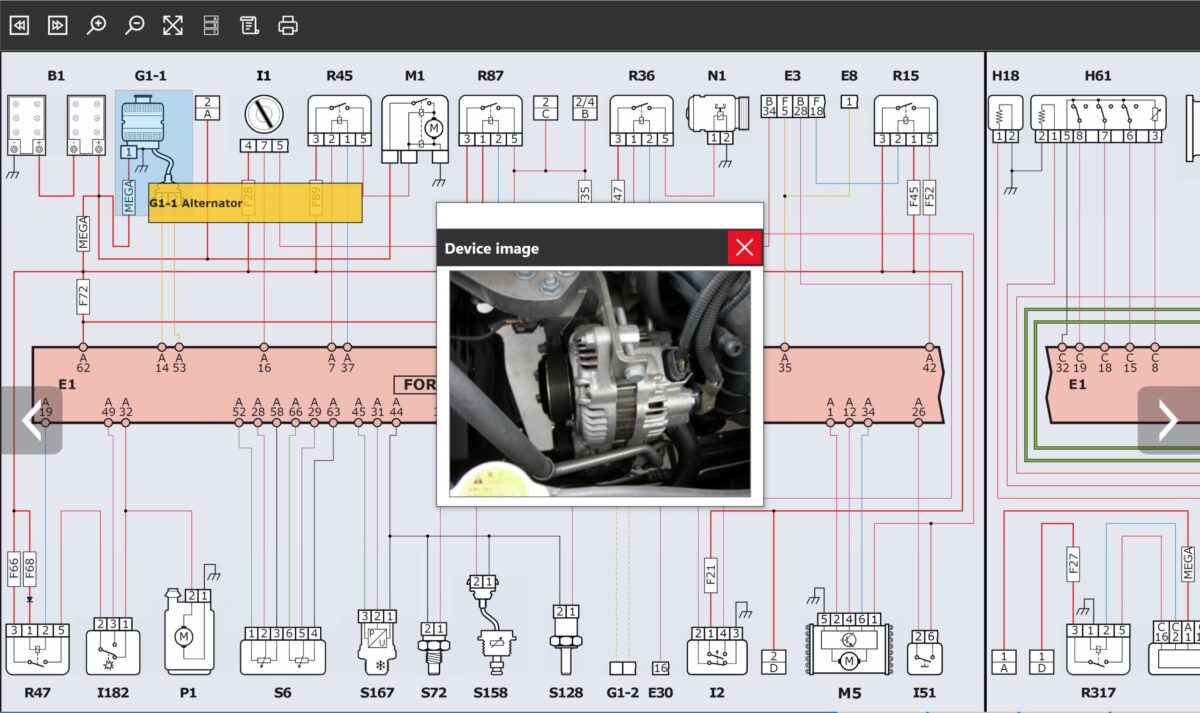

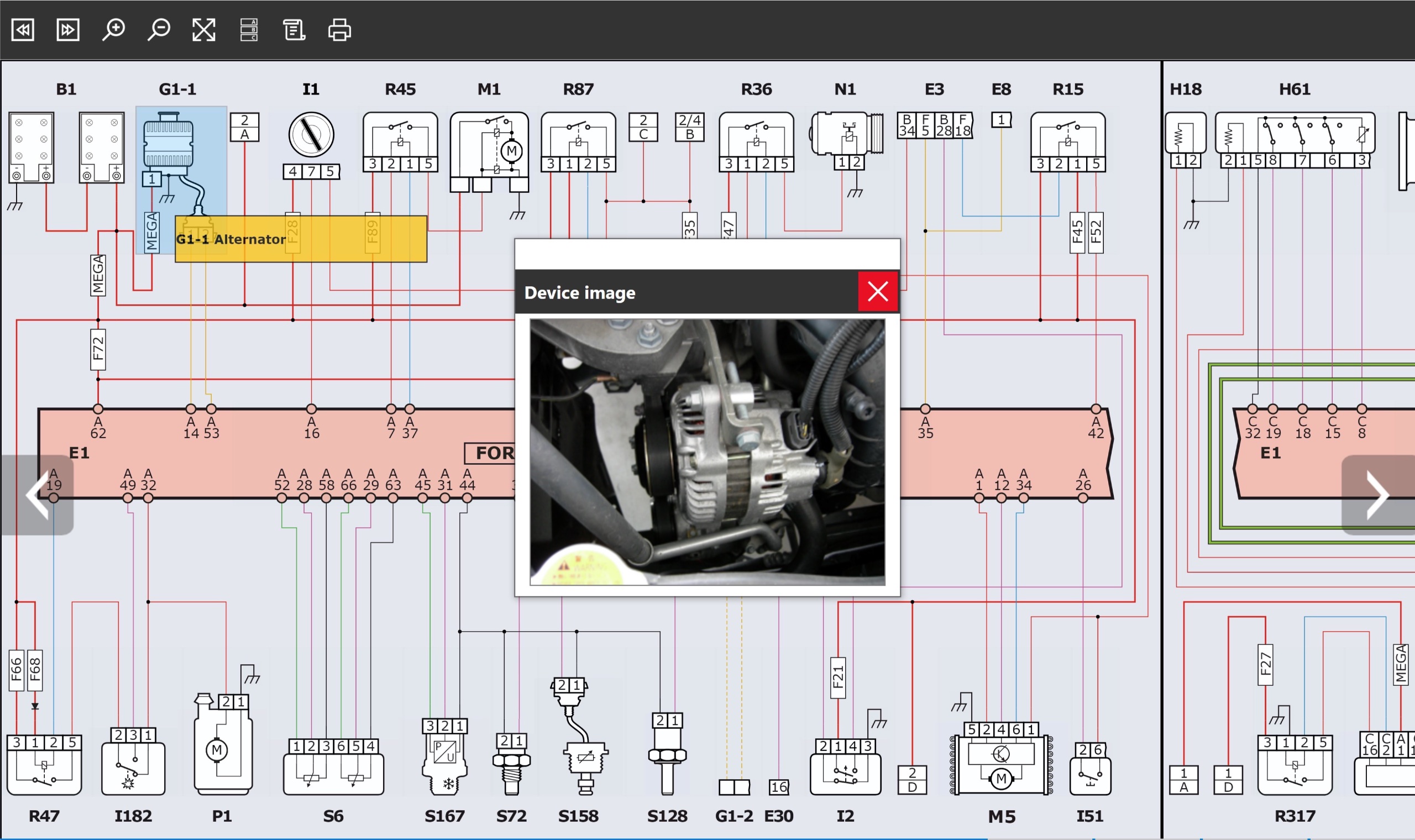

Access interactive wiring diagrams and detailed technical documents to support accurate diagnostics and component-level repairs.

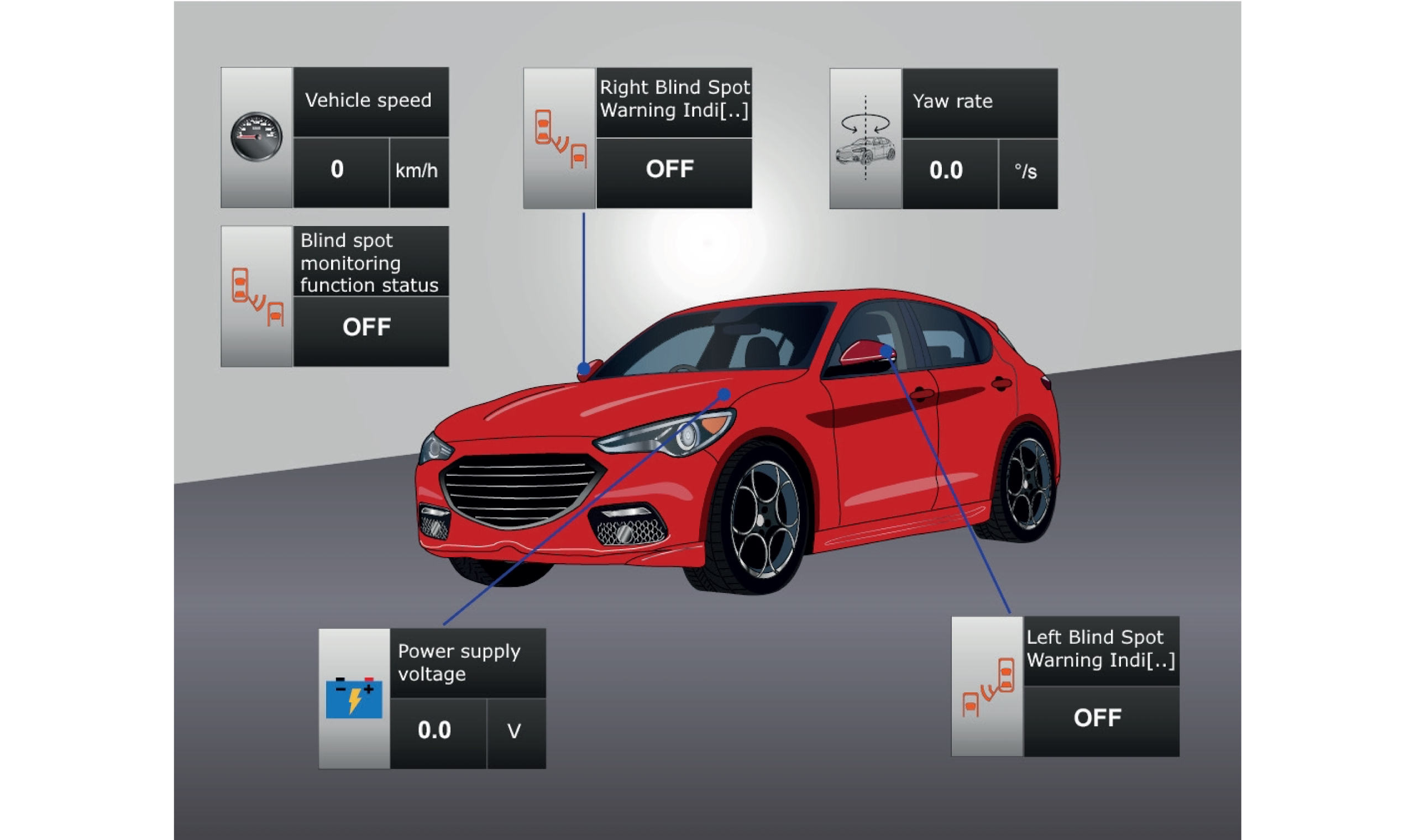

Provides a real-time, interactive view of essential vehicle parameters and diagnostics, enabling efficient monitoring and troubleshooting of system performance.
Offering real-time support for diagnosing, troubleshooting, and repairing vehicle systems, enabling technicians to navigate complex wiring and component layouts with improved accuracy and efficiency.
DISPLAY AND RESOLUTION
Gorilla® Glass 13.3” screen
High resolution: 2560×1600 (up to 400 cd/m² ) 16.7 M of eDP colours
Multi-touch support up to 10 points simultaneously
OPERATING SYSTEM
Windows 10 Enterprise
PROCESSOR
(Generation – Model and type)
Intel® i5 8M cache, TGL UP3 i5-1145G7E “Tiger Lake”
1.5-4.1 Ghz Turbo Boost – Quad Core 15W
GRAPHICS
Intel® Iris® Xe Graphics
COOLING
Fanless
RAM storage
16 GB LPDDR4 dual channel 3200 Mhz
MEMORY CAPACITY
512 GB SSD 2280 PCIe Gen3.0 x 4 lane NVMe
CERTIFICATIONS
EC brand / NEMKO RED / electrical safety SUD TUV brand / RoHS
regulation compliant
US electrical safety cTUV NRTL – USA + Canada
FCC / IC certification – USA + Canada
Proposition 65 compliance – California
MIL-STD 810G (TRANSIT DROP TEST)
STRUCTURE
In magnesium
BATTERY
Li-ion battery – 7.2 Volt 90 W/h (12500 mAh)
(10 hours of operation in standard use conditions)
BUILT-IN INTERFACE
GNSS
SENSORS
Accelerometer; eCompass; Gyroscope; Barometer; Altimeter;
Ambient light sensor, magnetic
CONNECTIVITY
Dual band 802.11ac Wi-Fi, Bluetooth® 5.1 Intel AC9260
EXPANDABILITY
4x 3.0 USB ports (max output current 2000 mA)
CAMERAS
Rear: 8 MP AF with FLASH – Front: 8 MP
SIZES AND WEIGHT
360 x 250 x 34 mm / 2.3 Kg
WARRANTY
1 year
Main processor:
• Type: iMX6 1 GHz
• RAM: 512 MByte
• Mass Storage: eMMC 8 GByte
Coprocessor:
• Type: STM32F439 168 MHz
• RAM: 2 MByte SRAM, 8 MByte SDRAM
• Flash: 2 MByte
Power supply connector: PWR: 2.1 DC jack
Power supply: 12 – 24 Vdc (from vehicle battery via OBD connector or specific wirings)
Consumption: 1 A @12 V max
USB connectors:
• USB: USB 2.0 host type A max 1 A out
• USB DEVICE: USB 2.0 device type B (priority connector)
Bluetooth communication: Bluetooth 5.0 (BDR/EDR/LE)
WiFi communication: WiFi IEEE 802.11 b/g/n 2.4GHz
Operational band: 2400 ÷ 2483.5 MHz
Maximum radio frequency power transmitted: 10 dBm (2400 ÷ 2483,5 MHz)
Diagnostic connectors:
• DIAGNOSIS: DSUB-26HD (ISO 22900-1)
• DoIP: RJ45 (UDP/TCP 13400)
Electronic switch: 2-way, 13 independent positions
Control units reprogramming connector: PV (SAE J2534-1)
User interface: Display OLED 64×128 dot
Operating temperature: 0 ÷ 50 °C
Storage temperature: – 20 ÷ 60 °C
Supported protocols:
• Blink codes
• K, L (with current protection 100 mA), ISO9141-2, ISO14230
• CAN ISO11898-2 High Speed
• Second ISO11898-2 CAN channel
• CAN ISO 11898-3 LOW Speed
• CAN SAE J2411 Single Wire
• SAE J1850 PWM
• SAE J1850 VPW
• SAE J2534-1 / RP1210
• SAE J1708
• UDP/TCP ISO 13400 (DoIP)
Operating moisture: 10 ÷ 80 % without condensation
Dimensions [mm]: 176,1 x 175,4 x 46,8
Weight: 600 g
IP protection level: IP53 * (*) With properly closed protective caps.
Directives:
RoHS 2011/65/UE
RED 2014/53/UE
2015/863/UE
Electromagnetic compatibility:
ETSI EN 301 489-1
ETSI EN 301 489-17
Radio systems: ETSI EN 300 328
Electrical safety:
EN 62638-1/AC:2015
EN 62311:2008
WARRANTY
1 year
