Built by innovators, not imitators.
Over 20 years ago, TEXA pioneered the market for powersports diagnostics with the launch of its first TEXA BIKE software. Since then, TEXA has remained the undisputed leader in the field, offering unmatched vehicle coverage, in-depth technical information, and multiple partnerships with original equipment manufacturers (OEMs) that reinforce its reputation for excellence.
Accept No Substitutes. Trust the Original.
Comprehensive Vehicle Coverage
The TEXA BIKE software supports diagnostics for a wide range of powersports vehicles (over 90 makes) , including:
Compatible with European, Asian, and American brands, the software enables users to carry out advanced diagnostics, maintenance, and repair tasks efficiently and accurately.
Key Features:
ECU Diagnostics
Read and clear diagnostic trouble codes (DTCs) from the Engine Control Unit (ECU) and other electronic control systems.
Live Data Monitoring
View real-time data from critical vehicle sensors such as engine temperature, throttle position, fuel injectors, and more.
Active Tests
Perform functional tests on components such as fuel pumps, fans, lights, and injectors to verify correct operation.
Programming Capabilities
Where supported, perform ECU reprogramming, software updates, calibration adjustments, key programming, and immobilizer resets.
Service Functions
Reset service indicators and warning lights, configure new components (e.g., throttle bodies, sensors), and perform system recalibrations.
Technical Information:
All functions are supported by thousands of wiring diagrams, schematics, data sheets and repair procedures to guide the users through the whole process. All of these tools can help streamline maintenance and improve the efficiency of repairs, ultimately saving time and money.

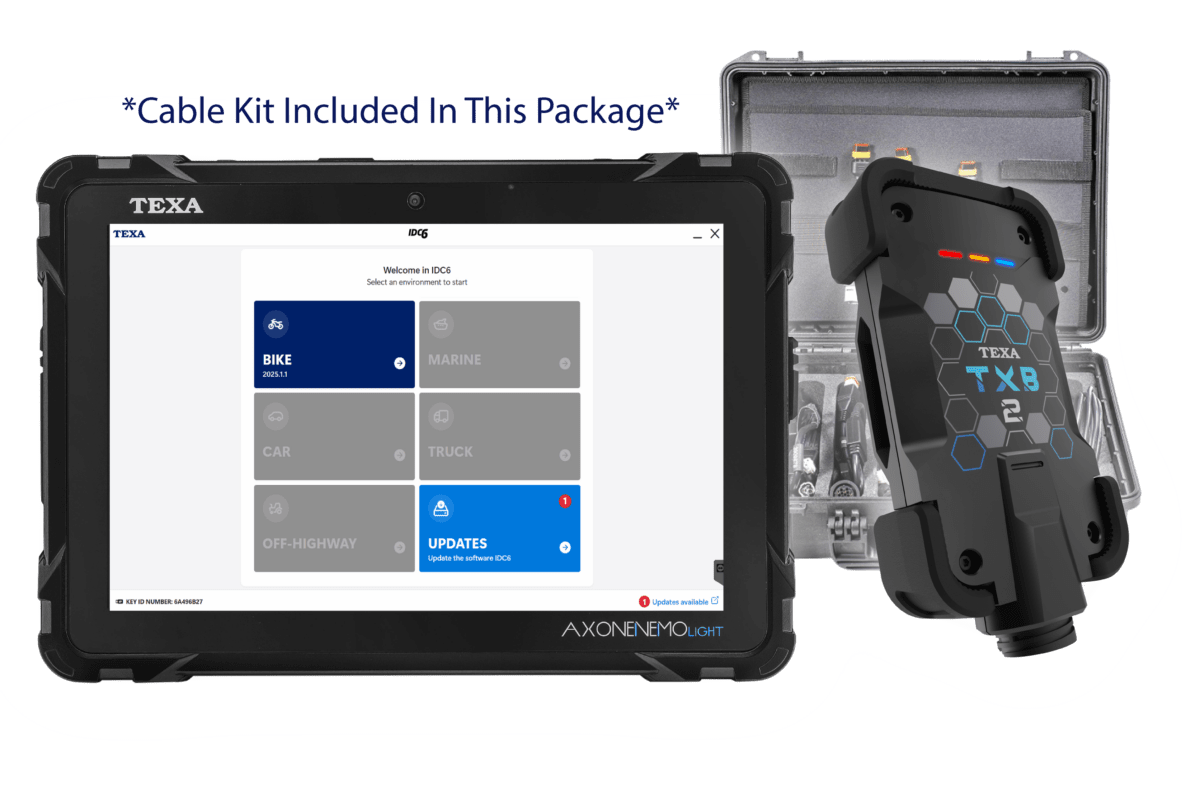

*Please note* This kit does not come with diagnostic adapters. Technicians should choose the appropriate cables based on their requirements and needs.

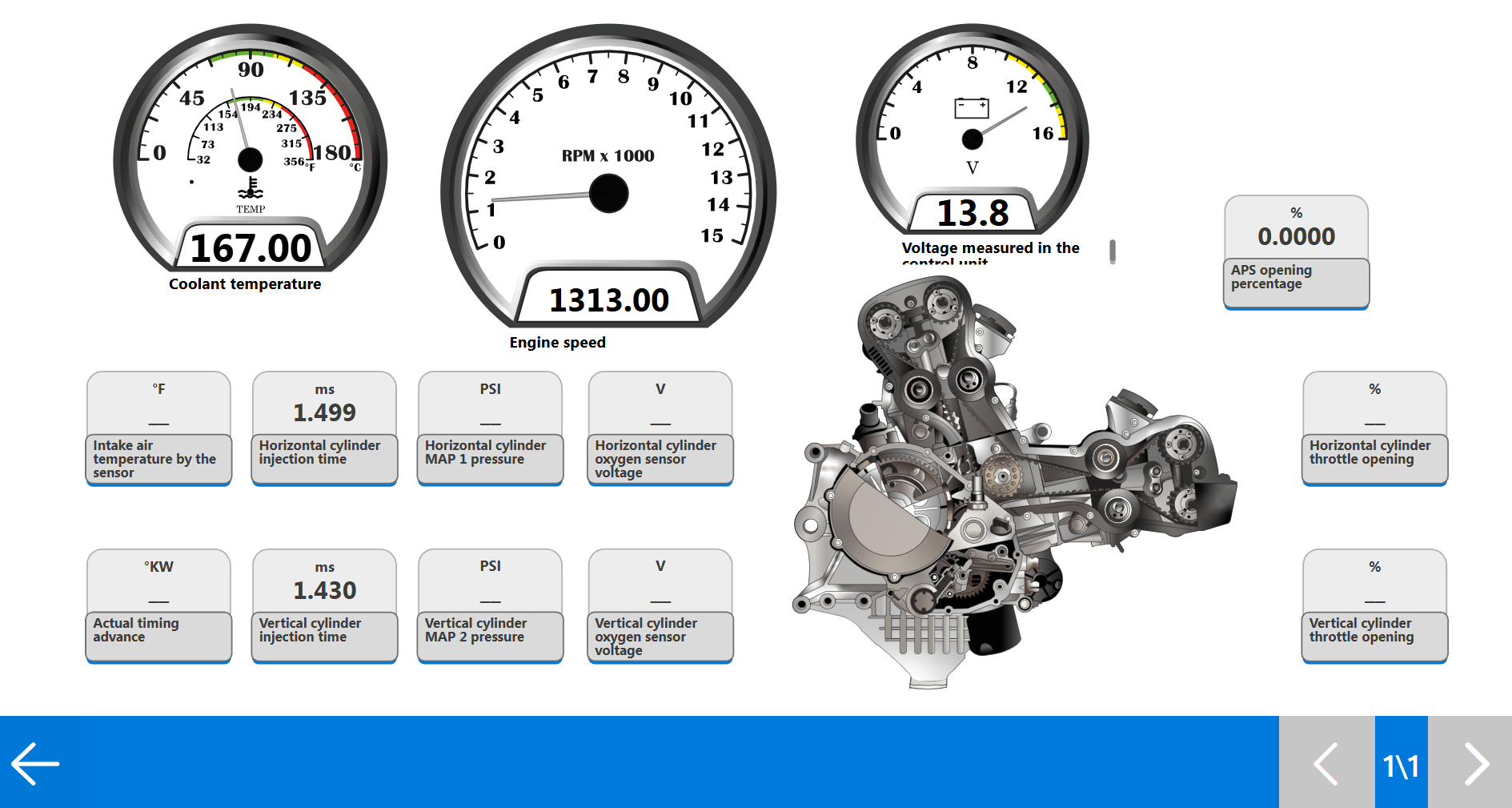

View live parameters, fault codes, and system status for engines, ensuring precise diagnostics and performance tuning.

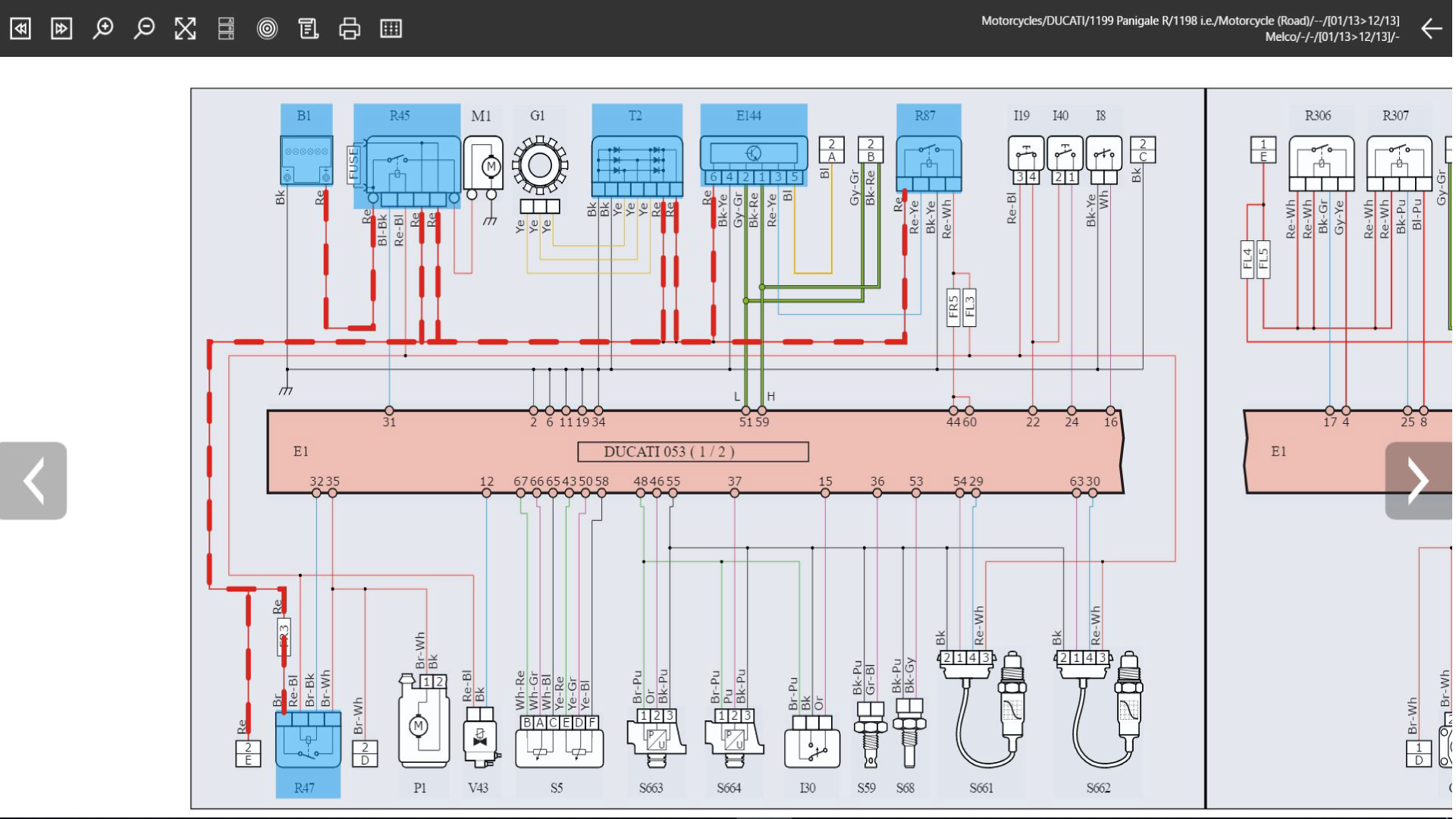

Access comprehensive technical details, including wiring diagrams and system schematics, to support thorough and accurate diagnostics.

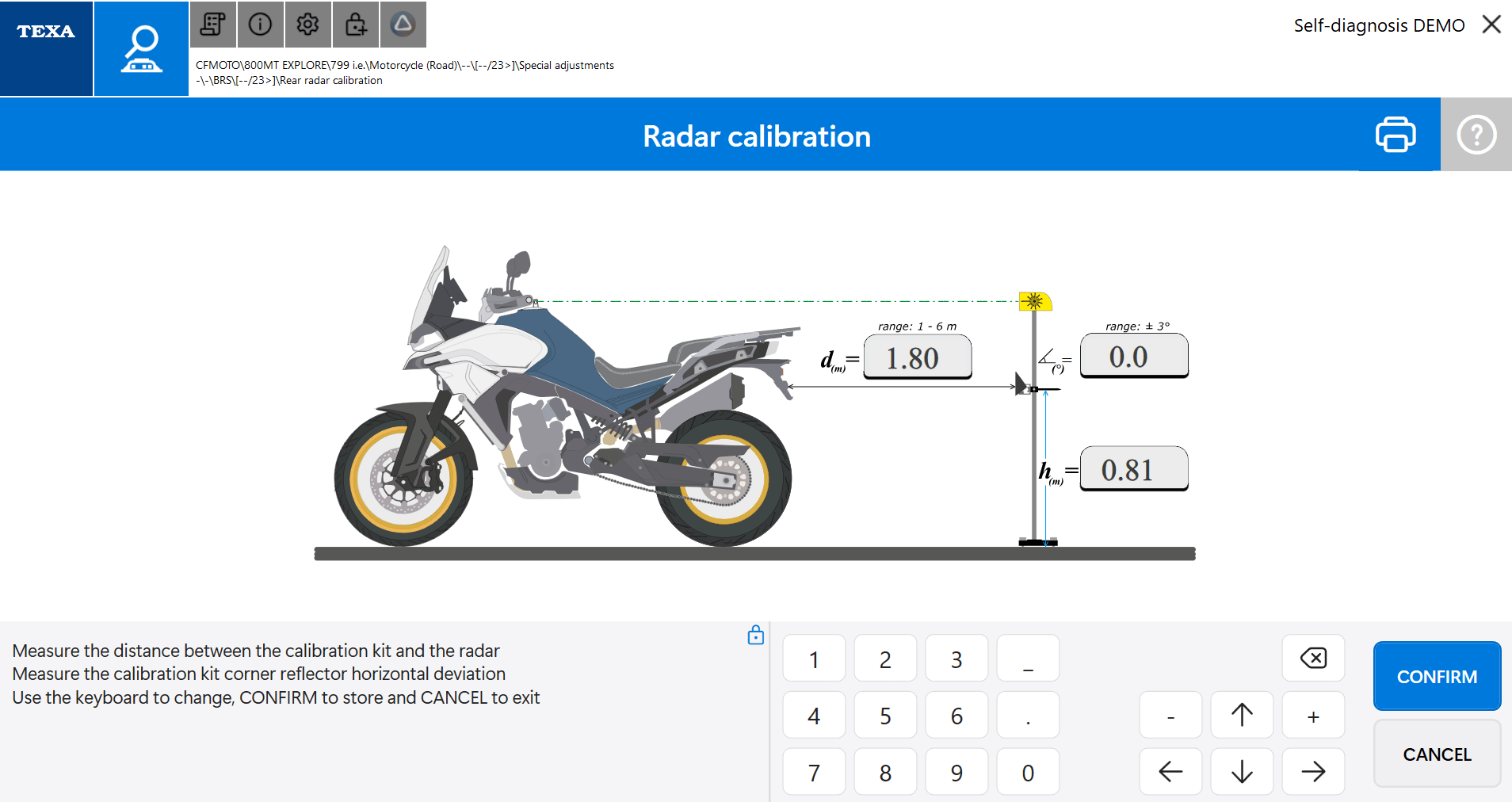

Perform precise radar calibration procedures to ensure proper alignment and functionality of advanced driver assistance systems (ADAS) for safe and reliable operation.

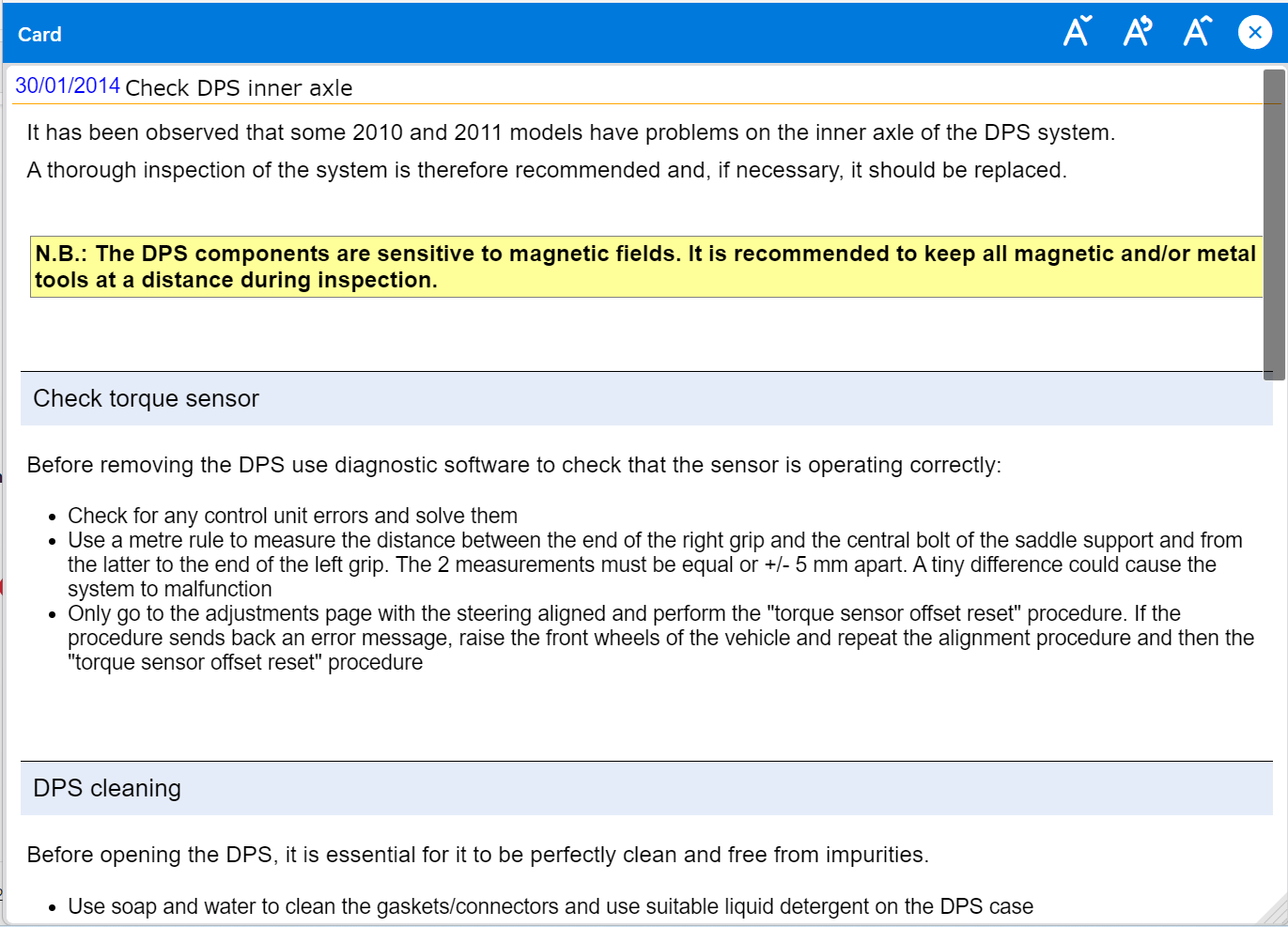

Step-by-step procedure cards guide technicians through accurate diagnostics and repairs on motorcycles, ensuring consistency and reliability in every service.

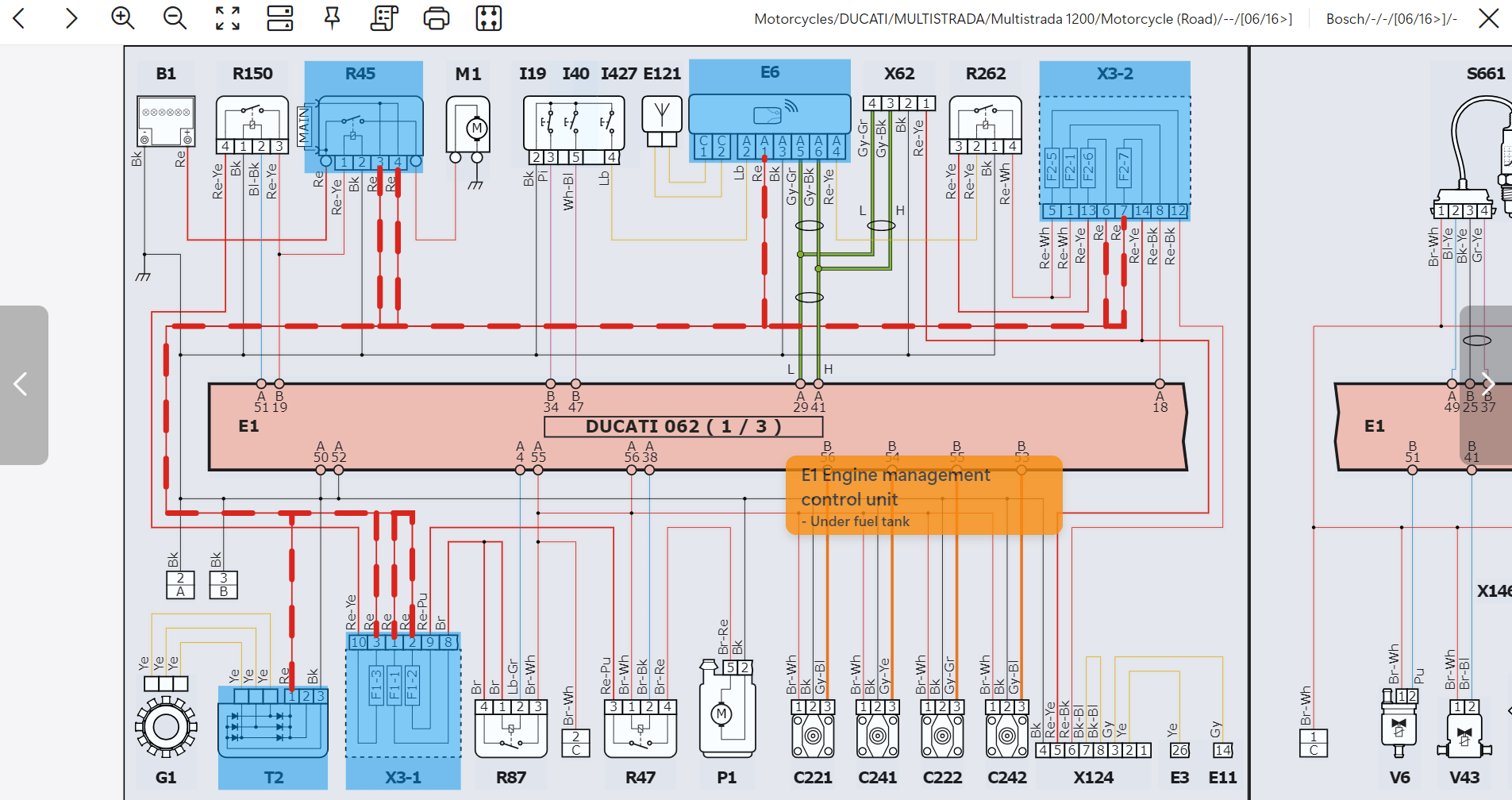

Detailed and easy-to-read wiring diagrams help technicians pinpoint electrical faults, ensuring precise troubleshooting and repairs.
Quickly reset idle settings to stabilize engine performance following repairs or part replacements, ensuring smooth operation.
PROCESSOR
Intel© N100 with standard dissipation
RAM
8 GB DDR5
HARD DISK
250 GB with eMMC technology
BIOS
64 Mbit Flash ROM, AMI BIOS
OPERATING SYSTEM
Windows™ 11 IoT Enterprise
VIDEO PERIPHERAL DEVICES (built-in)
High-contrast ultra-wide view angle display;
Dimensions: 10.1”;
Resolution: 1920×1200 pixel;
High-sensitivity touch controller;
Fully laminated capacitive display.
AUDIO PERIPHERAL DEVICES (built-in):
2 speakers
WIRELESS PERIPHERAL DEVICES (built-in):
• Wi-Fi: 6 (802.11ax)
• Bluetooth: 5.2
I/O PERIPHERAL DEVICES
1 USB Type A 2.0
1 USB Type A 3.0
1 micro HDMI
CAMERAS
Front: 2 Mpixel
Rear: 5 Mpixel
LEDs
1 green LED (system status)
1 red LED (charging / power supply status)
ROBUSTNESS
Rugged design
INTERNAL BATTERY
Rechargeable Li-ion 7,4 Vdc; 44,4 Wh; 6000 mAh
EXTERNAL POWER SUPPLY
From external power adapter:
• Input: 100-240 Vac; 0.8 A; 50-60 Hz
• Output: 12 V – 3.0 A
ABSORPTION
12 Vdc (2Adc)
OPERATING TEMPERATURE
0 ÷ 40 °C
WARRANTY
1 year
PROCESSOR
CORTEX M7 STM32H735AGI6 up to 550 MHz, 1MB
FLASH, 564KB RAM
SRAM MEMORY
16 MBits organized in 1024K x 16 bits
SRAM
256 MBits organized in 4096K x 4 banks x 16 bits
eMMC MEMORY
8 GByte on an 8-bit bus
VEHICLE BATTERY
System management at 12 V and 24 V
EXTERNAL POWER SUPPLY
12 ÷ 24 V
USB COMMUNICATION
2.0 high speed 5 V / 500 mA
WIRELESS CONNECTION
Bluetooth 5.0 class1
OPERATIONAL BAND
2402 ÷ 2480 MHz
MAXIMUN RADIO FREQUENCY POWER TRANSMITTED
10 dBm
ELECTRONIC SWITCH
2-way, 13 independent positions
DIAGNOSTIC CONNECTOR
16-pin CPC
SUPPORTED PROTOCOLS
• Blink codes
• K, L (with current protection 100 mA),
ISO9141-2, ISO14230
• FD CAN 11898-2:2016 2 channels
• CAN ISO 11898-3 LOW Speed
• CAN SAE J2411 Single Wire
• SAE J1850 PWM
• SAE J1850 VPW
• SAE J1708
• RS232
VISIBLE WARNINGS
LED: RGB x3
12 V CONSUMPTION
300 mA
24 V CONSUMPTION
100 mA
OPERATING TEMPERATURE
0 ÷ 50 °C
STORAGE TEMPERATURE
– 20 ÷ 60 °C
OPERATING MOISTURE
10 ÷ 80 % without condensation
DIRECTIVES
RED 2014/53/EU
RoHS 2011/65/EU and Delegated Directive 2015/863/EU
SAFETY
EN 62368-1
EN 62311
ELECTROMAGNETIC COMPATIBILITY
EN 301 489-1
EN 301 489-17
RADIO SYSTEMS
EN 300 328
WEIGHT
215 g
WARRANTY
1 year
