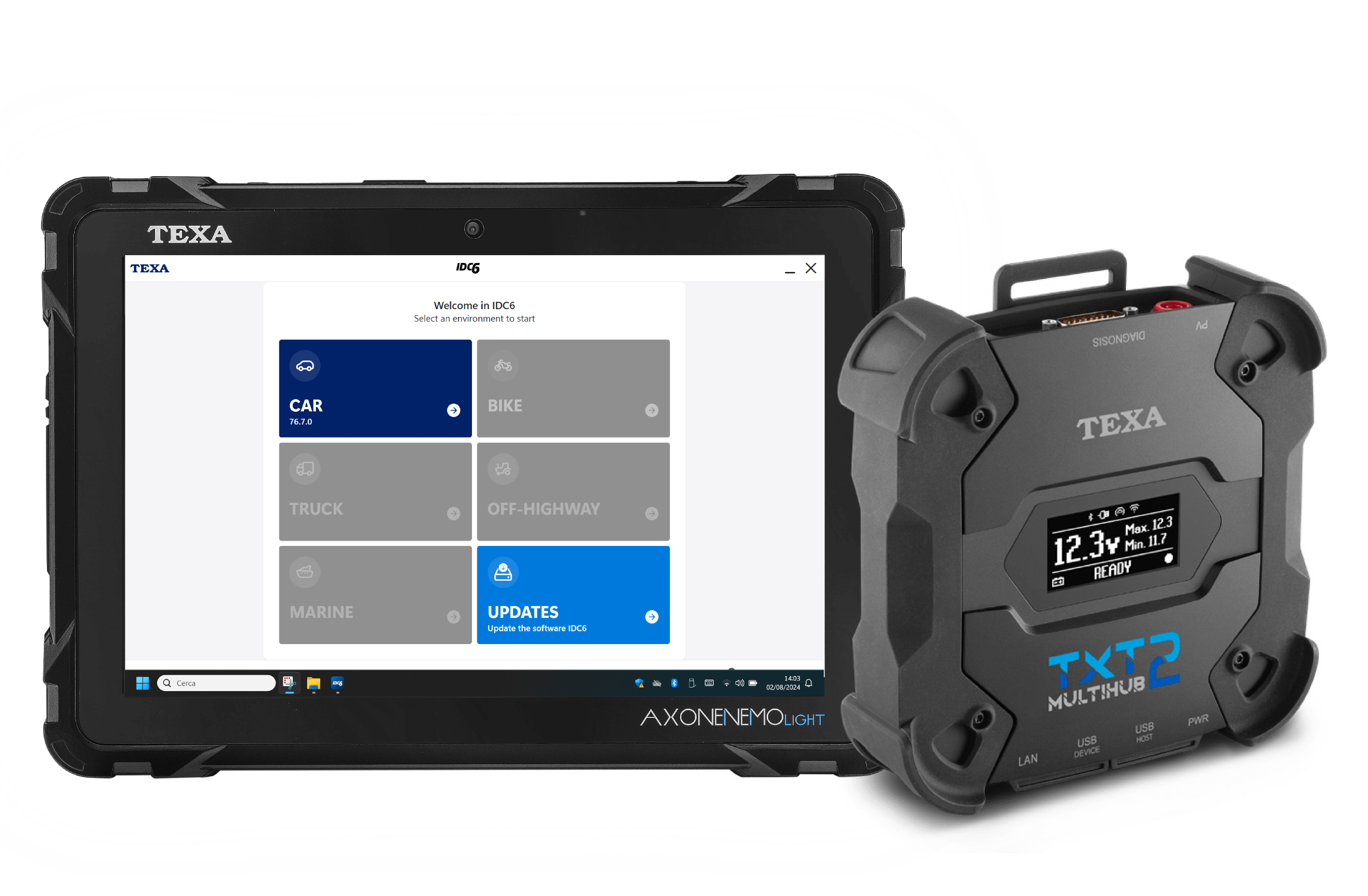

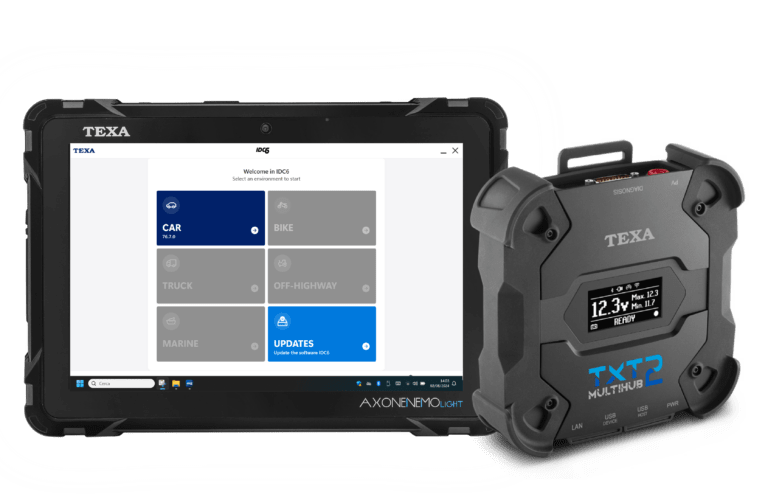

AXONE NEMO LIGHT CAR
with multihub 2

AXONE NEMO LIGHT CAR
with MULTIHUB 2

Smaller TEXA tablet, powerful VCI. POWERSPORTS included.

TEXA Car Software

The TEXA CAR Software is an excellent choice for automotive diagnostics due to its comprehensive coverage, ease of use, and support for the latest vehicle technologies. The software covers a wide variety of makes and models, from older cars to advanced vehicle systems like ADAS (Advanced Driver Assistance Systems), hybrid and electric vehicle diagnostics, airbag systems, electronic parking brakes, and adaptive headlights.

On this kit the TEXA CAR software is installed on the AXONE NEMO LIGHT tablet and it is paired to TXT Multihub2, the powerful and multi-environment VCI.

SOFTWARE CAPABILITIES:

ECU Diagnostics: The software enables users to read and clear diagnostic trouble codes (DTCs) from the ECU and perform ECU adaptations, coding, and reset functions.

Live Data: Displays real-time data from various vehicle components, such as sensors, actuators, and modules, allowing technicians to monitor performance and identify faults.

Active Tests: TEXA’s diagnostic software allows technicians to perform active tests (e.g., activating relays, actuators, or components) to verify their operation.

Service Functions: Includes features like resetting service intervals, performing DPF regeneration (for diesel engines), calibration of electronic systems, and tire pressure monitoring system (TPMS) reset.

This kit includes coverage on all powersports vehicles like motorcycles, ATVs/UTVs, snowmobiles and PWCs.

TECHNICAL INFORMATION:

All functions are supported by thousands of wiring diagrams, schematics, data sheets and repair procedures to guide the users through the whole process. All of these tools can be used with the help of the TEXA AI to streamline service operations. The TEXA CAR software includes the MOTOR TRUSPEED database too.

ADAS CAMERA CALIBRATION

Precise service solution designed to recalibrate Advanced Driver Assistance System (ADAS) cameras, ensuring optimal functionality and accuracy for safety features in modern vehicles.

LIVE Parameters

Gain real-time insights to track and analyze every vehicle system instantly for accurate diagnostics and faster repairs.

GATEWAY ACCESS

provides secure, direct access to OEM-protected vehicle systems, enabling advanced diagnostics and streamlined repairs.

POWERSPORTS COVERAGE

Extensive diagnostic support for a wide range of powersports vehicles, including motorcycles, ATVs, UTVs, and snowmobiles, ensuring complete service capability.

DASHBOARD

Provides a real-time, interactive view of essential vehicle parameters and diagnostics, enabling efficient monitoring and troubleshooting of system performance.

INTERACTIVE DIAGRAMS

Offering real-time support for diagnosing, troubleshooting, and repairing vehicle systems, enabling technicians to navigate complex wiring and component layouts with improved accuracy and efficiency.

AXONE NEMO LIGHT CAR PACKAGE CONTAINS

Technical Specifications

AXONE NEMO LIGHT TABLET

CLICK HERE FOR MORE INFORMATION

PROCESSOR
Intel© N100 with standard dissipation

RAM
8 GB DDR5

HARD DISK
250 GB with eMMC technology

BIOS
64 Mbit Flash ROM, AMI BIOS

OPERATING SYSTEM
Windows™ 11 IoT Enterprise

VIDEO PERIPHERAL DEVICES (built-in)
High-contrast ultra-wide view angle display;
Dimensions: 10.1”;
Resolution: 1920×1200 pixel;
High-sensitivity touch controller;
Fully laminated capacitive display.

AUDIO PERIPHERAL DEVICES (built-in):
2 speakers

WIRELESS PERIPHERAL DEVICES (built-in):
• Wi-Fi: 6 (802.11ax)
• Bluetooth: 5.2

I/O PERIPHERAL DEVICES
1 USB Type A 2.0
1 USB Type A 3.0
1 micro HDMI

CAMERAS
Front: 2 Mpixel
Rear: 5 Mpixel

LEDs
1 green LED (system status)
1 red LED (charging / power supply status)

ROBUSTNESS
Rugged design

INTERNAL BATTERY
Rechargeable Li-ion 7,4 Vdc; 44,4 Wh; 6000 mAh

EXTERNAL POWER SUPPLY
From external power adapter:
• Input: 100-240 Vac; 0.8 A; 50-60 Hz
• Output: 12 V – 3.0 A

ABSORPTION
12 Vdc (2Adc)

OPERATING TEMPERATURE
0 ÷ 40 °C

WARRANTY
1 year

TXT MULTIHUB 2

CLICK HERE FOR MORE INFORMATION

Main processor:
• Type: iMX6 1 GHz
• RAM: 512 MByte
• Mass Storage: eMMC 8 GByte

Coprocessor:
• Type: STM32F439 168 MHz
• RAM: 2 MByte SRAM, 8 MByte SDRAM
• Flash: 2 MByte

Power supply connector: PWR: 2.1 DC jack

Power supply: 12 – 24 Vdc (from vehicle battery via OBD connector or specific wirings)

Consumption: 1 A @12 V max

USB connectors:
• USB: USB 2.0 host type A max 1 A out
• USB DEVICE: USB 2.0 device type B (priority connector)

Bluetooth communication: Bluetooth 5.0 (BDR/EDR/LE)

WiFi communication: WiFi IEEE 802.11 b/g/n 2.4GHz

Operational band: 2400 ÷ 2483.5 MHz

Maximum radio frequency power transmitted: 10 dBm (2400 ÷ 2483,5 MHz)

Diagnostic connectors:
• DIAGNOSIS: DSUB-26HD (ISO 22900-1)
• DoIP: RJ45 (UDP/TCP 13400)

Electronic switch: 2-way, 13 independent positions

Control units reprogramming connector: PV (SAE J2534-1)

User interface: Display OLED 64×128 dot

Operating temperature: 0 ÷ 50 °C

Storage temperature: – 20 ÷ 60 °C

Supported protocols:
• Blink codes
• K, L (with current protection 100 mA), ISO9141-2, ISO14230
• CAN ISO11898-2 High Speed
• Second ISO11898-2 CAN channel
• CAN ISO 11898-3 LOW Speed
• CAN SAE J2411 Single Wire
• SAE J1850 PWM
• SAE J1850 VPW
• SAE J2534-1 / RP1210
• SAE J1708
• UDP/TCP ISO 13400 (DoIP)

Operating moisture: 10 ÷ 80 % without condensation

Dimensions [mm]: 176,1 x 175,4 x 46,8

Weight: 600 g

IP protection level: IP53 * (*) With properly closed protective caps.

Directives:
RoHS 2011/65/UE
RED 2014/53/UE
2015/863/UE

Electromagnetic compatibility:
ETSI EN 301 489-1
ETSI EN 301 489-17

Radio systems: ETSI EN 300 328

Electrical safety:
EN 62638-1/AC:2015
EN 62311:2008

WARRANTY
1 year
