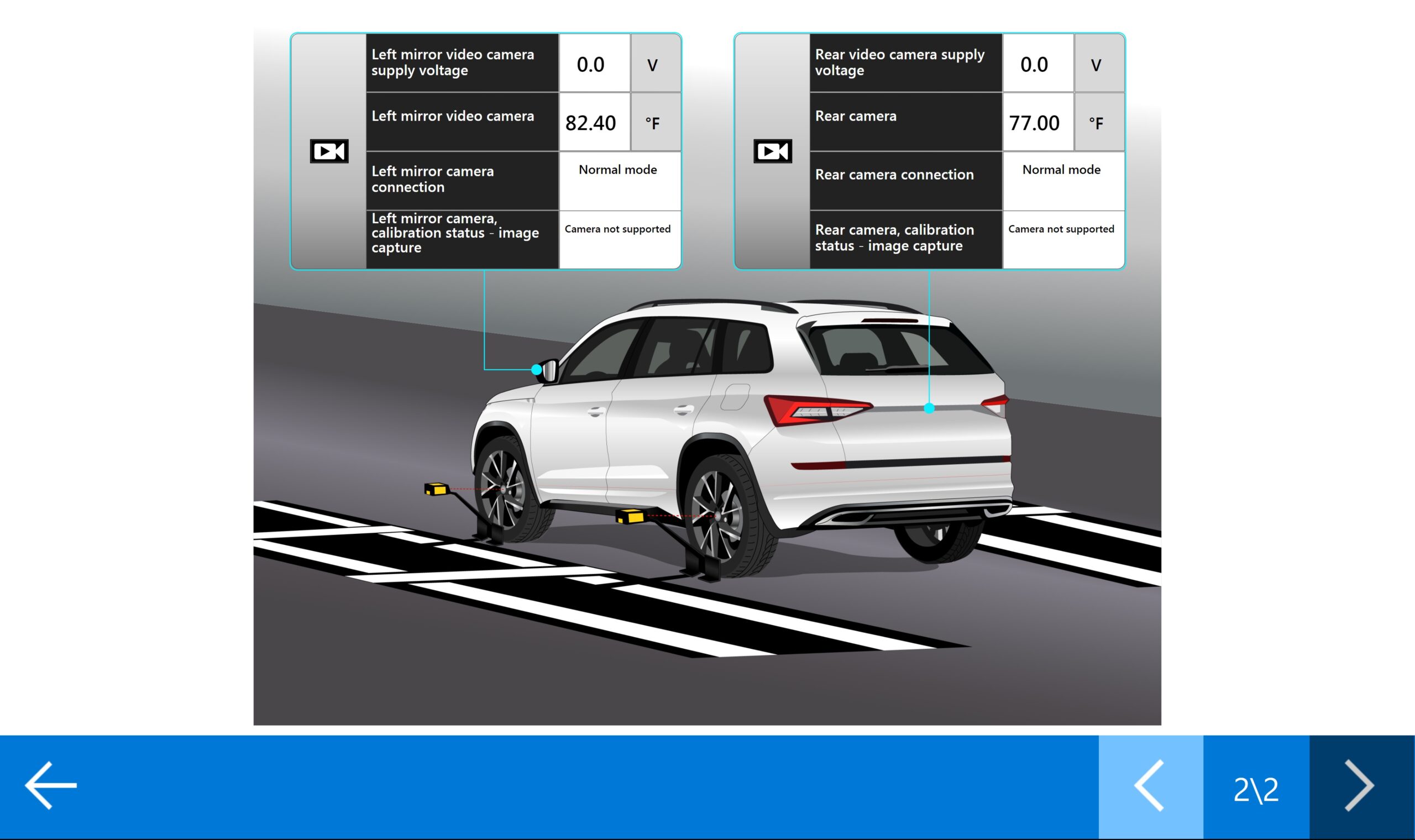

Precise service solution designed to recalibrate Advanced Driver Assistance System (ADAS) cameras, ensuring optimal functionality and accuracy for safety features in modern vehicles.
Gain real-time insights to track and analyze every vehicle system instantly for accurate diagnostics and faster repairs.

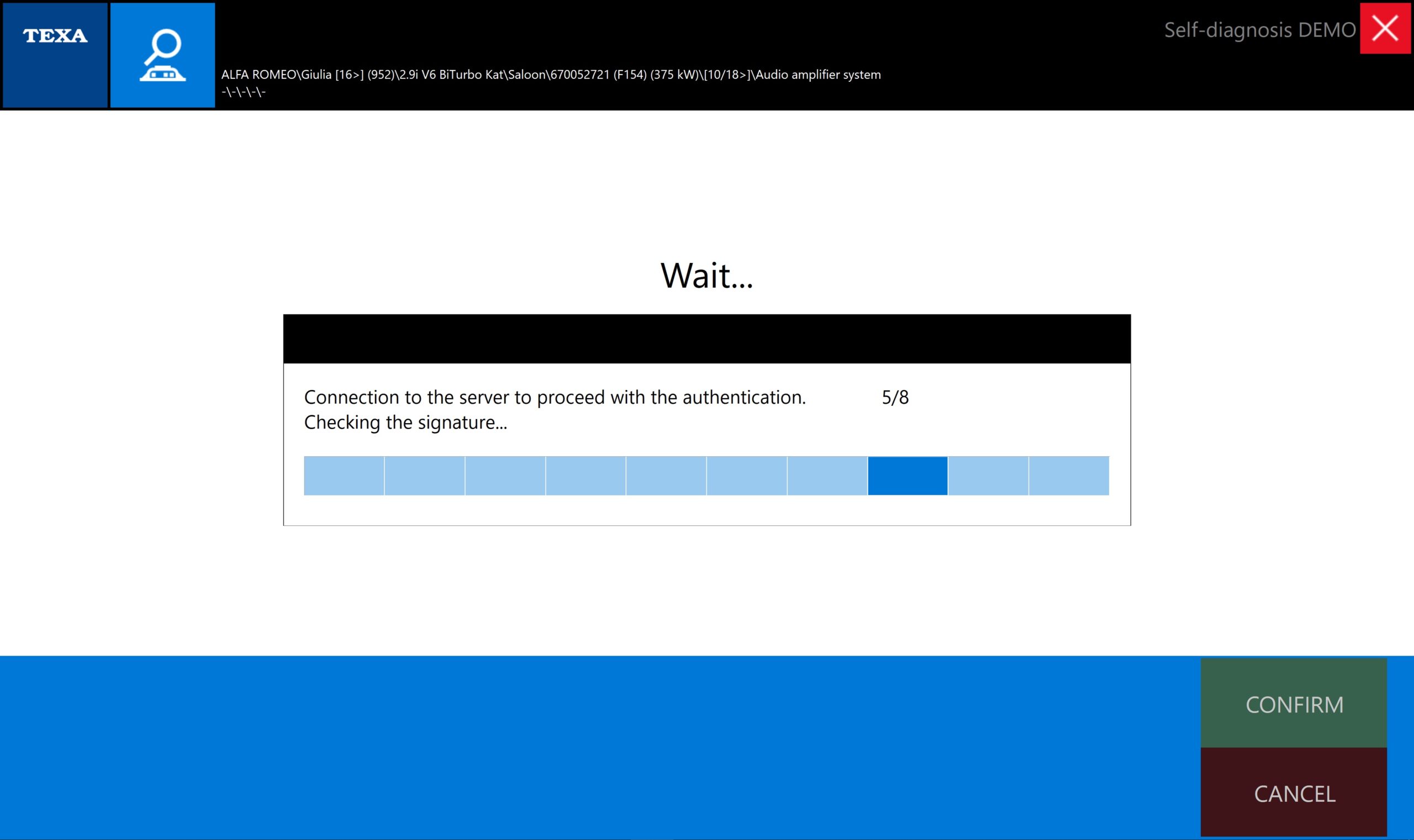

provides secure, direct access to OEM-protected vehicle systems, enabling advanced diagnostics and streamlined repairs.

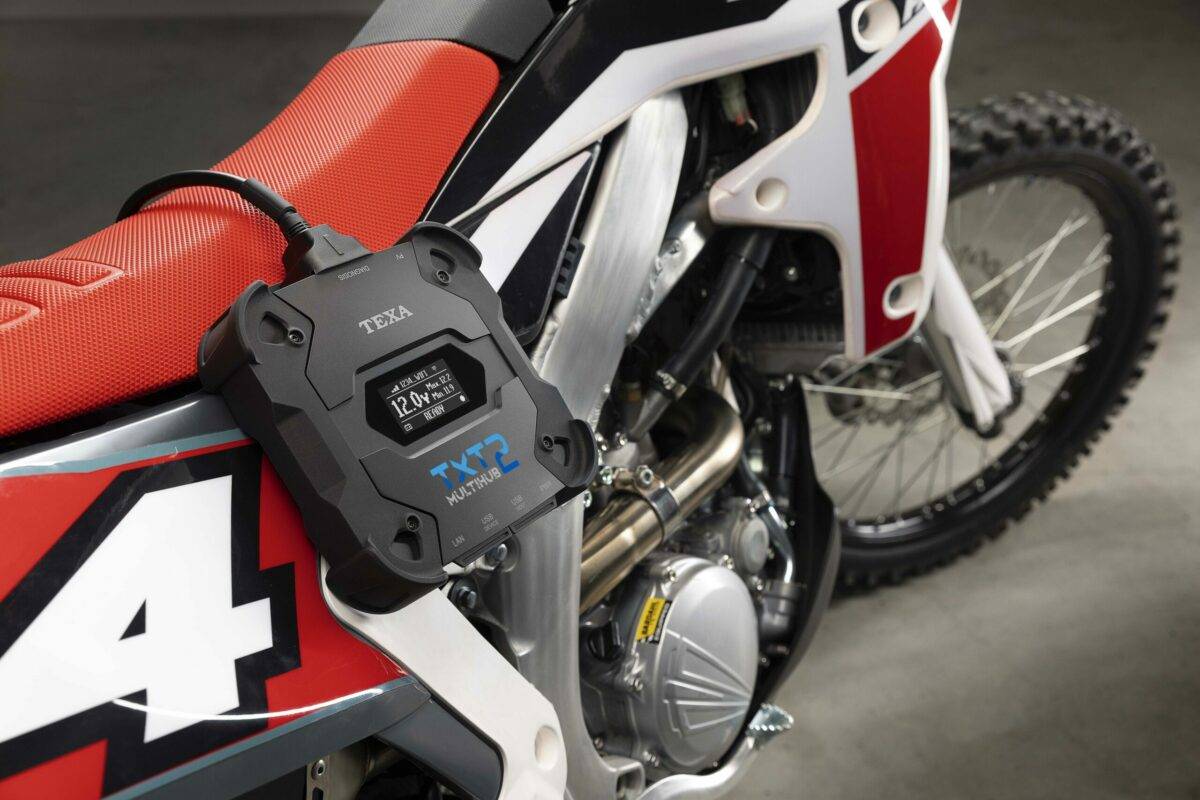

Extensive diagnostic support for a wide range of powersports vehicles, including motorcycles, ATVs, UTVs, and snowmobiles, ensuring complete service capability.

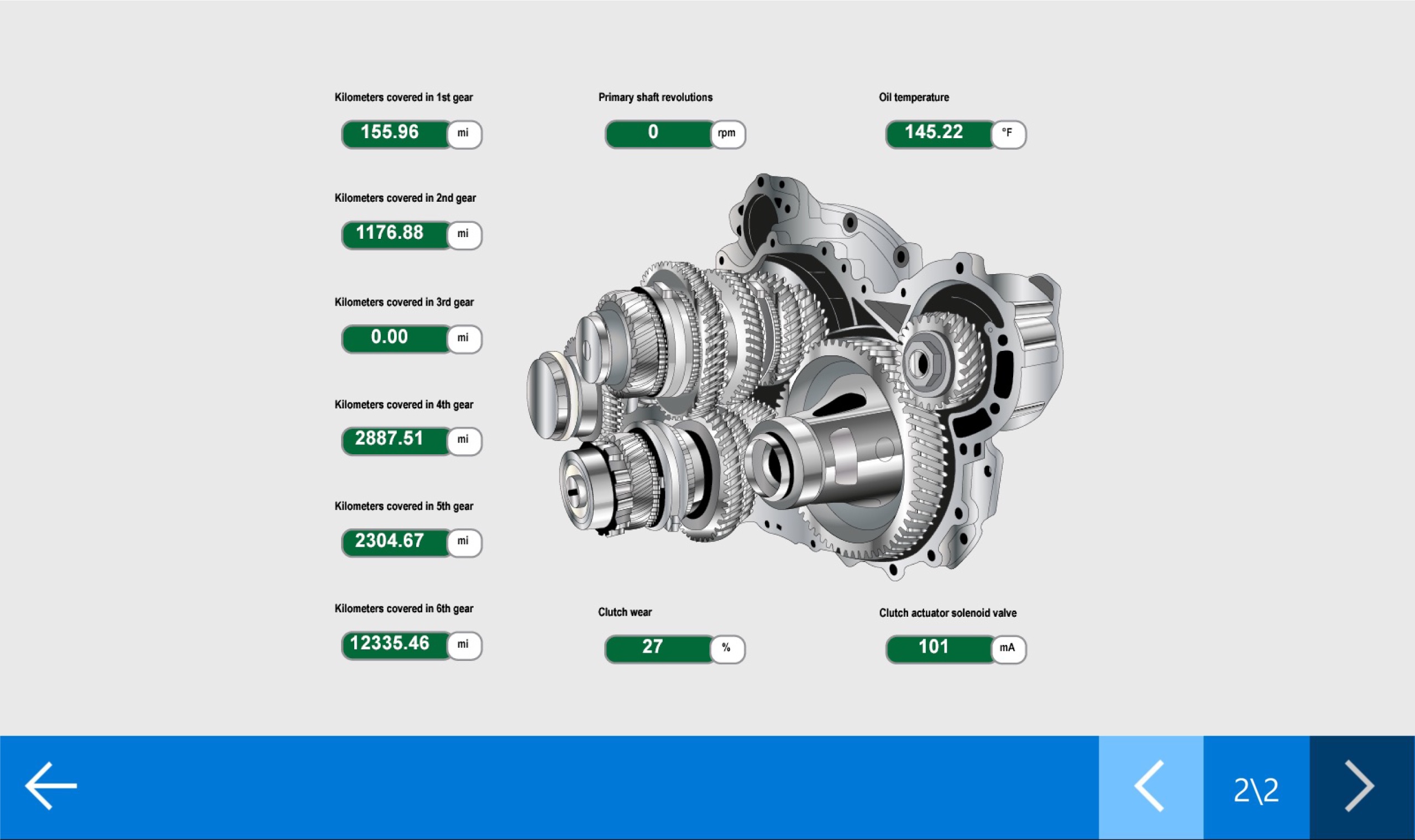

Provides a real-time, interactive view of essential vehicle parameters and diagnostics, enabling efficient monitoring and troubleshooting of system performance.
Offering real-time support for diagnosing, troubleshooting, and repairing vehicle systems, enabling technicians to navigate complex wiring and component layouts with improved accuracy and efficiency.

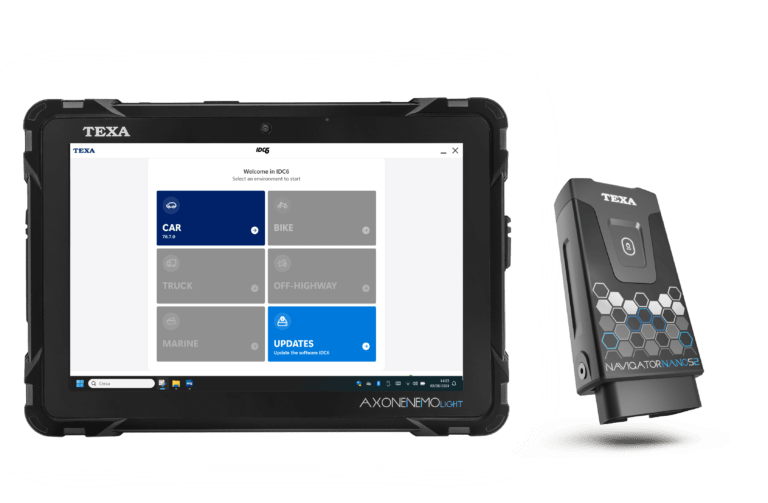

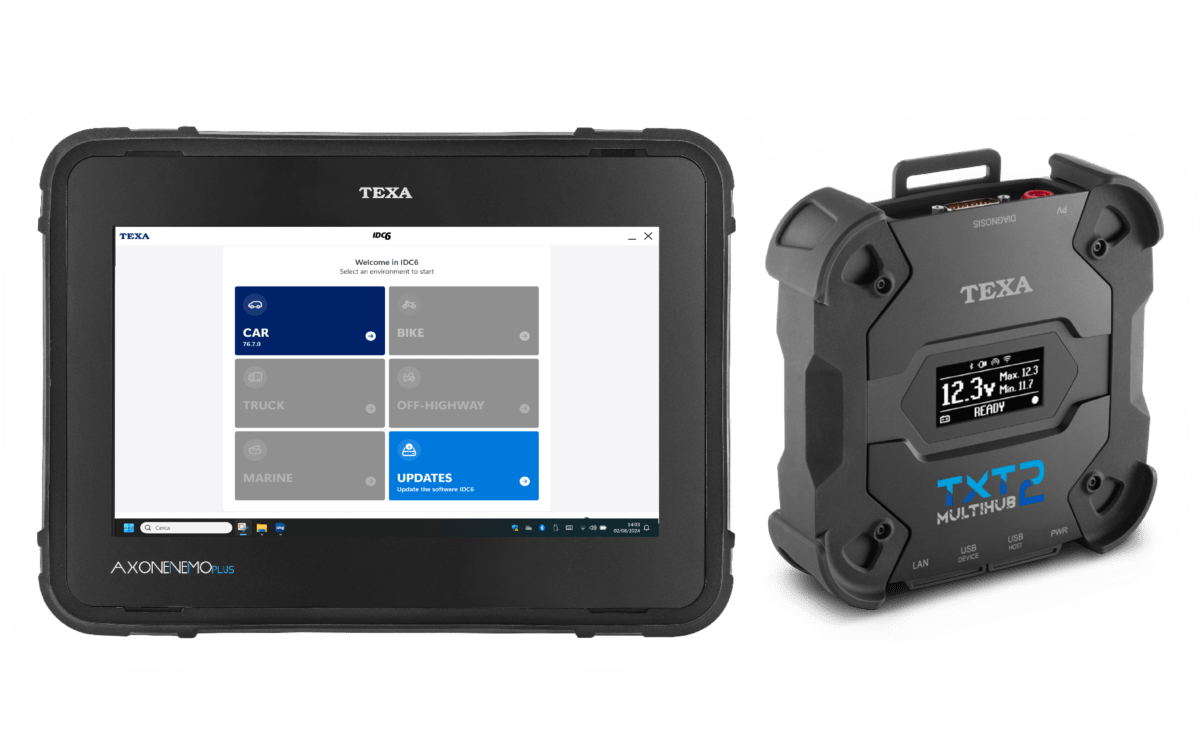

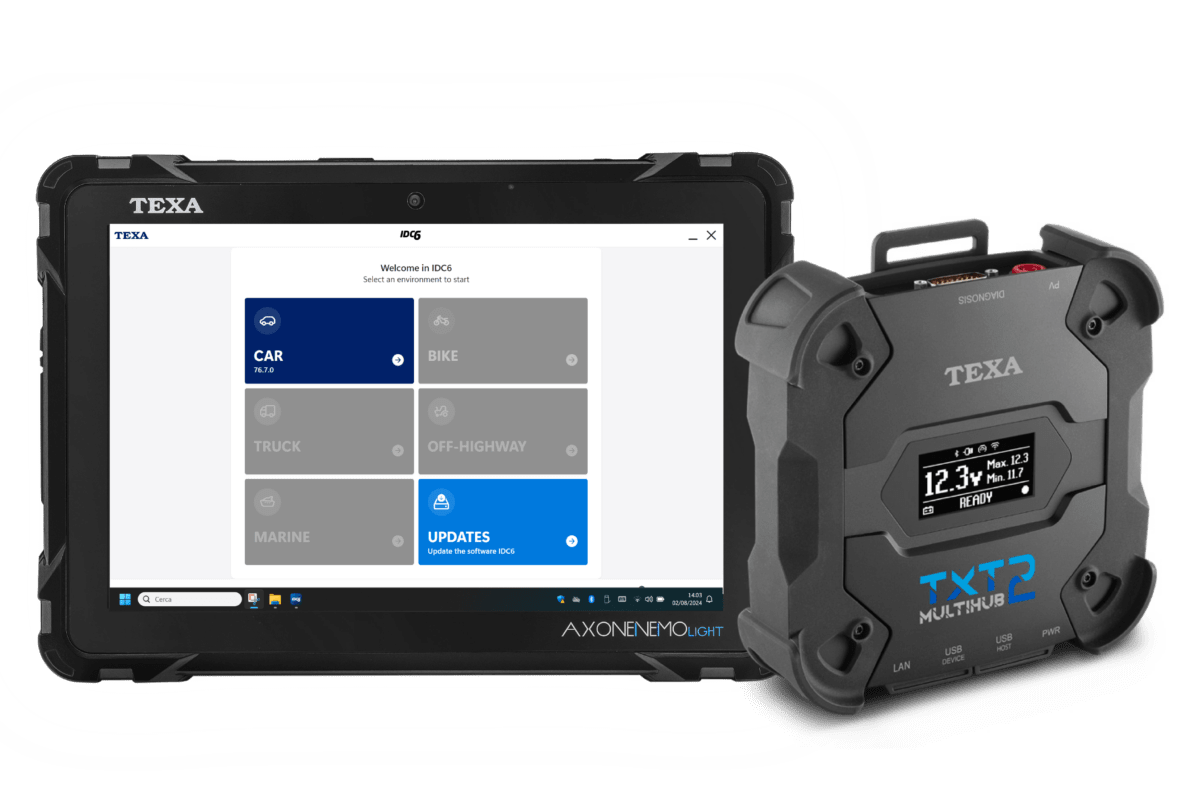

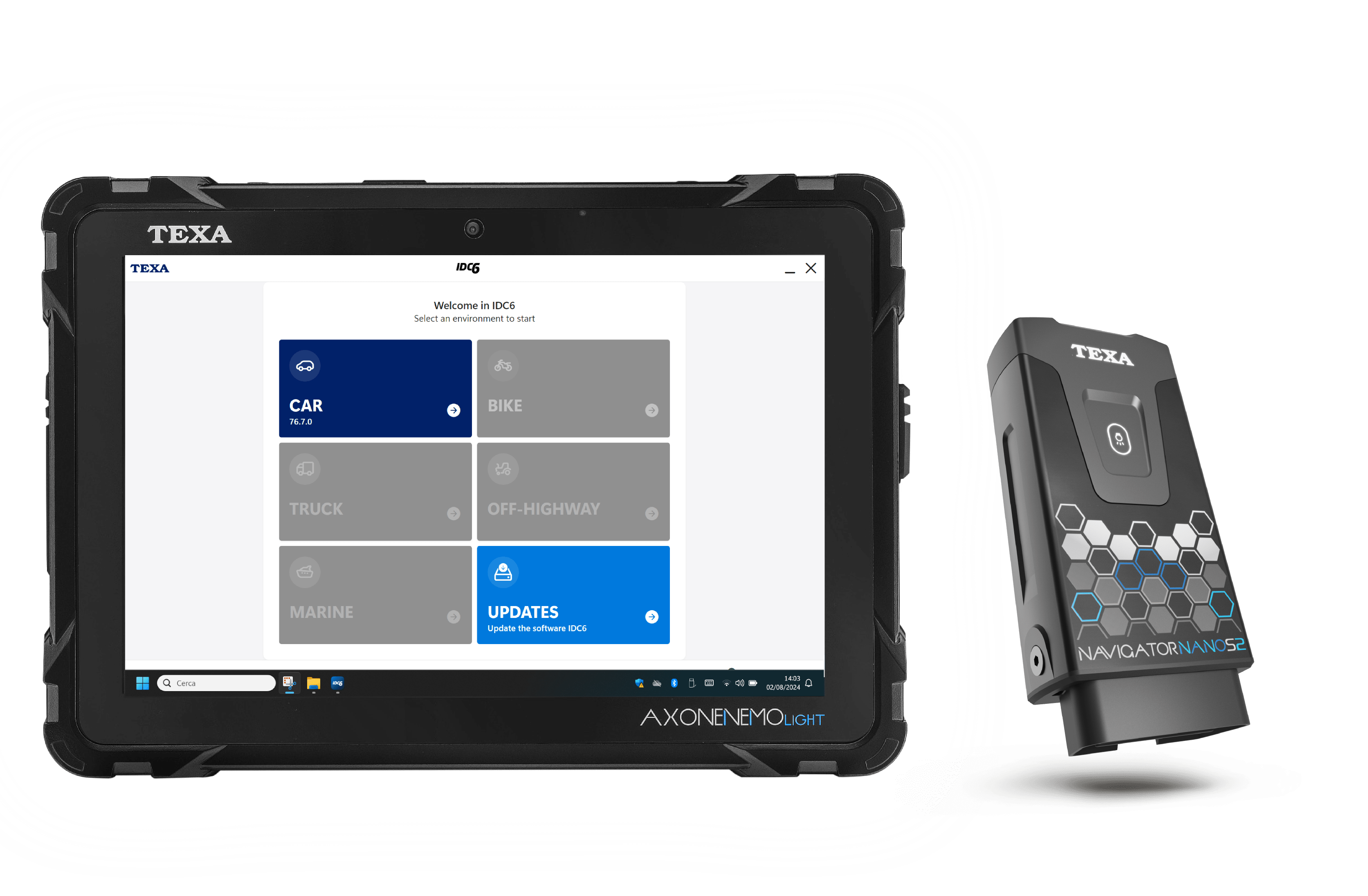

PROCESSOR
Intel© N100 with standard dissipation
RAM
8 GB DDR5
HARD DISK
250 GB with eMMC technology
BIOS
64 Mbit Flash ROM, AMI BIOS
OPERATING SYSTEM
Windows™ 11 IoT Enterprise
VIDEO PERIPHERAL DEVICES (built-in)
High-contrast ultra-wide view angle display;
Dimensions: 10.1”;
Resolution: 1920×1200 pixel;
High-sensitivity touch controller;
Fully laminated capacitive display.
AUDIO PERIPHERAL DEVICES (built-in):
2 speakers
WIRELESS PERIPHERAL DEVICES (built-in):
• Wi-Fi: 6 (802.11ax)
• Bluetooth: 5.2
I/O PERIPHERAL DEVICES
1 USB Type A 2.0
1 USB Type A 3.0
1 micro HDMI
CAMERAS
Front: 2 Mpixel
Rear: 5 Mpixel
LEDs
1 green LED (system status)
1 red LED (charging / power supply status)
ROBUSTNESS
Rugged design
INTERNAL BATTERY
Rechargeable Li-ion 7,4 Vdc; 44,4 Wh; 6000 mAh
EXTERNAL POWER SUPPLY
From external power adapter:
• Input: 100-240 Vac; 0.8 A; 50-60 Hz
• Output: 12 V – 3.0 A
ABSORPTION
12 Vdc (2Adc)
OPERATING TEMPERATURE
0 ÷ 40 °C
WARRANTY
1 year

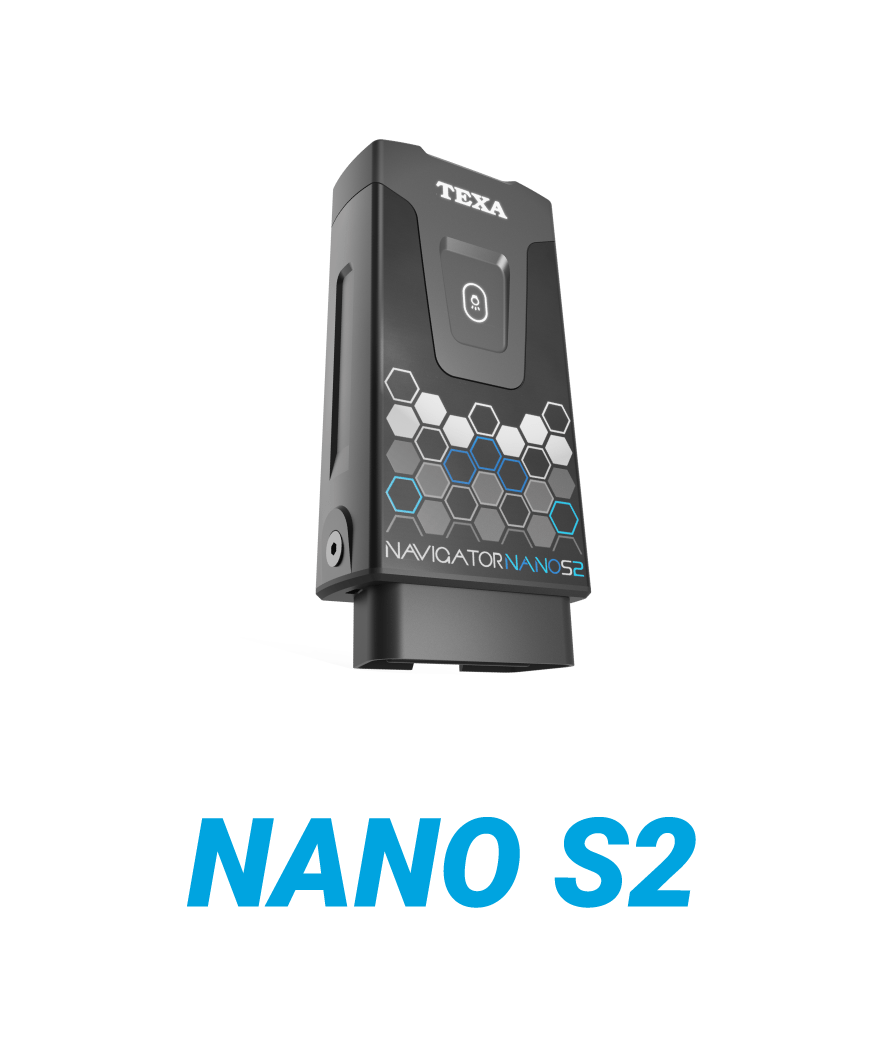

Processor: CORTEX M7 STM32H735AGI6 up to 550
MHz, 1MB FLASH, 564KB RAM
SRAM: 16 MBits organized in 1024K x 16 bits
eMMC: 8 GByte on an 8-bit bus
External Flash memory: 16 Mbit flash NOR organized as 1M x 16bit
Internal battery:
Lithium polymer, single cell
3.7 V 130 mA/h
LP401429-PCM-LD
Vehicle Battery: 12 Vdc system management
Nominal power supply voltage: OBD: 12 V direct voltage
Wireless communication: Bluetooth 5.0 class1
Operating frequency band: 2402 … 2480 MHz
Maximum radio frequency power transmitted: 10 dBm
Wired connection:
• Virtual COM Via USB Full Speed
• USB C: 5 V *
Electronic switch: 2-way, 13 independent positions
Diagnostic connector: OBD
Supported protocols:
• Blink codes
• K, L (with 60 mA current protection) ISO9141-2, ISO14230
• CAN_FD 11898-2:2016 3 channels
• CAN ISO 11898-3
• CAN SAE J2411 Single Wire
• SAE J1850 PWM e VPW
• Ethernet DoIP ISO13400-3
Power supply connector: OBD
User interface:
• LED RGB x4
• Buzzer
Consumption: 12 V direct voltage , 250 mA
Operating temperature: 0 °C … 40 °C
Storing temperature: -20 °C … 60 °C
Battery charging temperature: 0 °C … 45 °C
Operating moisture: 10% … 80% without condensation
Weight: 72 g
Environmental conditions:
• Use: internal and external
• Altitude: < 2000 m
• Supply voltage fluctuations: ±10%
• Overvoltage category: II
• Pollution degree: 2
• Maximum relative humidity 80% for temperatures up to 31 °C, linearly decreasing to 50% at 40 °C
Directives:
RED 2014/53/EU
RoHS 2011/65/EU and delegated Directive
2015/863/EU
Regulations:
Radio Equipment Regulation 2017 No. 1206
RoHS Regulation 2012 No. 3032
Electromagnetic compatibility:
ETSI EN 301 489-1
ETSI EN 301 489-17
Radio systems: ETSI EN 300 328
Electrical safety:
EN 62368-1
EN 62368-3
EN 62311
WARRANTY
1 year
