AXONE NEMO LIGHT MARINE
w/ cable kit

Discover the AXONE NEMO LIGHT
MARINE Package w/ Cable Kit

The comprehensive marine package.

TEXA Marine Software

The TEXA MARINE software includes advanced diagnostics for modern fuel management systems, fuel injection, and turbocharging, essential for performance and emissions. For newer hybrid or electric propulsion systems, TEXA offers diagnostic support for both battery systems and electric drivetrains.

ECU Diagnosis: The software allows users to read and clear fault codes from the engine’s ECU (Engine Control Unit) and other onboard control systems.

Live Data: It provides real-time data from various engine components and sensors, such as temperature, pressure, RPM, fuel consumption, and more, helping technicians monitor the engine’s performance.

Active Tests: Users can activate specific components or systems (e.g., fuel pumps, injectors, or cooling systems) to verify their operation.

Service Functions: The software includes features such as resetting service intervals, performing diagnostics on auxiliary systems (like air conditioning or trim systems), and recalibrating sensors.

All functions are supported by thousands of wiring diagrams, schematics, data sheets and repair procedures to guide the users through the whole process. All of these tools can help streamline maintenance and improve the efficiency of repairs, ultimately saving time and money.

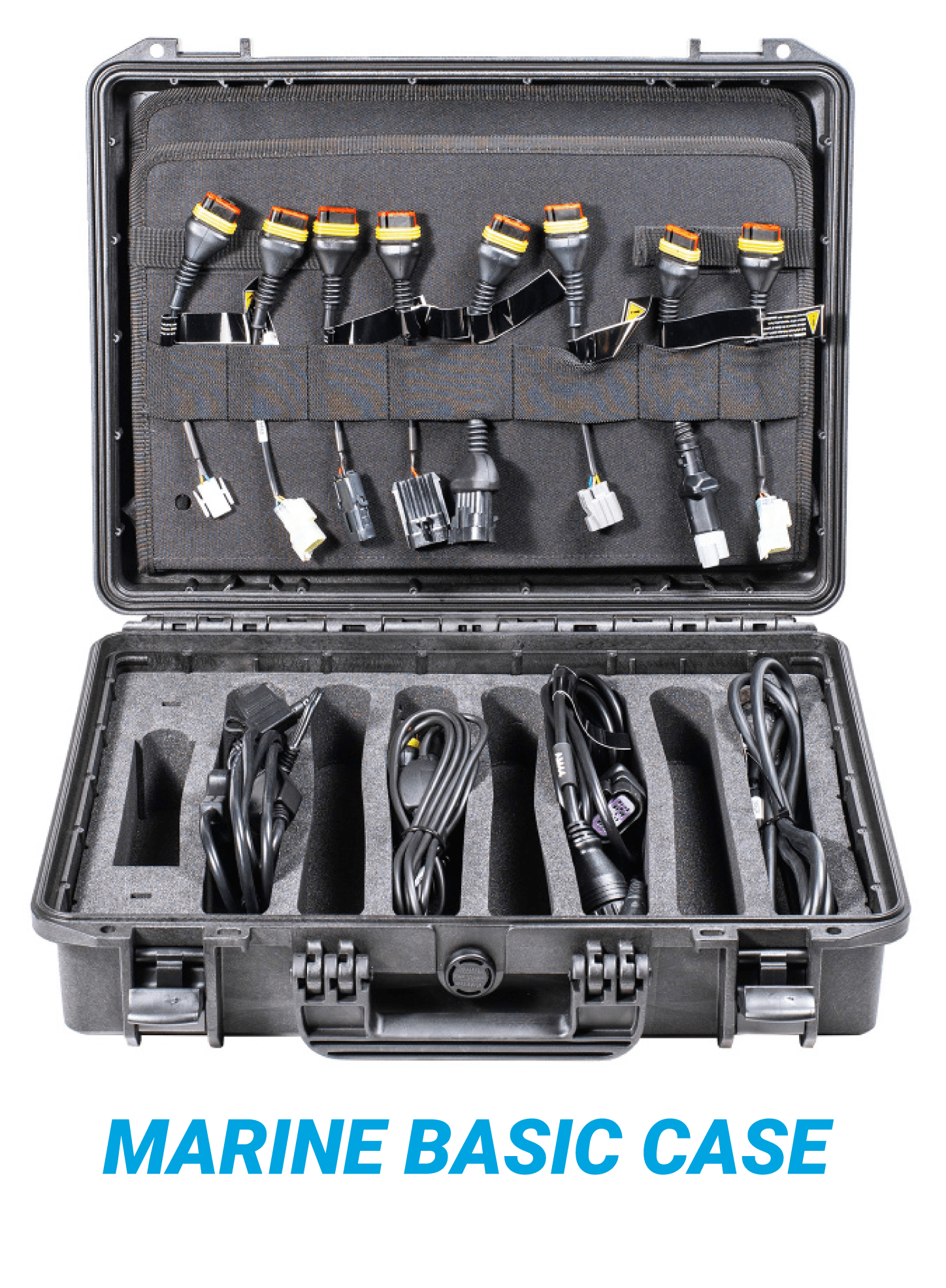

Please note: This kit includes a preset list of diagnostic adapters, technicians can add cables as needed.

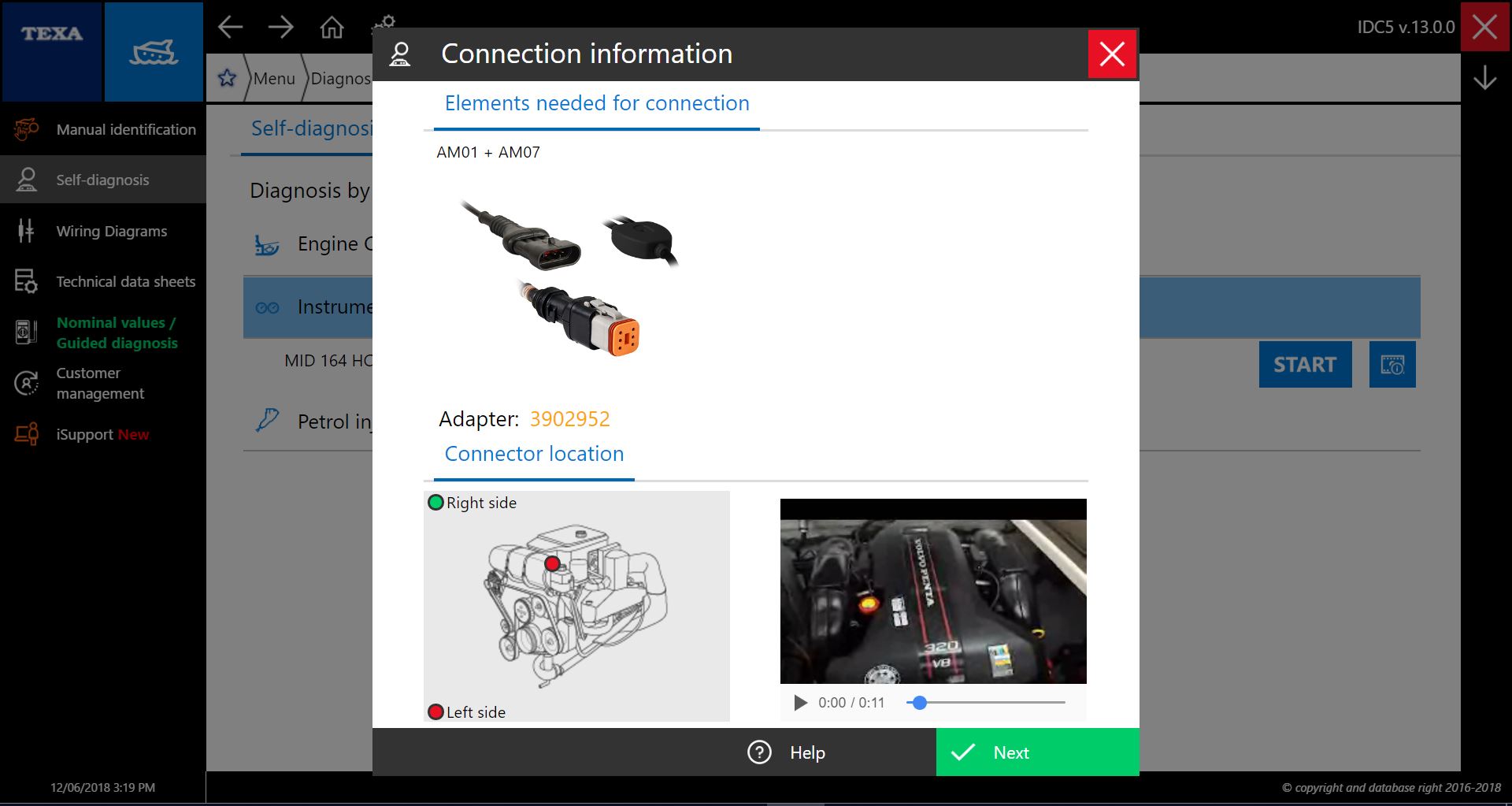

CONNECTION INFORMATION

Provides detailed instructions and visuals to ensure accurate connections between diagnostic tools and vehicle systems, minimizing errors and setup time.

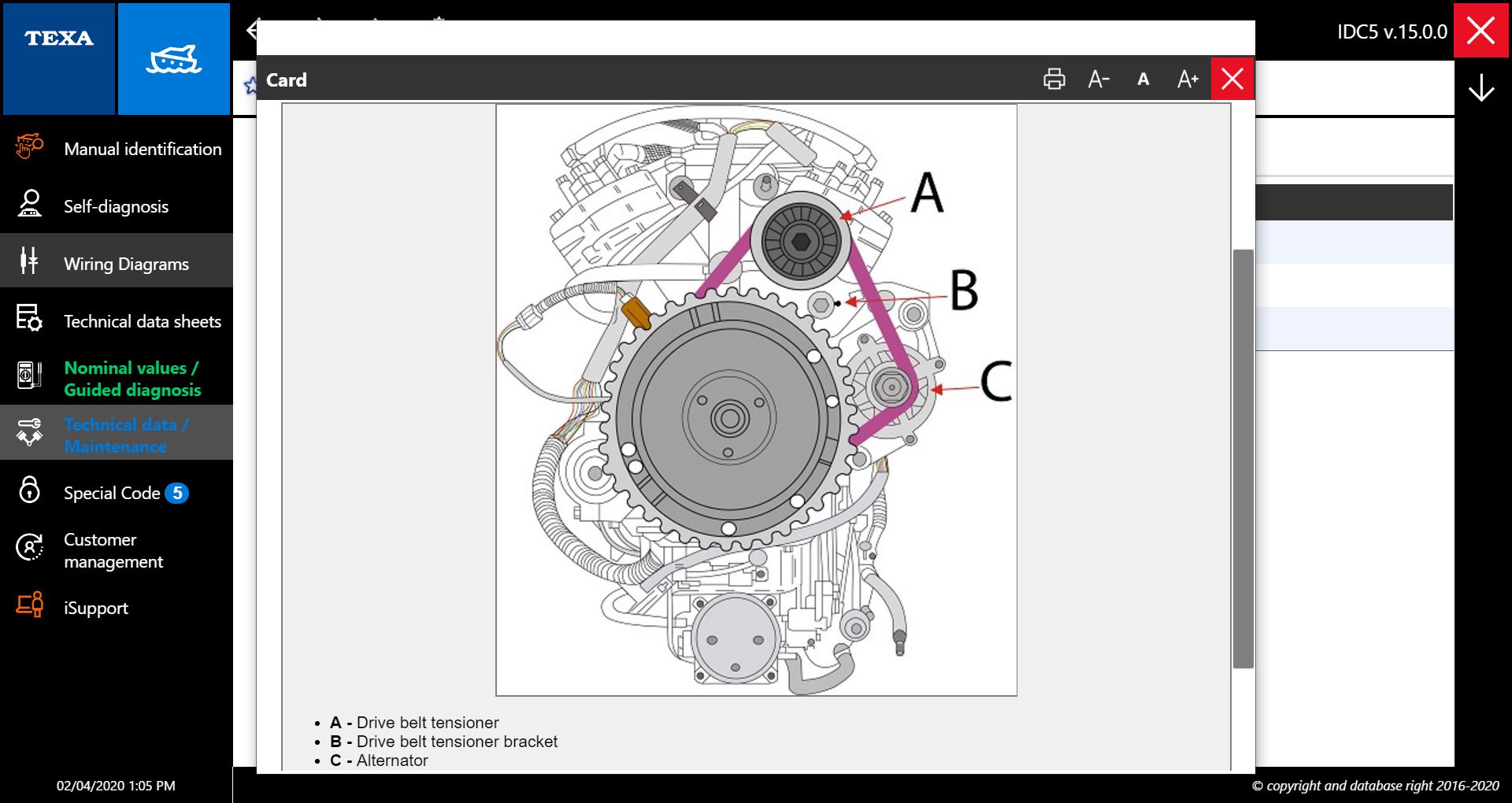

TECHNICAL DRAWINGS

Detailed technical drawings provide precise visual representations of vehicle components and systems, supporting accurate diagnostics and repairs.

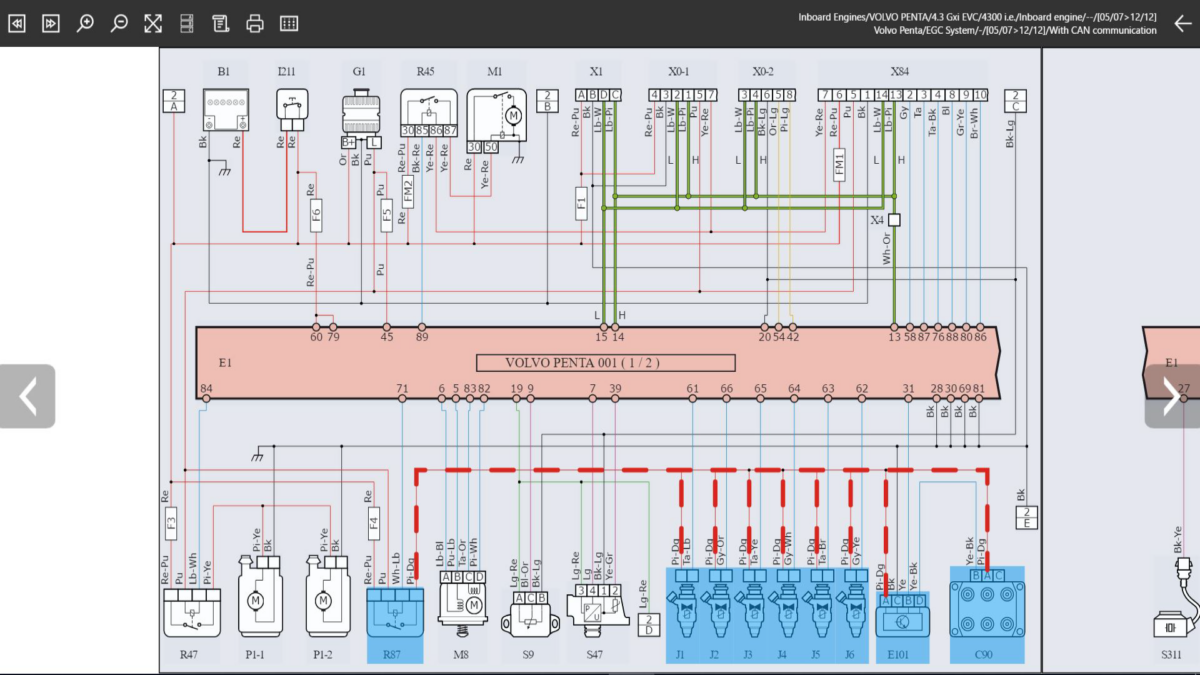

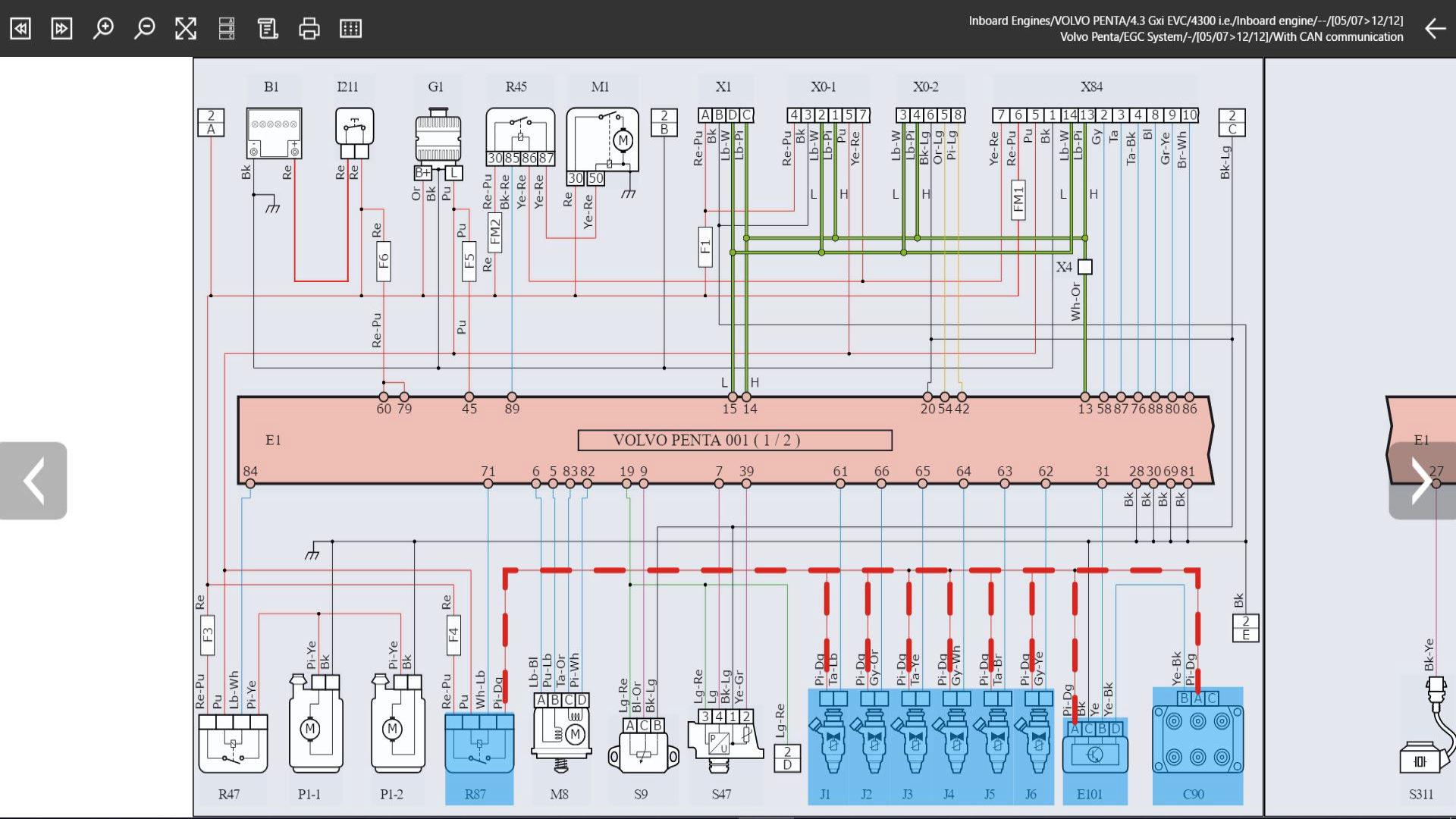

WIRING DIAGRAMS

Detailed and easy-to-read wiring diagrams help technicians pinpoint electrical faults, ensuring precise troubleshooting and repairs.

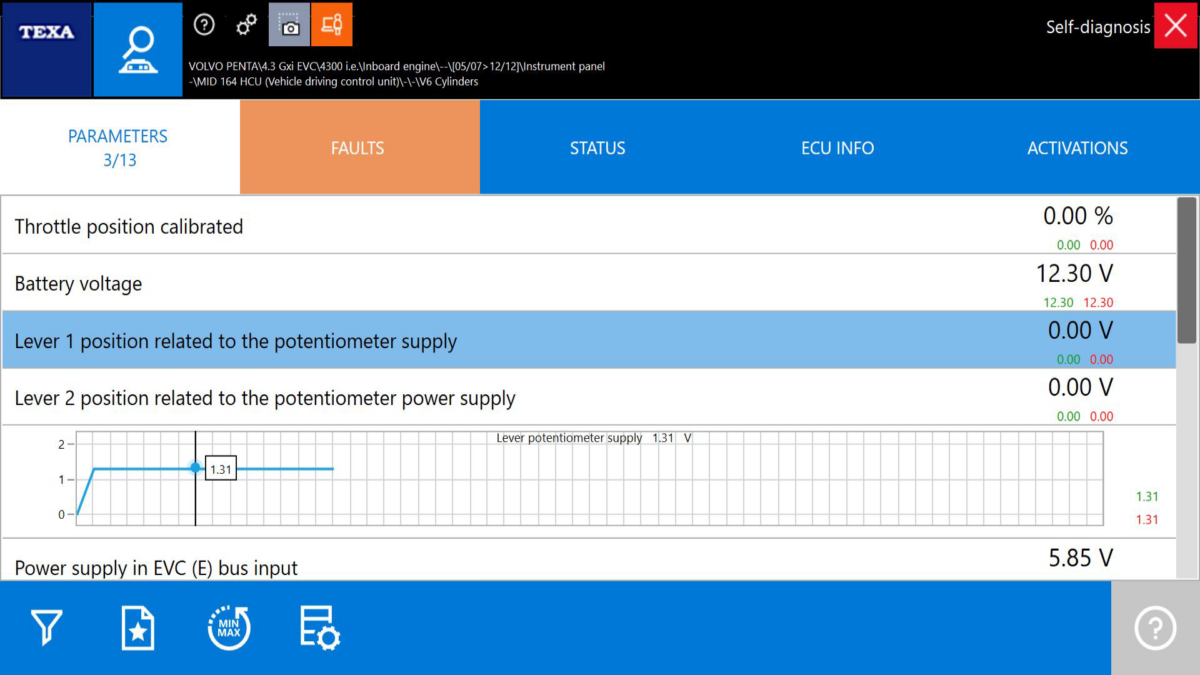

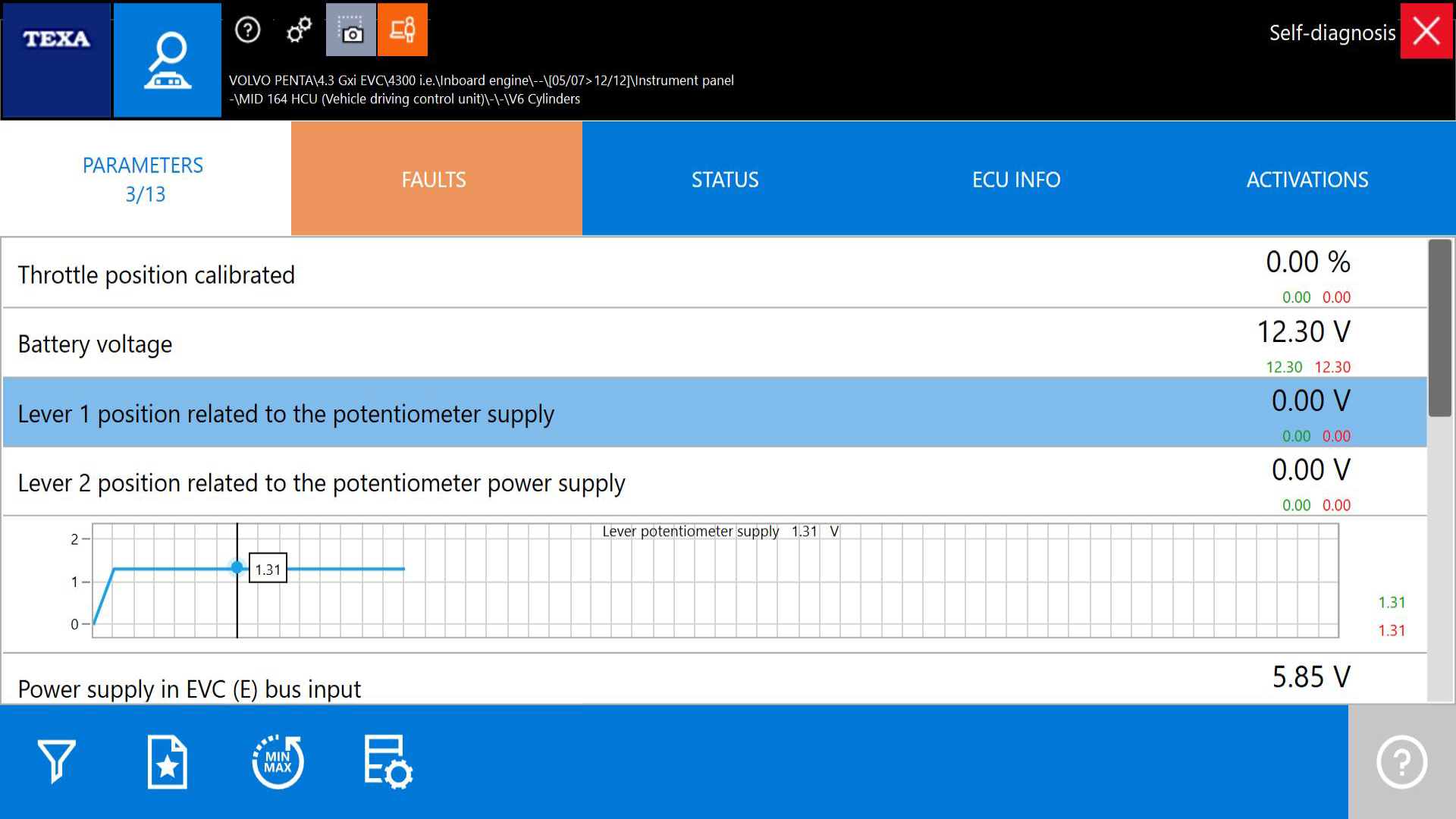

LIVE DATA

Real-time monitoring of vehicle parameters allows technicians to observe system performance, identify faults, and validate repairs with precision.

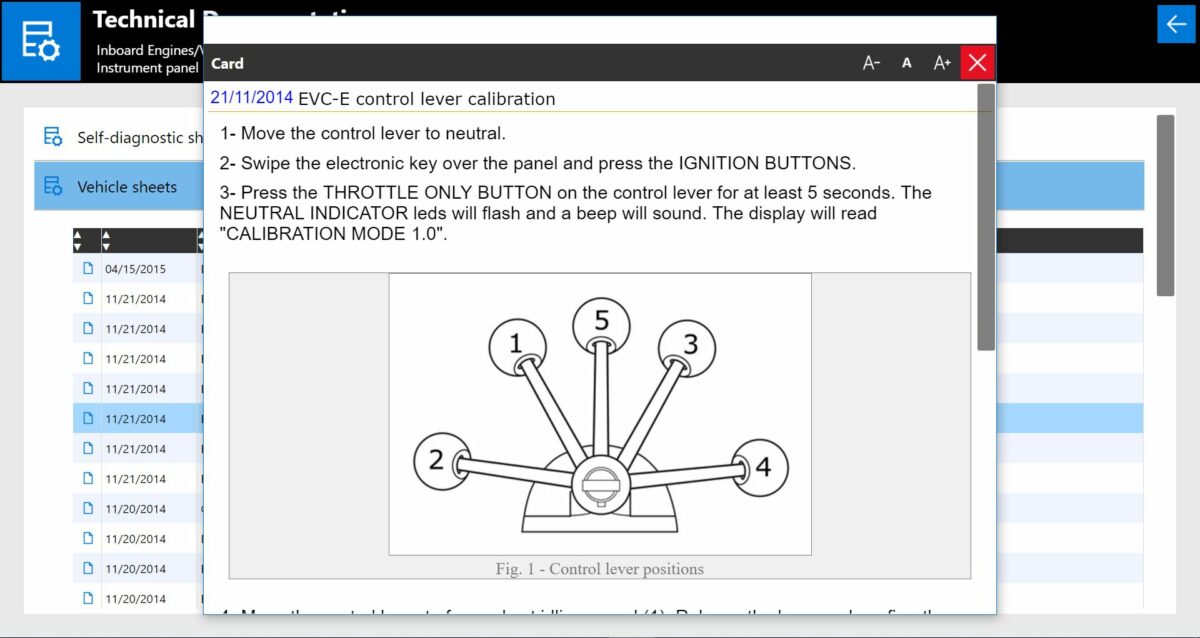

LEVER CALIBRATION

Ensures precise adjustment and functionality of control levers, critical for optimal performance and safety in various vehicle systems.

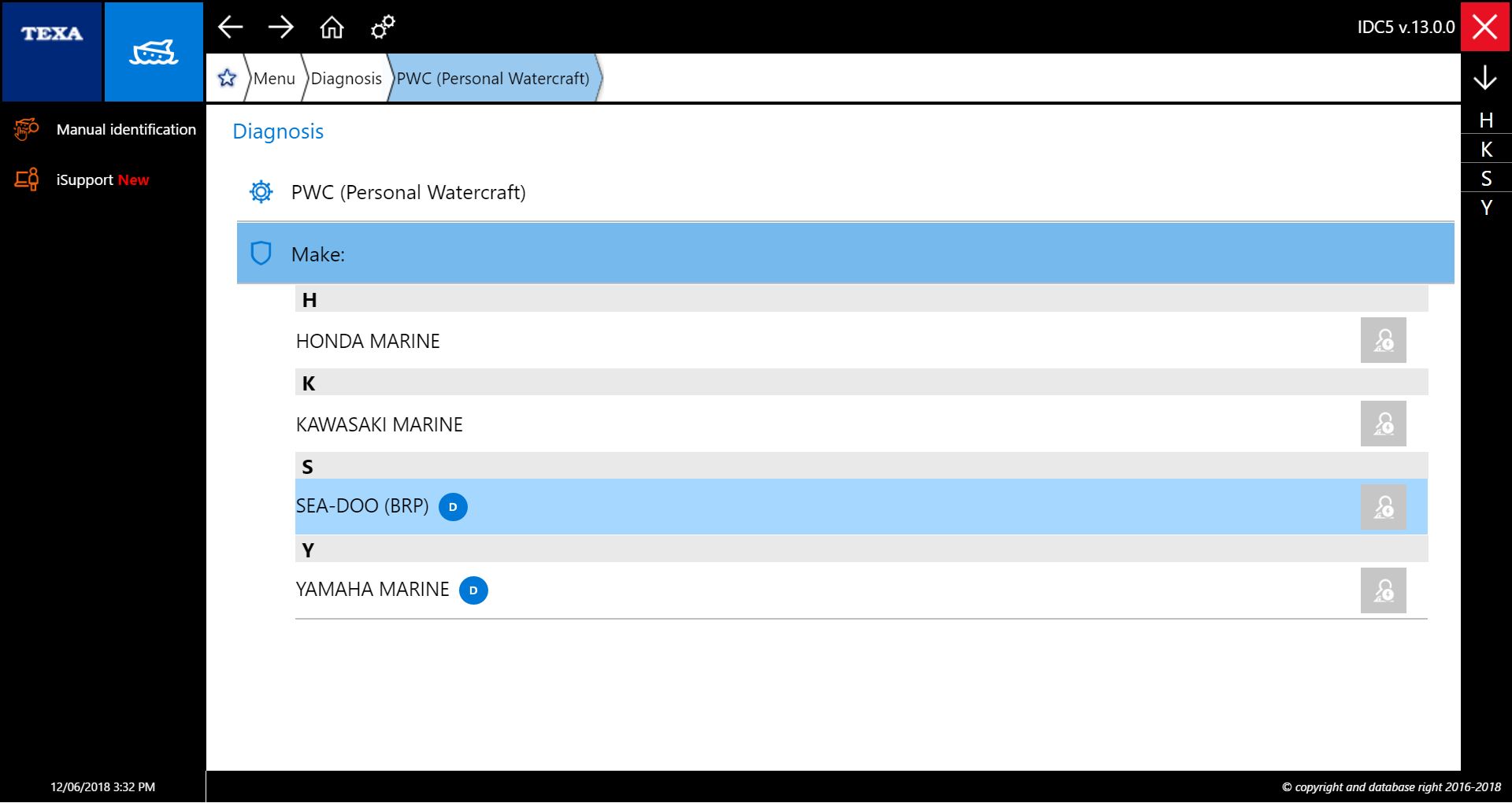

PWC SELECTION

Offers a comprehensive list of personal watercraft models, ensuring accurate selection and compatibility for diagnostics and maintenance.

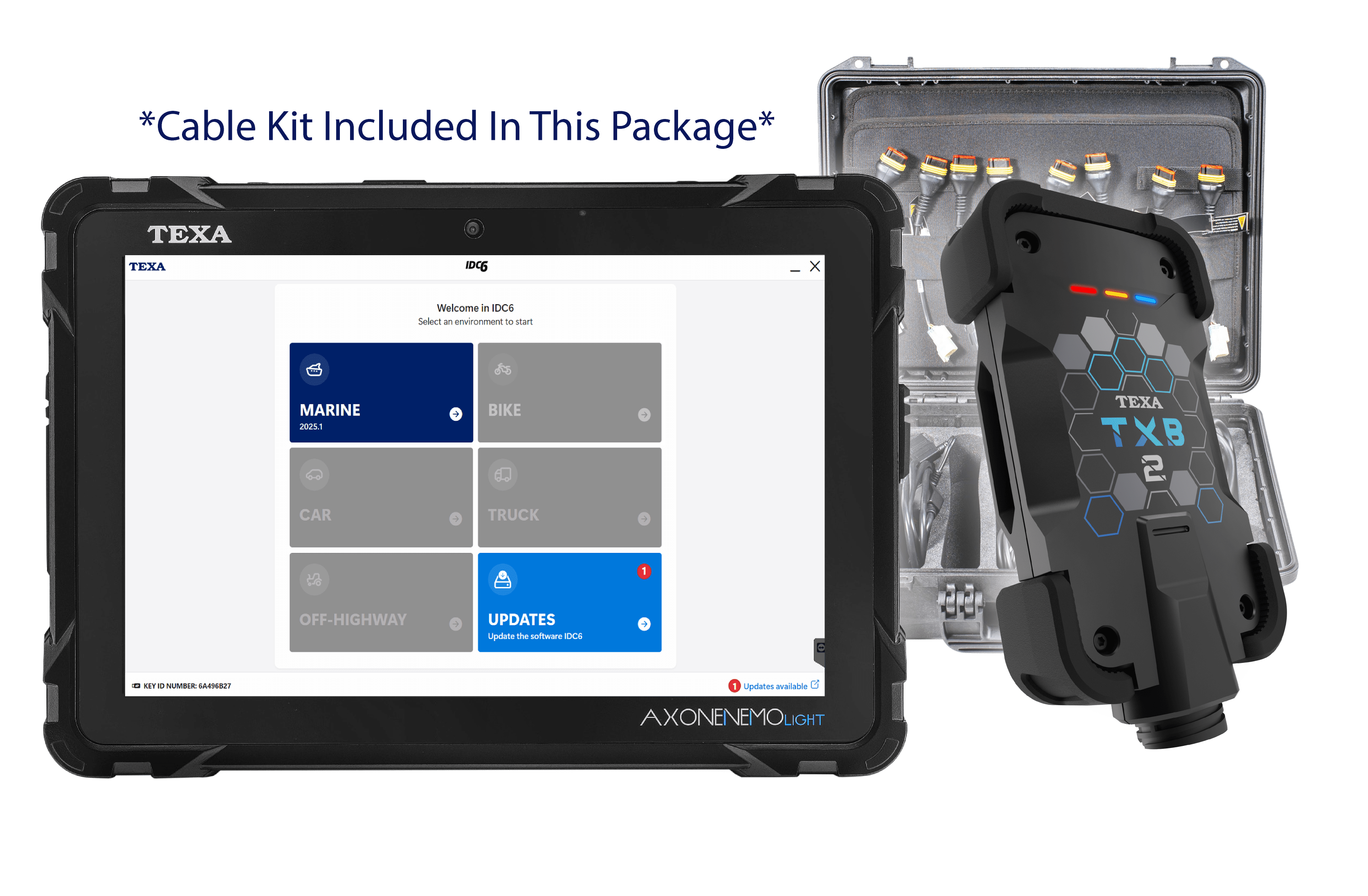

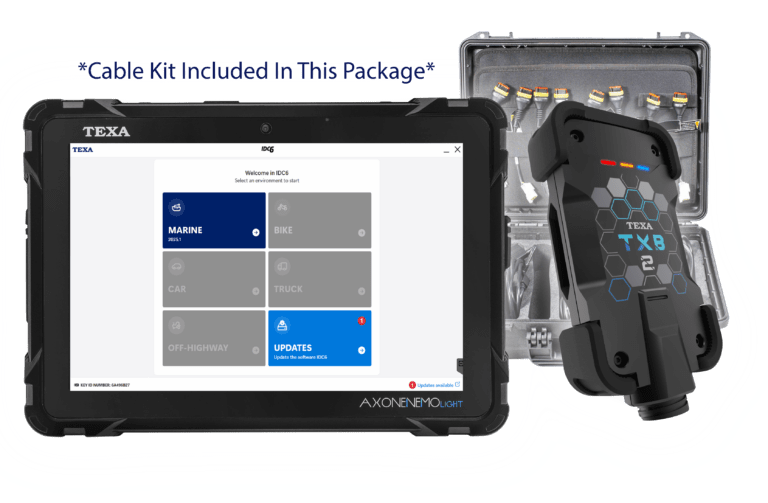

AXONE NEMO LIGHT MARINE PACKAGE CONTAINS

Technical Specifications

AXONE NEMO LIGHT TABLET

CLICK HERE FOR MORE INFORMATION

PROCESSOR
Intel© N100 with standard dissipation

RAM
8 GB DDR5

HARD DISK
250 GB with eMMC technology

BIOS
64 Mbit Flash ROM, AMI BIOS

OPERATING SYSTEM
Windows™ 11 IoT Enterprise

VIDEO PERIPHERAL DEVICES (built-in)
High-contrast ultra-wide view angle display;
Dimensions: 10.1”;
Resolution: 1920×1200 pixel;
High-sensitivity touch controller;
Fully laminated capacitive display.

AUDIO PERIPHERAL DEVICES (built-in):
2 speakers

WIRELESS PERIPHERAL DEVICES (built-in):
• Wi-Fi: 6 (802.11ax)
• Bluetooth: 5.2

I/O PERIPHERAL DEVICES
1 USB Type A 2.0
1 USB Type A 3.0
1 micro HDMI

CAMERAS
Front: 2 Mpixel
Rear: 5 Mpixel

LEDs
1 green LED (system status)
1 red LED (charging / power supply status)

ROBUSTNESS
Rugged design

INTERNAL BATTERY
Rechargeable Li-ion 7,4 Vdc; 44,4 Wh; 6000 mAh

EXTERNAL POWER SUPPLY
From external power adapter:
• Input: 100-240 Vac; 0.8 A; 50-60 Hz
• Output: 12 V – 3.0 A

ABSORPTION
12 Vdc (2Adc)

OPERATING TEMPERATURE
0 ÷ 40 °C

WARRANTY
1 year

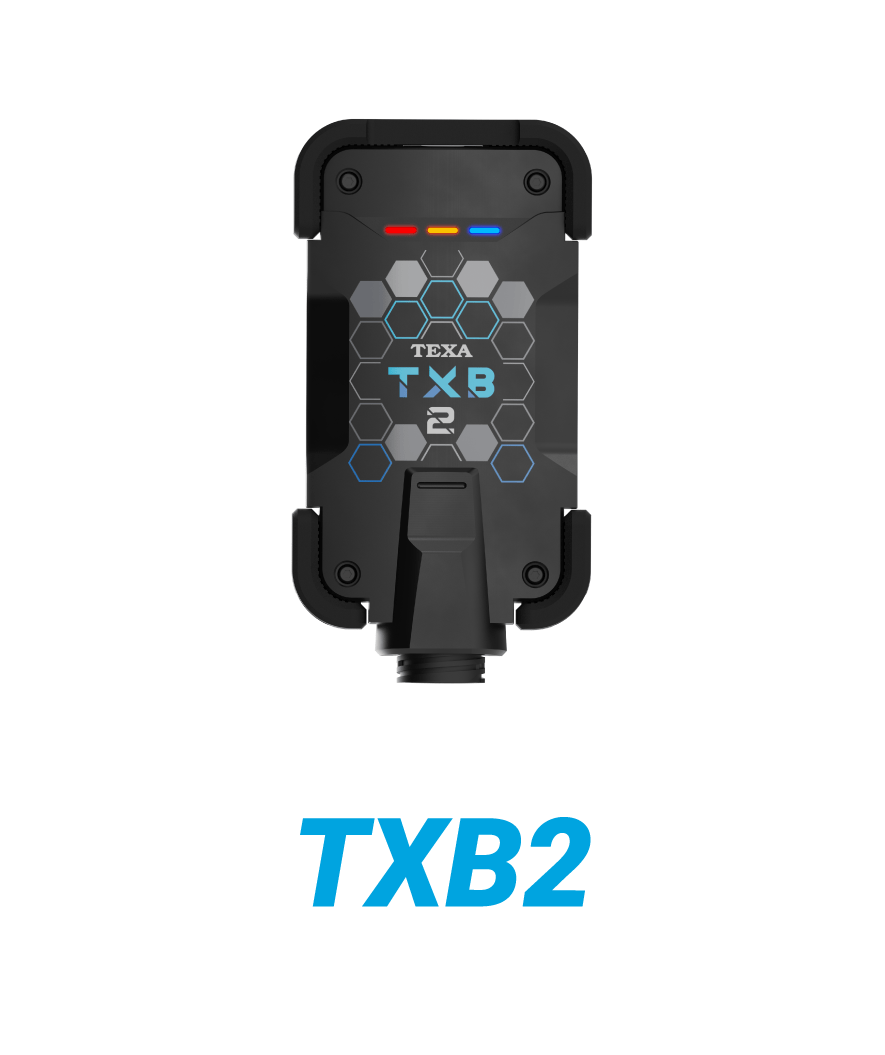

NAVIGATOR TXB2

CLICK HERE FOR MORE INFORMATION

PROCESSOR
CORTEX M7 STM32H735AGI6 up to 550 MHz, 1MB
FLASH, 564KB RAM

SRAM MEMORY
16 MBits organized in 1024K x 16 bits

SRAM
256 MBits organized in 4096K x 4 banks x 16 bits

eMMC MEMORY
8 GByte on an 8-bit bus

VEHICLE BATTERY
System management at 12 V and 24 V

EXTERNAL POWER SUPPLY
12 ÷ 24 V

USB COMMUNICATION
2.0 high speed 5 V / 500 mA

WIRELESS CONNECTION
Bluetooth 5.0 class1

OPERATIONAL BAND
2402 ÷ 2480 MHz

MAXIMUN RADIO FREQUENCY POWER TRANSMITTED
10 dBm

ELECTRONIC SWITCH
2-way, 13 independent positions

DIAGNOSTIC CONNECTOR
16-pin CPC

SUPPORTED PROTOCOLS
• Blink codes
• K, L (with current protection 100 mA),
ISO9141-2, ISO14230
• FD CAN 11898-2:2016 2 channels
• CAN ISO 11898-3 LOW Speed
• CAN SAE J2411 Single Wire
• SAE J1850 PWM
• SAE J1850 VPW
• SAE J1708
• RS232

VISIBLE WARNINGS
LED: RGB x3

12 V CONSUMPTION
300 mA

24 V CONSUMPTION
100 mA

OPERATING TEMPERATURE
0 ÷ 50 °C

STORAGE TEMPERATURE
– 20 ÷ 60 °C

OPERATING MOISTURE
10 ÷ 80 % without condensation

DIRECTIVES
RED 2014/53/EU
RoHS 2011/65/EU and Delegated Directive 2015/863/EU

SAFETY
EN 62368-1
EN 62311

ELECTROMAGNETIC COMPATIBILITY
EN 301 489-1
EN 301 489-17

RADIO SYSTEMS
EN 300 328

WEIGHT
215 g

WARRANTY
1 year
