AXONE NEMO LIGHT
OFF HIGHWAY

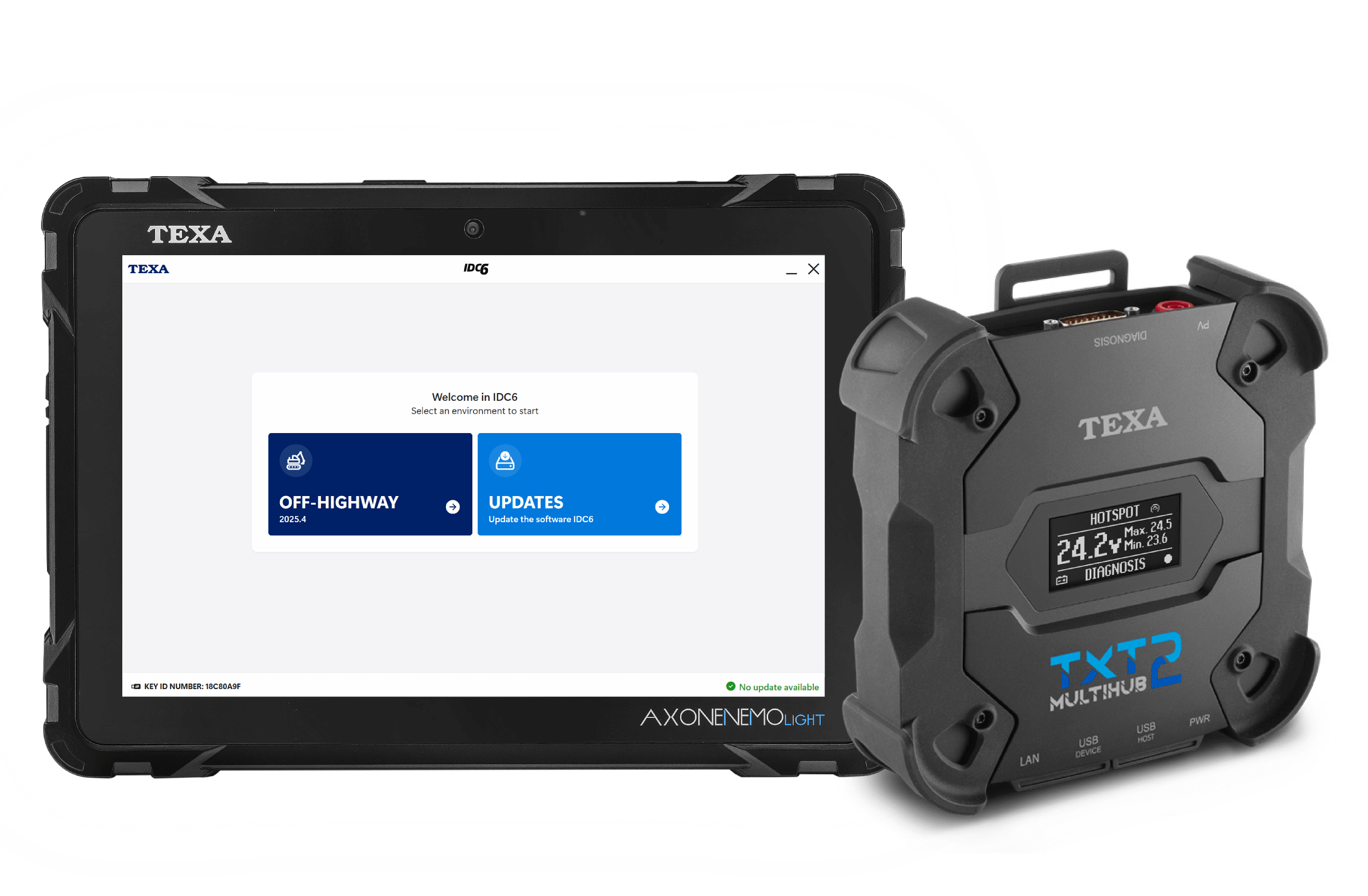

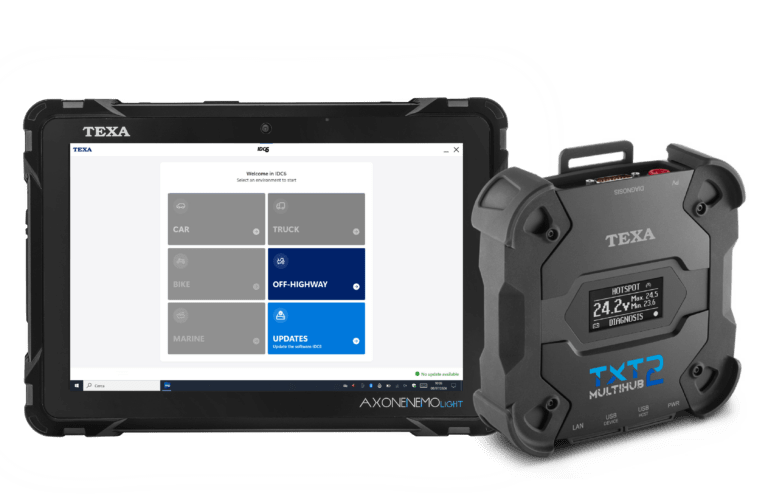

Discover the AXONE NEMO LIGHT
OFF HIGHWAY Package

The entry-level solution delivering expert results!

TEXA Off Highway LIGHT Software

Our OHW scan tools are highly regarded in the industry for their effectiveness, reliability, and comprehensive features tailored to the off-highway sector.

The brand new TEXA AXONE LIGHT OHW kit is the streamlined version of our full platform, designed for technicians and workshops who are just getting started. It’s easy to use, affordable, and built to grow with you.

Start simple, scale smart. Seamless upgrade paths make it easy to scale as your needs evolve.

The OHW LIGHT software delivers the core functionality of our full platform in a lightweight, cost-effective package. This new solution includes all essential features to work on engines, it allows monitoring and diagnosing all kinds of engines, including monitoring fuel injection, turbochargers, and emissions systems (such as DPF regeneration).

All functions are supported by thousands of wiring diagrams, schematics, data sheets and repair procedures to guide the users through the whole process.

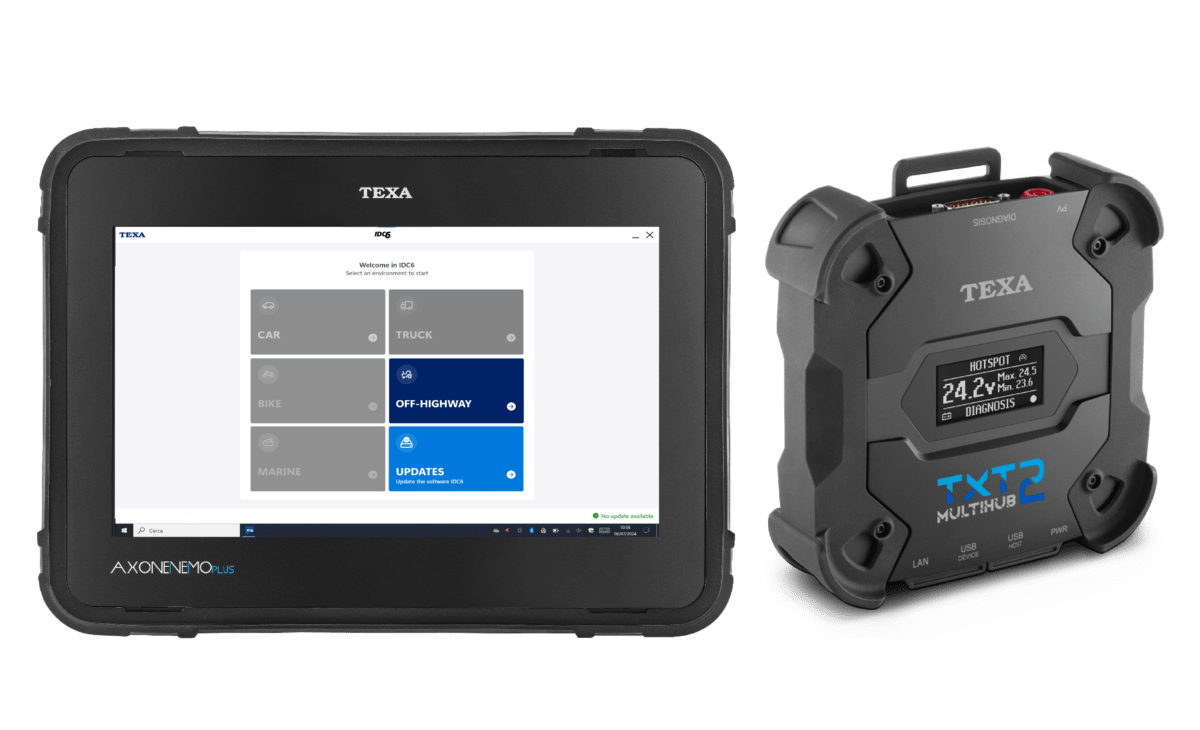

The AXONE NEMO LIGHT OHW does not include coverage on hydraulics, transmission, AC or other secondary systems. To have full coverage please consider the AXONE NEMO PLUS OHW or the AXONE VOICE OHW diagnostic kits.

WIRING DIAGRAMS

Access interactive wiring diagrams and detailed technical documents to support accurate diagnostics and component-level repairs.

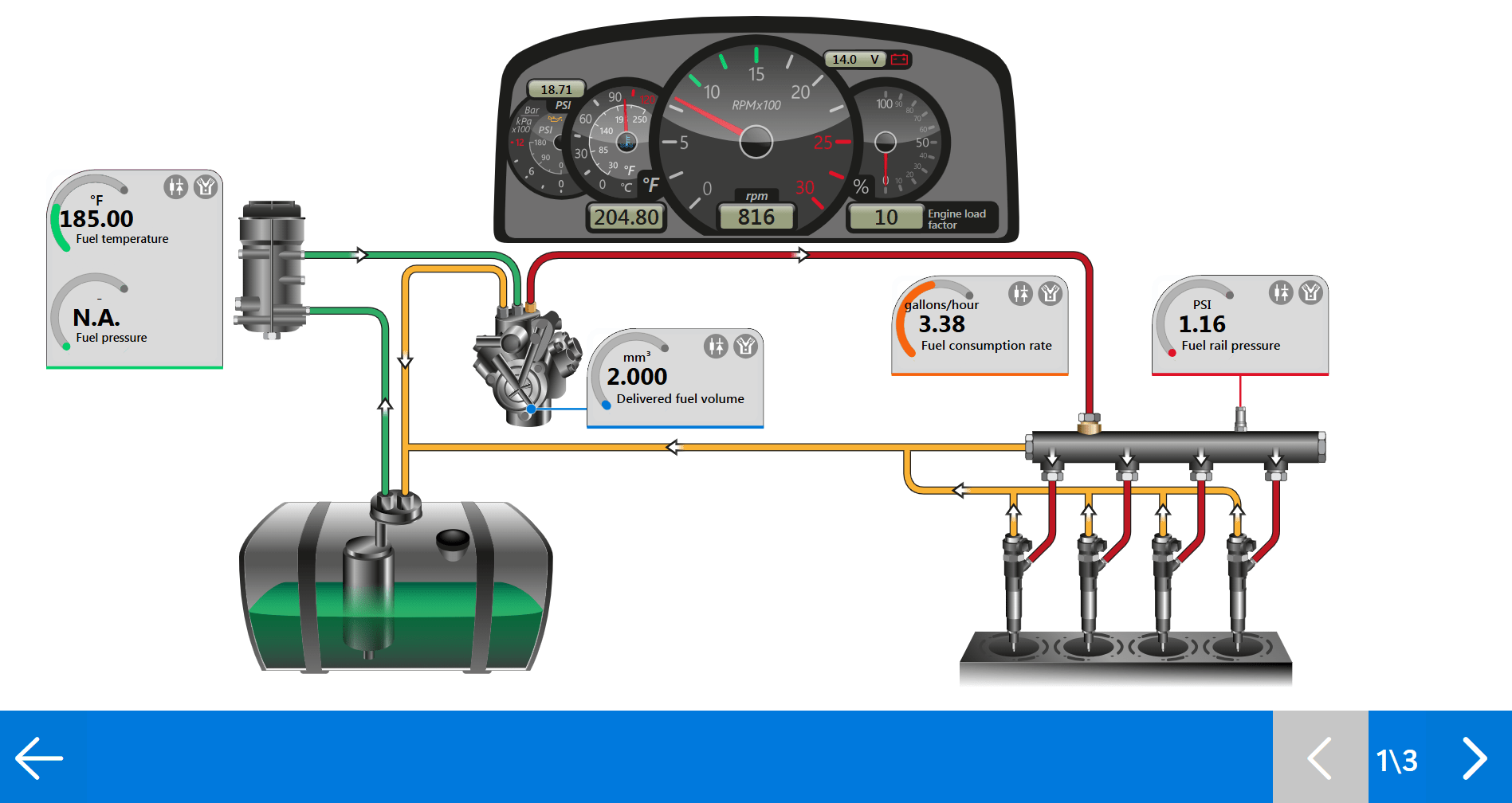

Steer Engine Data

Access live engine parameters, fault codes, and system tests for efficient diagnostics and repair of Cat skid steer engines.

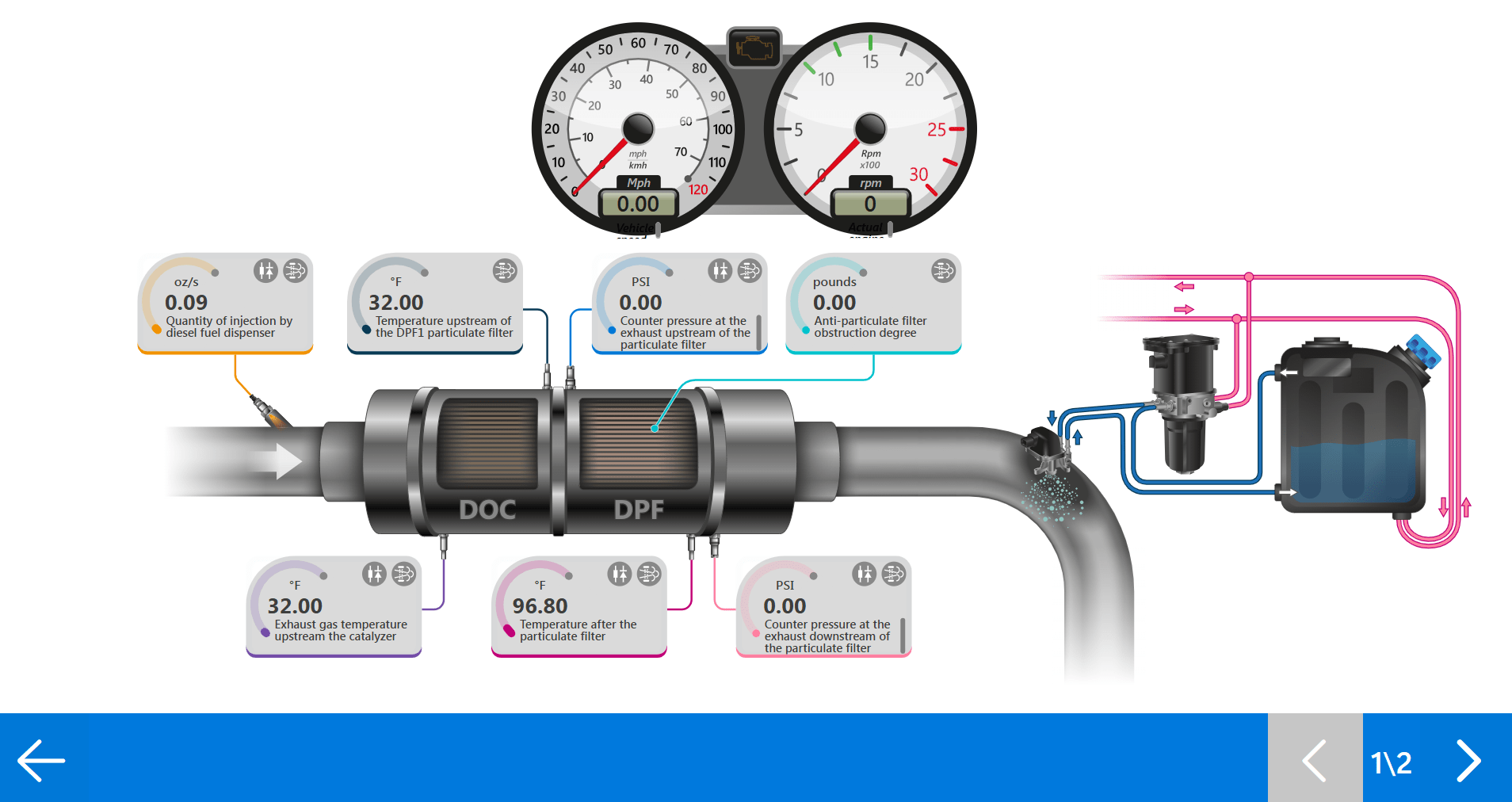

Diesel Particulate Filter data

Perform regeneration, check soot levels, and monitor DPF status to keep JCB equipment running clean and compliant.

REAR HYDRAULICS

Run diagnostics and perform functional tests on rear hydraulic systems in equipment to maintain optimal lifting performance.

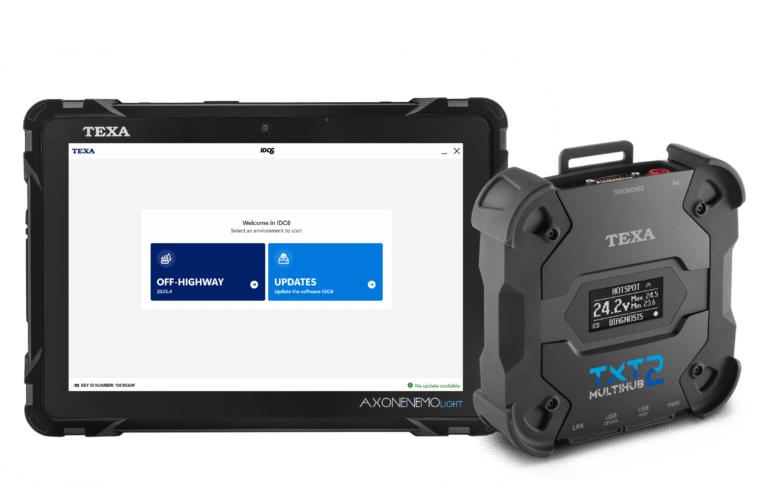

AXONE NEMO LIGHT OFF HIGHWAY PACKAGE CONTAINS

Technical Specifications

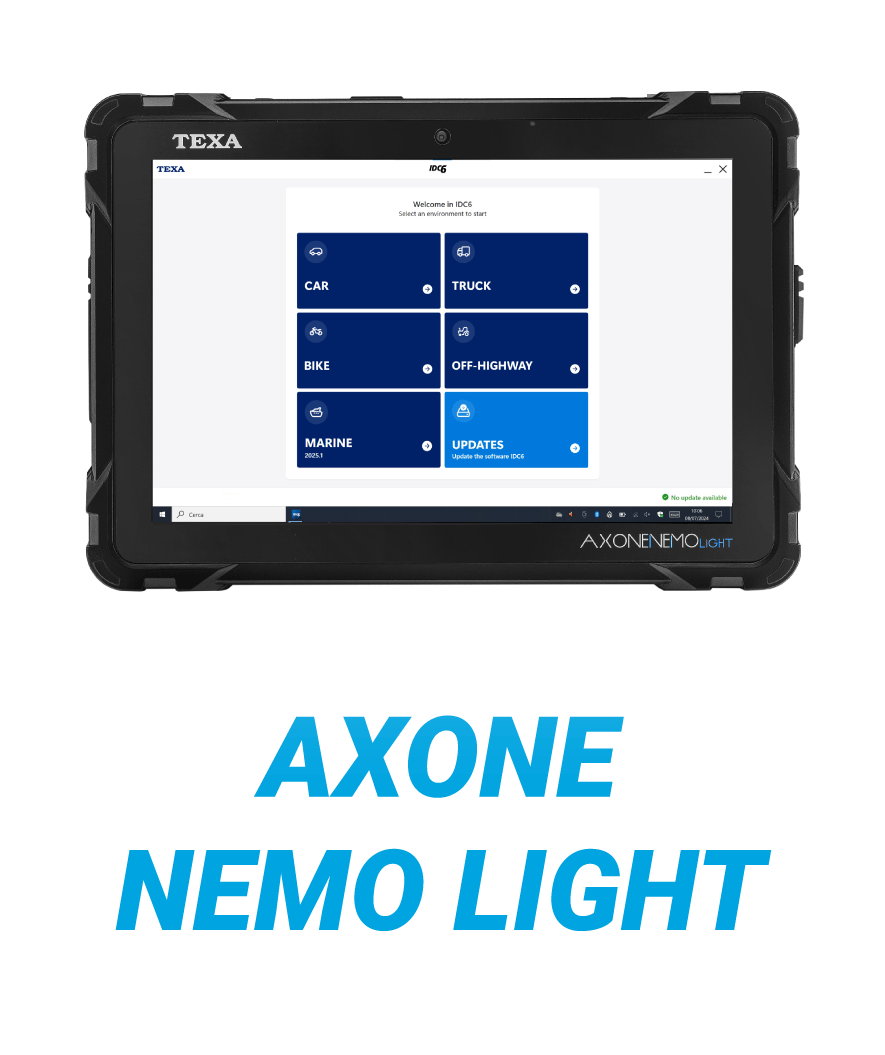

AXONE NEMO LIGHT TABLET

CLICK HERE FOR MORE INFORMATION

PROCESSOR
Intel© N100 with standard dissipation

RAM
8 GB DDR5

HARD DISK
250 GB with eMMC technology

BIOS
64 Mbit Flash ROM, AMI BIOS

OPERATING SYSTEM
Windows™ 11 IoT Enterprise

VIDEO PERIPHERAL DEVICES (built-in)
High-contrast ultra-wide view angle display;
Dimensions: 10.1”;
Resolution: 1920×1200 pixel;
High-sensitivity touch controller;
Fully laminated capacitive display.

AUDIO PERIPHERAL DEVICES (built-in):
2 speakers

WIRELESS PERIPHERAL DEVICES (built-in):
• Wi-Fi: 6 (802.11ax)
• Bluetooth: 5.2

I/O PERIPHERAL DEVICES
1 USB Type A 2.0
1 USB Type A 3.0
1 micro HDMI

CAMERAS
Front: 2 Mpixel
Rear: 5 Mpixel

LEDs
1 green LED (system status)
1 red LED (charging / power supply status)

ROBUSTNESS
Rugged design

INTERNAL BATTERY
Rechargeable Li-ion 7,4 Vdc; 44,4 Wh; 6000 mAh

EXTERNAL POWER SUPPLY
From external power adapter:
• Input: 100-240 Vac; 0.8 A; 50-60 Hz
• Output: 12 V – 3.0 A

ABSORPTION
12 Vdc (2Adc)

OPERATING TEMPERATURE
0 ÷ 40 °C

WARRANTY
1 year

TXT MULTIHUB 2

CLICK HERE FOR MORE INFORMATION

Main processor:
• Type: iMX6 1 GHz
• RAM: 512 MByte
• Mass Storage: eMMC 8 GByte

Coprocessor:
• Type: STM32F439 168 MHz
• RAM: 2 MByte SRAM, 8 MByte SDRAM
• Flash: 2 MByte

Power supply connector: PWR: 2.1 DC jack

Power supply: 12 – 24 Vdc (from vehicle battery via OBD connector or specific wirings)

Consumption: 1 A @12 V max

USB connectors:
• USB: USB 2.0 host type A max 1 A out
• USB DEVICE: USB 2.0 device type B (priority connector)

Bluetooth communication: Bluetooth 5.0 (BDR/EDR/LE)

WiFi communication: WiFi IEEE 802.11 b/g/n 2.4GHz

Operational band: 2400 ÷ 2483.5 MHz

Maximum radio frequency power transmitted: 10 dBm (2400 ÷ 2483,5 MHz)

Diagnostic connectors:
• DIAGNOSIS: DSUB-26HD (ISO 22900-1)
• DoIP: RJ45 (UDP/TCP 13400)

Electronic switch: 2-way, 13 independent positions

Control units reprogramming connector: PV (SAE J2534-1)

User interface: Display OLED 64×128 dot

Operating temperature: 0 ÷ 50 °C

Storage temperature: – 20 ÷ 60 °C

Supported protocols:
• Blink codes
• K, L (with current protection 100 mA), ISO9141-2, ISO14230
• CAN ISO11898-2 High Speed
• Second ISO11898-2 CAN channel
• CAN ISO 11898-3 LOW Speed
• CAN SAE J2411 Single Wire
• SAE J1850 PWM
• SAE J1850 VPW
• SAE J2534-1 / RP1210
• SAE J1708
• UDP/TCP ISO 13400 (DoIP)

Operating moisture: 10 ÷ 80 % without condensation

Dimensions [mm]: 176,1 x 175,4 x 46,8

Weight: 600 g

IP protection level: IP53 * (*) With properly closed protective caps.

Directives:
RoHS 2011/65/UE
RED 2014/53/UE
2015/863/UE

Electromagnetic compatibility:
ETSI EN 301 489-1
ETSI EN 301 489-17

Radio systems: ETSI EN 300 328

Electrical safety:
EN 62638-1/AC:2015
EN 62311:2008

WARRANTY
1 year
