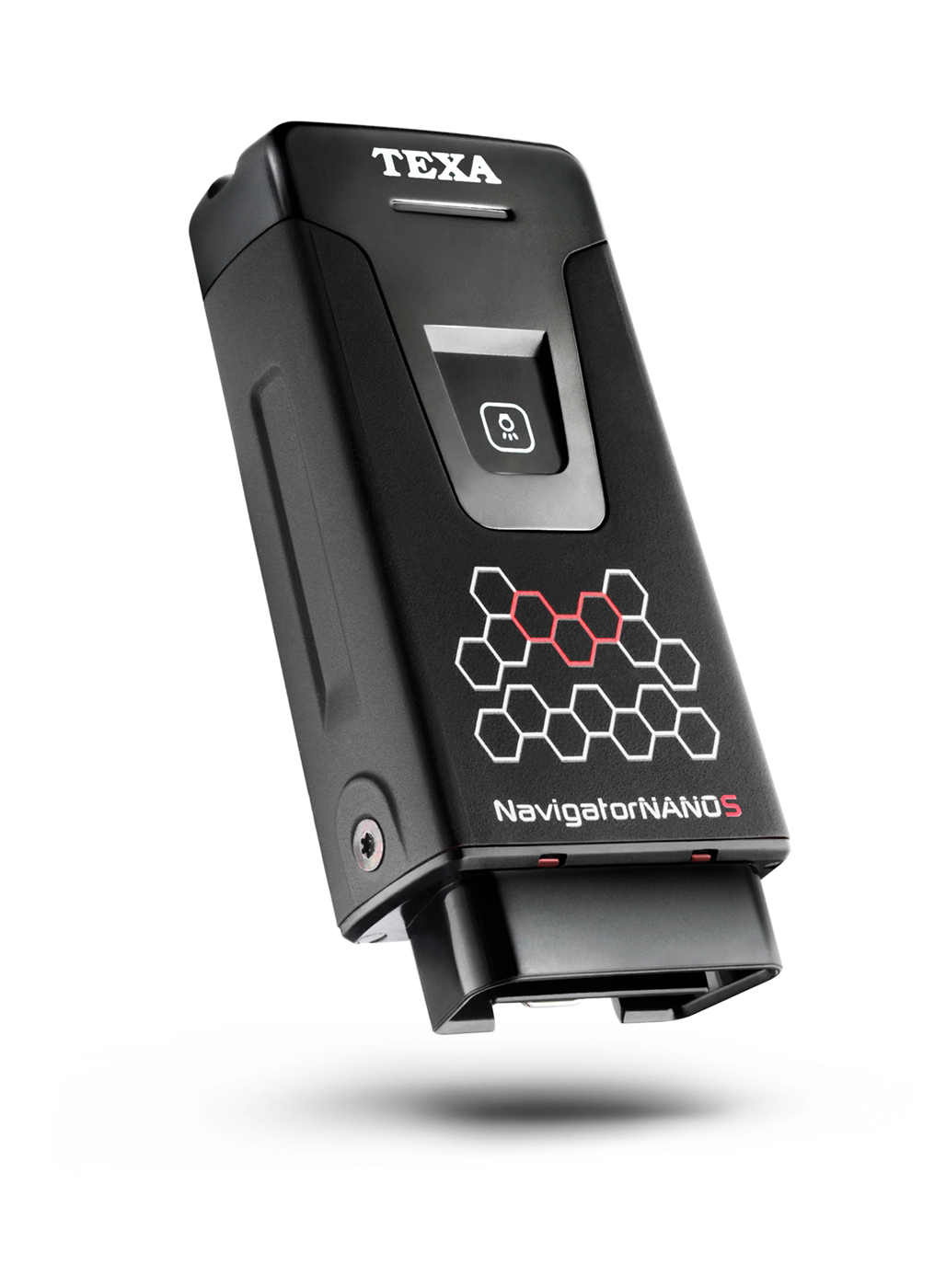

Navigator NANO S

the practical diagnostic interface

Designed to meet the needs of the mechanic

Navigator NANO S is the brand new vehicle interface engineered by TEXA that lets you run all kinds of diagnostics on passenger cars, light commercial vehicles, diesel pickups and high-end supercars.

Every aspect of the Navigator NANO S has been carefully designed and developed to fully satisfy the needs of the modern shop and to allow mechanics to complete all diagnostic tests quickly and easily.
This compact, lightweight and ergonomic interface is designed to function simply and automatically with IDC5 installed on TEXA’s latest generation display unit, the AXONE Nemo, or any Windows based laptop or tablet.

I AM INTERESTED
PLEASE CONTACT ME FOR A DEMONSTRATION!

Robustness and attention to details

A powerful inspection light lets you illuminate the diagnostic socket and make it clearly visible on the vehicle. A LED light is also located on the front of the unit, facing the technician, in order to signal the correct functioning of the unit.

At the end of the diagnostic tests, the Navigator NANO S emits a distinctive beep to remind the technician to disconnect the unit and to prevent it being forgotten inside the vehicle.





No room for compromise

The Navigator NANO S and IDC5 CAR are the perfect combination for any technician in North America working on local, Asian and European cars. With a simple software integration IDC5 can also operate on the so-called supercars.



IDC5’c comprehensive coverage allows the technician to operate several diagnostic functions:
- TGS3s, for the automatic scanning of all diagnosable ECUs on the vehicle*;
- VIN SCAN, for the automatic identification of the vehicle from its VIN;
- Advanced ACTIVATIONS like injector cut off, fan, fuel pump and components tests.
- Parameters RESETS like sensors learning, idle speed adjustments, injector coding, throttle valve calibrations, gears resets, key coding and DPF regenerations.
- ADAS calibrations, both dynamic and static (requires TEXA RCCS2 system and specific targets)
- “SOLVED PROBLEMS” troubleshooting database powered by Google



*TGS3s may not be able to perform automatic scanning on older vehicles.





DISCOVER THE EXCLUSIVE FUNCTIONS





TEXA customer services

TEXA has always supported its tools with a wide range of services. These services keep TEXA tools up to date with the latest innovations in automotive technology, provide practical troubleshooting assistance and guarantee mechanics all-round competence in their field.

The TEXPACK annual contract provides updates for all environments, while TEX@info provides access to the latest technical bulletins, the “SOLVED PROBLEMS” database powered by Google, the Call Centre and iSupport.

TEXA also runs a virtual store that can be accessed directly from TEXA software, in which users can request the activation of a large number of apps for the world of vehicle diagnostics and repair.

TECHNICAL SPECIFICATIONS

PROCESSOR
CORTEX M3 STM32F103 72MHz

MEMORY
External SRAM: 8 MBit organised in 512 K x 16 bit
External NAND flash memory: 2 Gbit on 8 bit bus

INTERNAL BATTERY
Lithium polymer, single cell, 3.7 V 250 mA/h

VEHICLE ELECTRICS
12 VDC vehicle systems

EXTERNAL POWER SUPPLY
8 ÷ 16 V

WIRED CONNECTION
Virtual RS232 via USB 2.0 device

WIRELESS CONNECTION
Bluetooth Class1

ELECTRONIC SWITCHING
2 way, 13 independent positions
DIAGNOSTICS CONNECTOR
OBD

ENVIRONMENTAL
Operating temperature: 0 ÷ 50 °C
Storage temperature: -20 ÷ 60 °C
Operating relative humidity: 10% ÷ 80% non-condensing

DIMENSIONS
51x23x100 mm

WEIGHT
72 g

PROTOCOLS SUPPORTED
Blink codes, K, L (with 60mA current protection) ISO 9141-2, ISO 14230, CAN ISO 11898-2, CAN ISO 11898-3, SAE J1850 PWM and VPW

STANDARDS
Directive: 1999/5/EC
Safety: EN 60950-1
Electromagnetic Compatibility: EN 301 489-1, EN 301 489-17
Radio systems: EN 300 328-2
