The industry benchmark.
Our heavy-duty products are highly regarded in the industry thanks to their accuracy and wide vehicle coverage. The TEXA TRUCK software supports diagnostics, programming, and maintenance, ensuring that technicians can get the job done efficiently and commercial vehicles stay in peak condition.
TEXA’s multi-brand, multi-system coverage is ahead of all single-brand or limited-scope tools.
Mechanics can read/clear codes stored on all ECUs, run bi-directional commands (injectors cut-off, compression tests and more) or perform
component resets (injector coding, DPF forced regens, speed limiters, cruise control resets, VGT calibrations, idle shutdown and more).
All functions are supported by thousands of wiring diagrams, schematics, data sheets and repair procedures.
TEXA doesn’t just show codes—it guides technicians through:
Interactive wiring diagrams
Troubleshooting flowcharts
Technical data sheets and repair procedures
Component testing guides
These resources reduce guesswork and downtime.

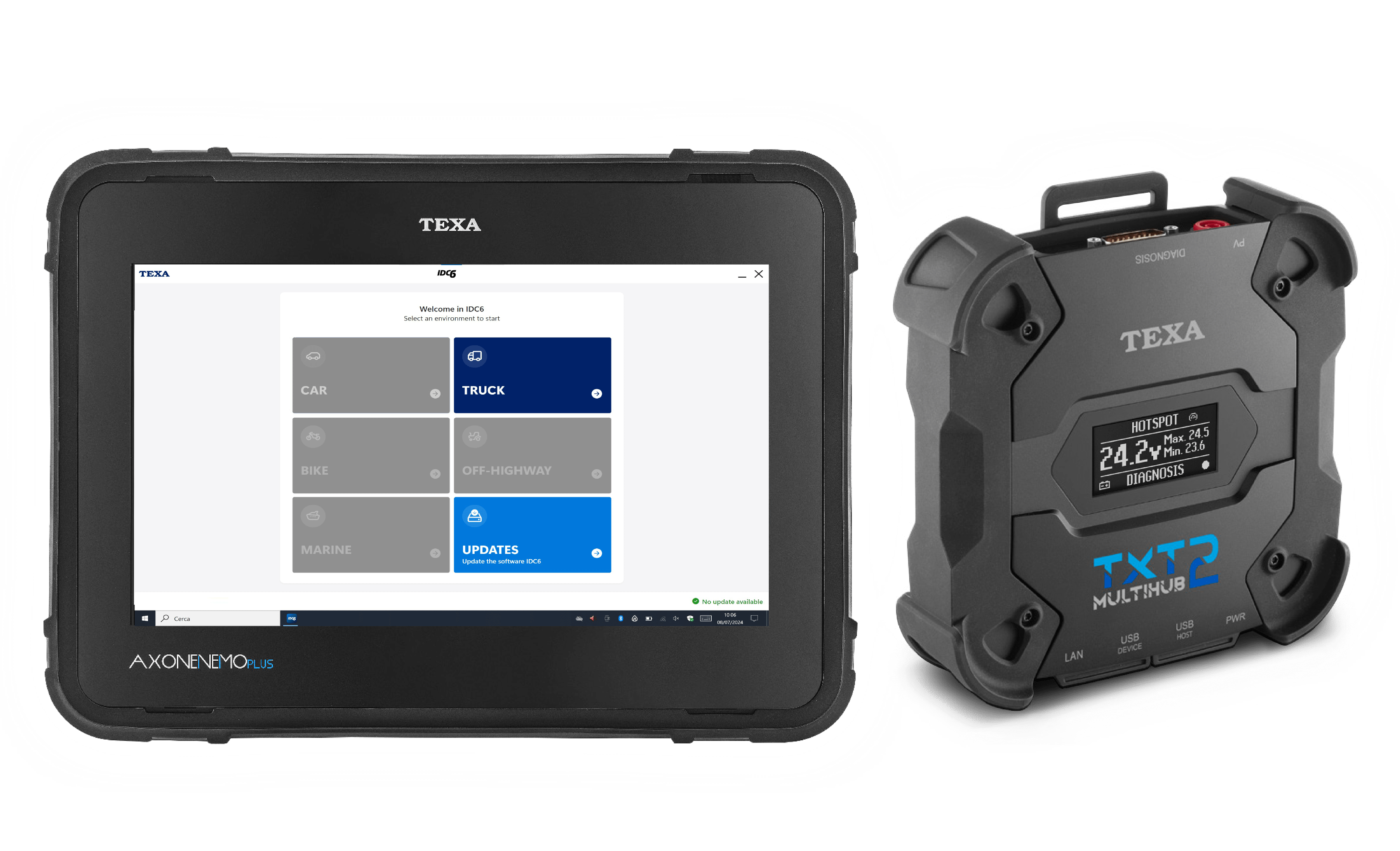

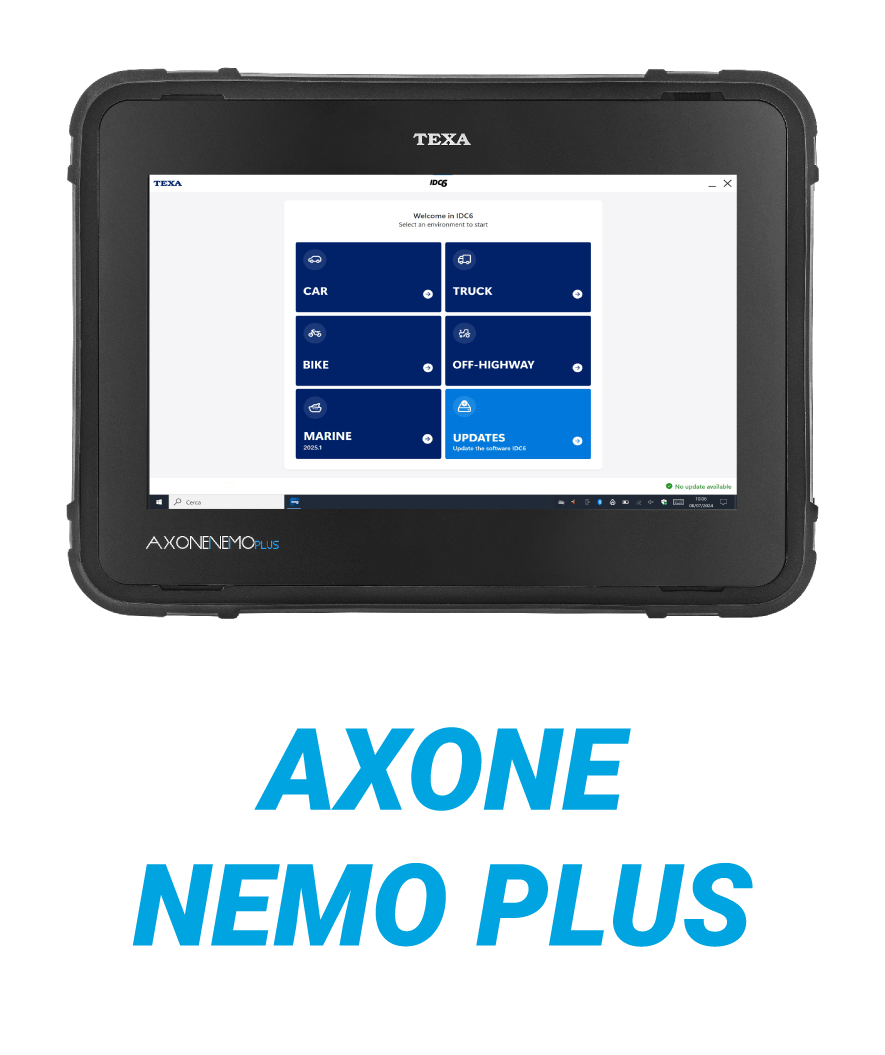

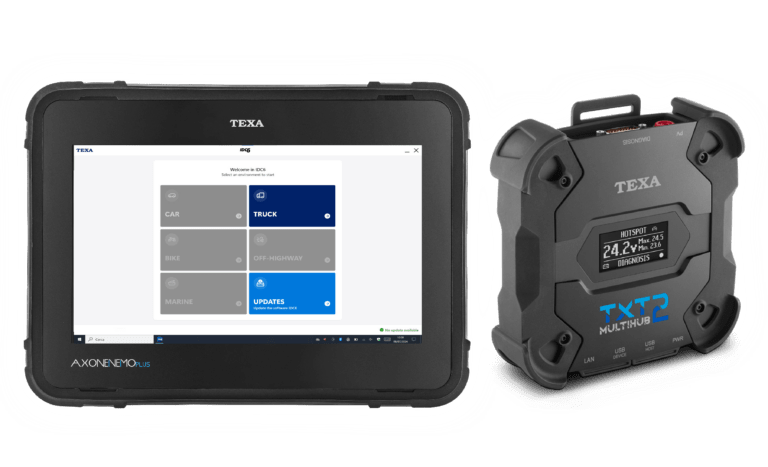

Choosing the AXONE PLUS tablet other TEXA modules (up to a total of 3 on this package) can be added to create a tailor-made scan tool.
This mobile diagnostic unit utilizes advanced diagnostic capabilities to perform in-depth analysis of vehicle systems. With real-time connectivity and comprehensive data insights, it enables efficient troubleshooting and precise diagnostics, right at your location.
This diagnostic function allows for the deactivation of individual engine cylinders to assess their performance. It helps identify potential issues with specific cylinders, ensuring more accurate troubleshooting and effective engine diagnostics.
Equipped to test and analyze fuel injectors in real-time, offering precise diagnostics on fuel delivery systems. It ensures optimal injector performance by identifying issues that could affect engine efficiency and emissions.
Designed to perform and monitor the regeneration of diesel particulate filters (DPF) in real-time. It ensures efficient regeneration processes, helping to maintain engine performance and reduce emissions.
Provides dynamic, easy-to-navigate wiring diagrams and system schematics, allowing technicians to efficiently trace connections, identify components, and troubleshoot vehicle issues.
This diagnostic tool ensures the accurate alignment and calibration of front-facing cameras in vehicles. It plays a crucial role in maintaining the functionality of advanced driver assistance systems (ADAS), including lane-keeping and collision avoidance features
PROCESSOR
Intel© N100 with optimised dissipation thanks to the magnesium body
RAM
16 GB DDR5
HARD DISK
250 GB SSD with ultra-fast PCIe technology
BIOS
64 Mbit Flash ROM, AMI BIOS
OPERATING SYSTEM
Windows™ 11 IoT Enterprise
Trusted Platform Mobile 2.0
VIDEO PERIPHERAL DEVICES (built-in)
High-contrast ultra-wide view angle display;
Dimensions: 11.6” QXGA;
Resolution: 1920×1080 pixel;
High-sensitivity touch controller;
Liquid bonding technology for screen protection and a higher resolution
AUDIO PERIPHERAL DEVICES (built-in):
2 speakers
1 MEMS digital microphone
WIRELESS PERIPHERAL DEVICES (built-in):
• Wi-Fi: 6E (802.11ax) new generation
• Bluetooth: 5.3 new generation
OTHER FUNCTIONS
± 8 g 3-axis digital accelerometer
I/O PERIPHERAL DEVICES
1 proprietary connector for hub with 4 USB Type-A ports
CAMERAS
2 Mpixel, LED flash
LEDs
1 green LED (system status)
1 red LED (charging / power supply status)

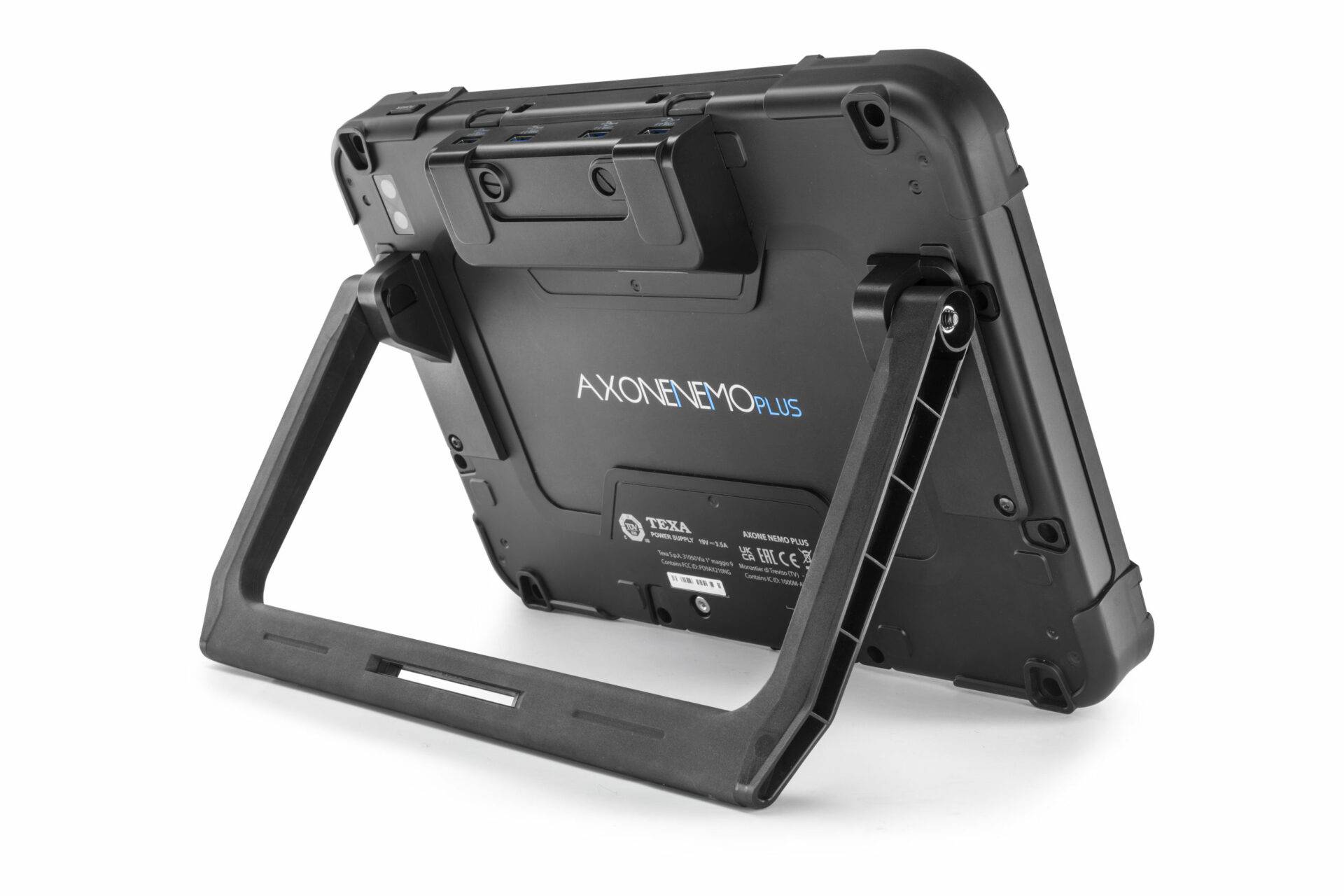

ROBUSTNESS
Rugged design compliant with MIL- STD 810G (Transit Drop Test)
INTERNAL BATTERY
Rechargeable Li-ion 7,2 Vdc; 50,3 Wh; 6990 mAh long-lasting
EXTERNAL POWER SUPPLY
From external power adapter
• Input: 100-240 Vac; 1,5 A;47-63 Hz
• Output: 19 V – 3,7 A
ABSORPTION
12 Vdc (4 Adc) – 24 Vdc (2 Adc)
OPERATING TEMPERATURE
0 ÷ 40 °C
WARRANTY
1 year
Main processor:
• Type: iMX6 1 GHz
• RAM: 512 MByte
• Mass Storage: eMMC 8 GByte
Coprocessor:
• Type: STM32F439 168 MHz
• RAM: 2 MByte SRAM, 8 MByte SDRAM
• Flash: 2 MByte
Power supply connector: PWR: 2.1 DC jack
Power supply: 12 – 24 Vdc (from vehicle battery via OBD connector or specific wirings)
Consumption: 1 A @12 V max
USB connectors:
• USB: USB 2.0 host type A max 1 A out
• USB DEVICE: USB 2.0 device type B (priority connector)
Bluetooth communication: Bluetooth 5.0 (BDR/EDR/LE)
WiFi communication: WiFi IEEE 802.11 b/g/n 2.4GHz
Operational band: 2400 ÷ 2483.5 MHz
Maximum radio frequency power transmitted: 10 dBm (2400 ÷ 2483,5 MHz)
Diagnostic connectors:
• DIAGNOSIS: DSUB-26HD (ISO 22900-1)
• DoIP: RJ45 (UDP/TCP 13400)
Electronic switch: 2-way, 13 independent positions
Control units reprogramming connector: PV (SAE J2534-1)
User interface: Display OLED 64×128 dot
Operating temperature: 0 ÷ 50 °C
Storage temperature: – 20 ÷ 60 °C
Supported protocols:
• Blink codes
• K, L (with current protection 100 mA), ISO9141-2, ISO14230
• CAN ISO11898-2 High Speed
• Second ISO11898-2 CAN channel
• CAN ISO 11898-3 LOW Speed
• CAN SAE J2411 Single Wire
• SAE J1850 PWM
• SAE J1850 VPW
• SAE J2534-1 / RP1210
• SAE J1708
• UDP/TCP ISO 13400 (DoIP)
Operating moisture: 10 ÷ 80 % without condensation
Dimensions [mm]: 176,1 x 175,4 x 46,8
Weight: 600 g
IP protection level: IP53 * (*) With properly closed protective caps.
Directives:
RoHS 2011/65/UE
RED 2014/53/UE
2015/863/UE
Electromagnetic compatibility:
ETSI EN 301 489-1
ETSI EN 301 489-17
Radio systems: ETSI EN 300 328
Electrical safety:
EN 62638-1/AC:2015
EN 62311:2008
WARRANTY
1 year
