AXONE VOICE
OFF HIGHWAY

Discover the
AXONE NEMO PLUS
OFF HIGHWAY Package

TEXA at full scale.
The best software on the best hardware.

TEXA Off Highway Software

Our OHW scan tools are highly regarded in the industry for their effectiveness, reliability, and comprehensive features tailored to the off-highway sector. Our products are designed to provide diagnostic solutions for heavy machinery and equipment used in agriculture, construction, mining, forestry, and more.

In this kit the TEXA OHW software is installed on our rugged tablet, the AXONE VOICE.

All TEXA modules can be added to this kit to create a tailor-made scan tool.

SOFTWARE CAPABILITIES:

Engines: Monitoring and diagnosing engines, including monitoring fuel injection, turbochargers, and emissions systems (such as DPF regeneration).

Hydraulics: Diagnostics for hydraulic systems, which are critical in off-highway machinery.

Transmission: Analyzing and diagnosing issues related to heavy-duty transmission systems, including automated gearboxes.

Advanced Control Systems: Provides support for complex systems like telematics, GPS, and autonomous driving systems (found in some modern agricultural or construction equipment).

And much more ..

TECHNICAL INFORMATION:

All functions are supported by thousands of wiring diagrams, schematics, data sheets and repair procedures to guide the users through the whole process. All of these tools can be used with the help of the TEXA AI to streamline maintenance and improve the efficiency of repairs, ultimately saving time and money.

Skid Steer Bucket Calibration

Guided procedures ensure accurate calibration of the bucket system, optimizing performance and control for Cat skid steers.

Steer Engine Data

Access live engine parameters, fault codes, and system tests for efficient diagnostics and repair of Cat skid steer engines.

Rear Hydraulics

Run diagnostics and perform functional tests on rear hydraulic systems in equipment to maintain optimal lifting performance.

Wiring Diagrams

Access interactive wiring diagrams and detailed technical documents to support accurate diagnostics and component-level repairs.

Diesel Particulate Filter data

Perform regeneration, check soot levels, and monitor DPF status to keep JCB equipment running clean and compliant.

ADVANCED CALIBRATION

Calibrate your John Deere rear lift system with precise voltage readings using TEXA’s advanced diagnostics.

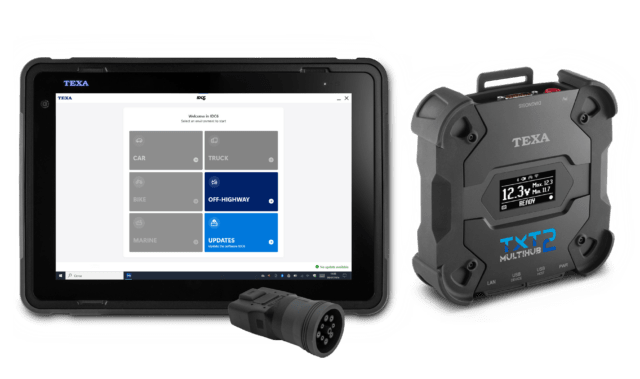

AXONE VOICE OFF HIGHWAY PACKAGE CONTAINS

Technical Specifications

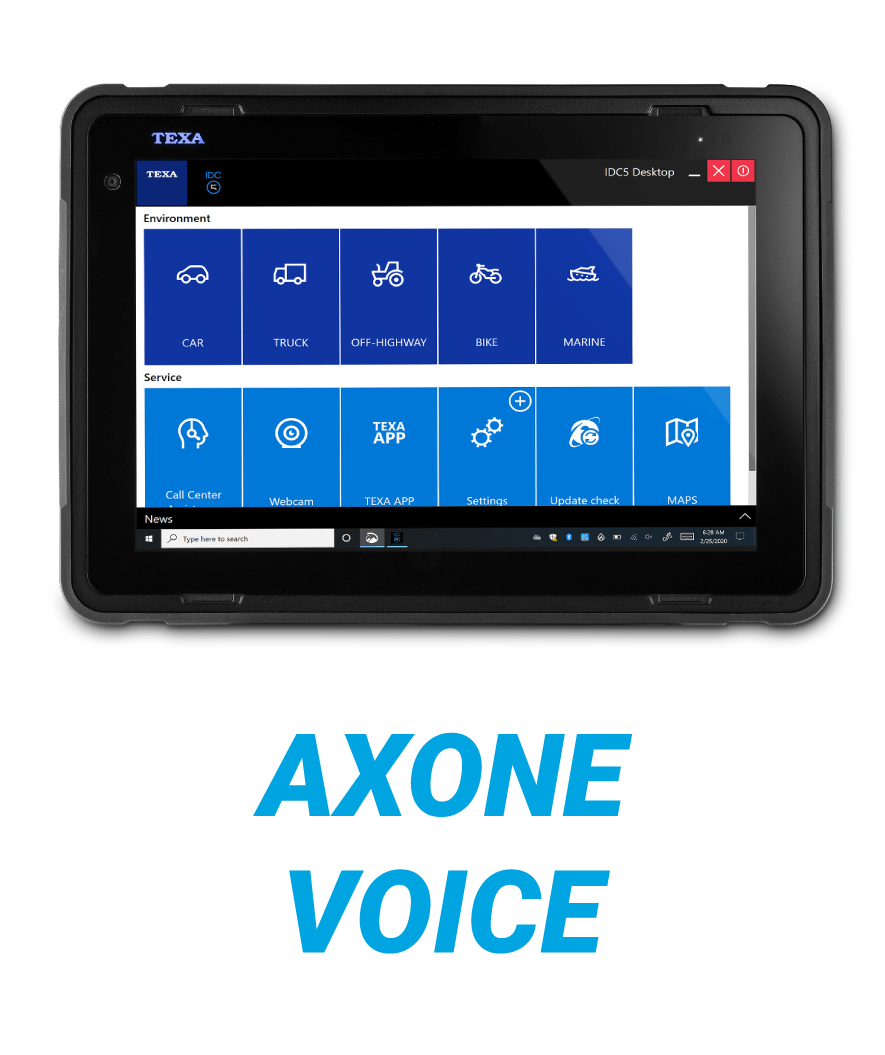

AXONE VOICE TABLET

CLICK HERE FOR MORE INFORMATION

DISPLAY AND RESOLUTION
Gorilla® Glass 13.3” screen
High resolution: 2560×1600 (up to 400 cd/m² ) 16.7 M of eDP colours
Multi-touch support up to 10 points simultaneously

OPERATING SYSTEM
Windows 10 Enterprise

PROCESSOR
(Generation – Model and type)
Intel® i5 8M cache, TGL UP3 i5-1145G7E “Tiger Lake”
1.5-4.1 Ghz Turbo Boost – Quad Core 15W

GRAPHICS
Intel® Iris® Xe Graphics

COOLING
Fanless

RAM storage
16 GB LPDDR4 dual channel 3200 Mhz

MEMORY CAPACITY
512 GB SSD 2280 PCIe Gen3.0 x 4 lane NVMe

CERTIFICATIONS
EC brand / NEMKO RED / electrical safety SUD TUV brand / RoHS
regulation compliant
US electrical safety cTUV NRTL – USA + Canada
FCC / IC certification – USA + Canada
Proposition 65 compliance – California
MIL-STD 810G (TRANSIT DROP TEST)

STRUCTURE
In magnesium

BATTERY
Li-ion battery – 7.2 Volt 90 W/h (12500 mAh)
(10 hours of operation in standard use conditions)

BUILT-IN INTERFACE
GNSS

SENSORS
Accelerometer; eCompass; Gyroscope; Barometer; Altimeter;
Ambient light sensor, magnetic

CONNECTIVITY
Dual band 802.11ac Wi-Fi, Bluetooth® 5.1 Intel AC9260

EXPANDABILITY
4x 3.0 USB ports (max output current 2000 mA)

CAMERAS
Rear: 8 MP AF with FLASH – Front: 8 MP

SIZES AND WEIGHT
360 x 250 x 34 mm / 2.3 Kg

WARRANTY
1 year

TXT MULTIHUB 2

CLICK HERE FOR MORE INFORMATION

Main processor:
• Type: iMX6 1 GHz
• RAM: 512 MByte
• Mass Storage: eMMC 8 GByte

Coprocessor:
• Type: STM32F439 168 MHz
• RAM: 2 MByte SRAM, 8 MByte SDRAM
• Flash: 2 MByte

Power supply connector: PWR: 2.1 DC jack

Power supply: 12 – 24 Vdc (from vehicle battery via OBD connector or specific wirings)

Consumption: 1 A @12 V max

USB connectors:
• USB: USB 2.0 host type A max 1 A out
• USB DEVICE: USB 2.0 device type B (priority connector)

Bluetooth communication: Bluetooth 5.0 (BDR/EDR/LE)

WiFi communication: WiFi IEEE 802.11 b/g/n 2.4GHz

Operational band: 2400 ÷ 2483.5 MHz

Maximum radio frequency power transmitted: 10 dBm (2400 ÷ 2483,5 MHz)

Diagnostic connectors:
• DIAGNOSIS: DSUB-26HD (ISO 22900-1)
• DoIP: RJ45 (UDP/TCP 13400)

Electronic switch: 2-way, 13 independent positions

Control units reprogramming connector: PV (SAE J2534-1)

User interface: Display OLED 64×128 dot

Operating temperature: 0 ÷ 50 °C

Storage temperature: – 20 ÷ 60 °C

Supported protocols:
• Blink codes
• K, L (with current protection 100 mA), ISO9141-2, ISO14230
• CAN ISO11898-2 High Speed
• Second ISO11898-2 CAN channel
• CAN ISO 11898-3 LOW Speed
• CAN SAE J2411 Single Wire
• SAE J1850 PWM
• SAE J1850 VPW
• SAE J2534-1 / RP1210
• SAE J1708
• UDP/TCP ISO 13400 (DoIP)

Operating moisture: 10 ÷ 80 % without condensation

Dimensions [mm]: 176,1 x 175,4 x 46,8

Weight: 600 g

IP protection level: IP53 * (*) With properly closed protective caps.

Directives:
RoHS 2011/65/UE
RED 2014/53/UE
2015/863/UE

Electromagnetic compatibility:
ETSI EN 301 489-1
ETSI EN 301 489-17

Radio systems: ETSI EN 300 328

Electrical safety:
EN 62638-1/AC:2015
EN 62311:2008

WARRANTY
1 year
