The industry benchmark and a military-grade tablet.
Our heavy-duty products are highly regarded in the industry thanks to their accuracy and wide vehicle coverage. The TEXA TRUCK software supports diagnostics, programming, and maintenance, ensuring that technicians can get the job done efficiently and commercial vehicles stay in peak condition.
TEXA’s multi-brand, multi-system coverage is ahead of all single-brand or limited-scope tools.
Mechanics can read/clear codes stored on all ECUs, run bi-directional commands (injectors cut-off, compression tests and more) or perform
component resets (injector coding, DPF forced regens, speed limiters, cruise control resets, VGT calibrations, idle shutdown and more).
All functions are supported by thousands of wiring diagrams, schematics, data sheets and repair procedures.
TEXA doesn’t just show codes—it guides technicians through:
Interactive wiring diagrams
Troubleshooting flowcharts
Technical data sheets and repair procedures
Component testing guides
These resources reduce guesswork and downtime.

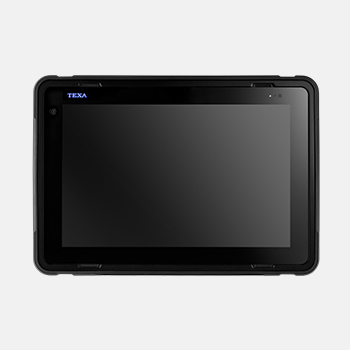

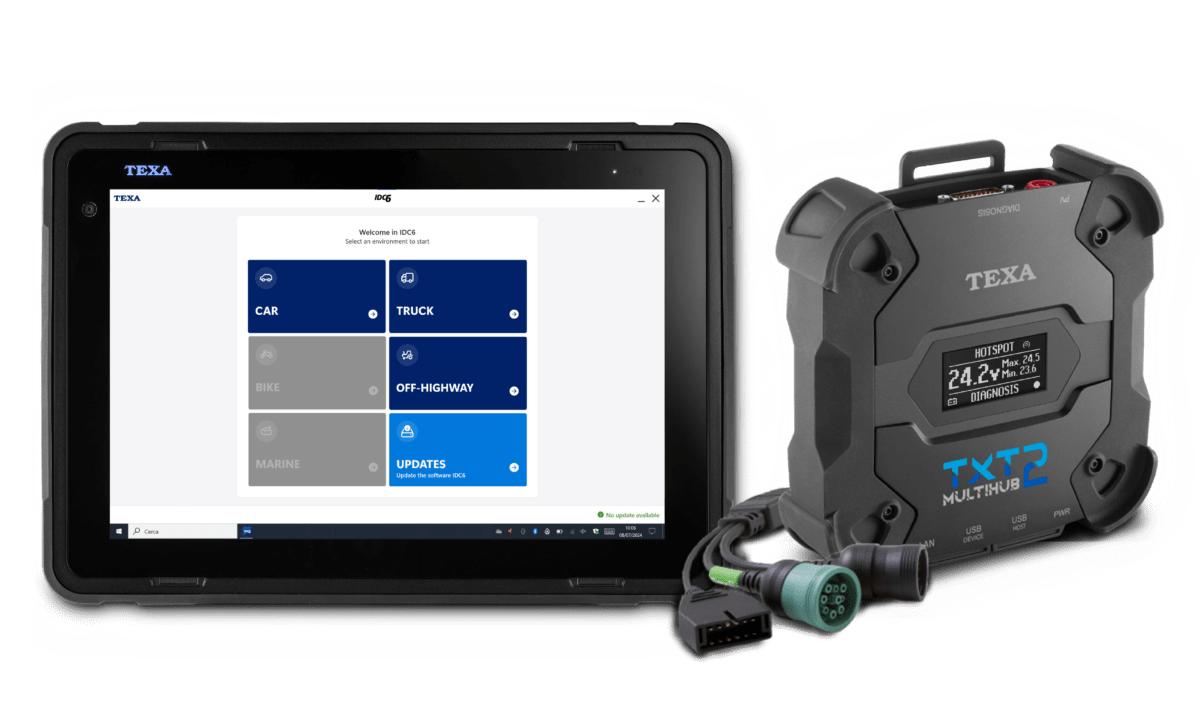

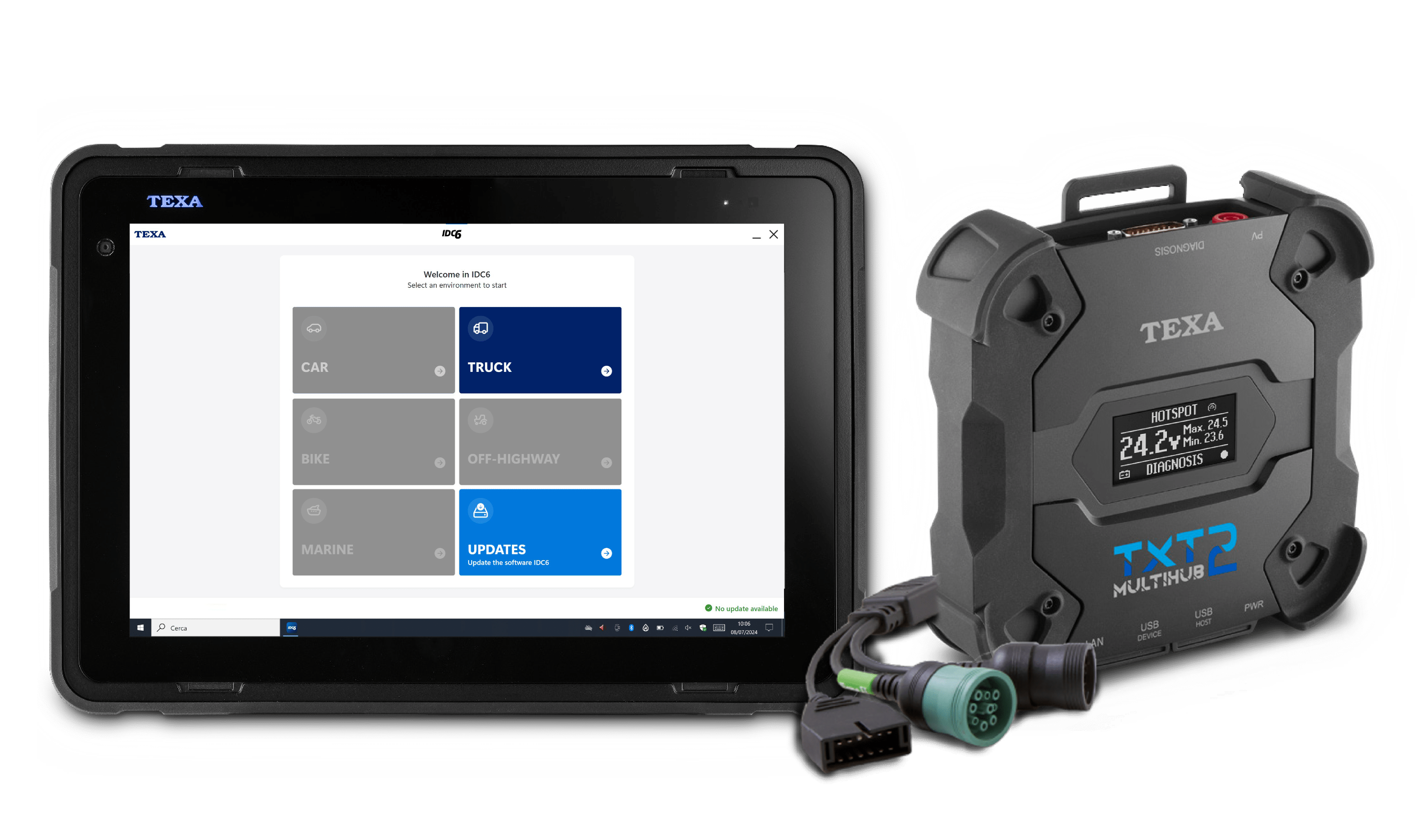

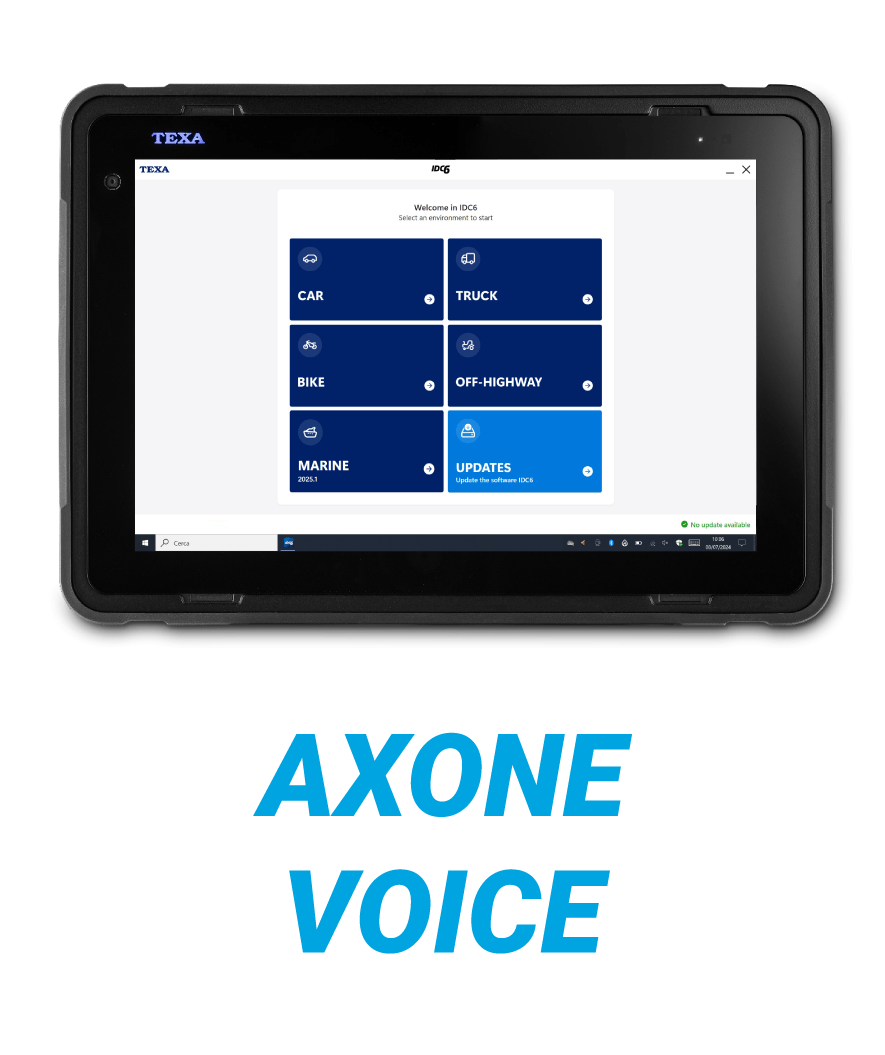

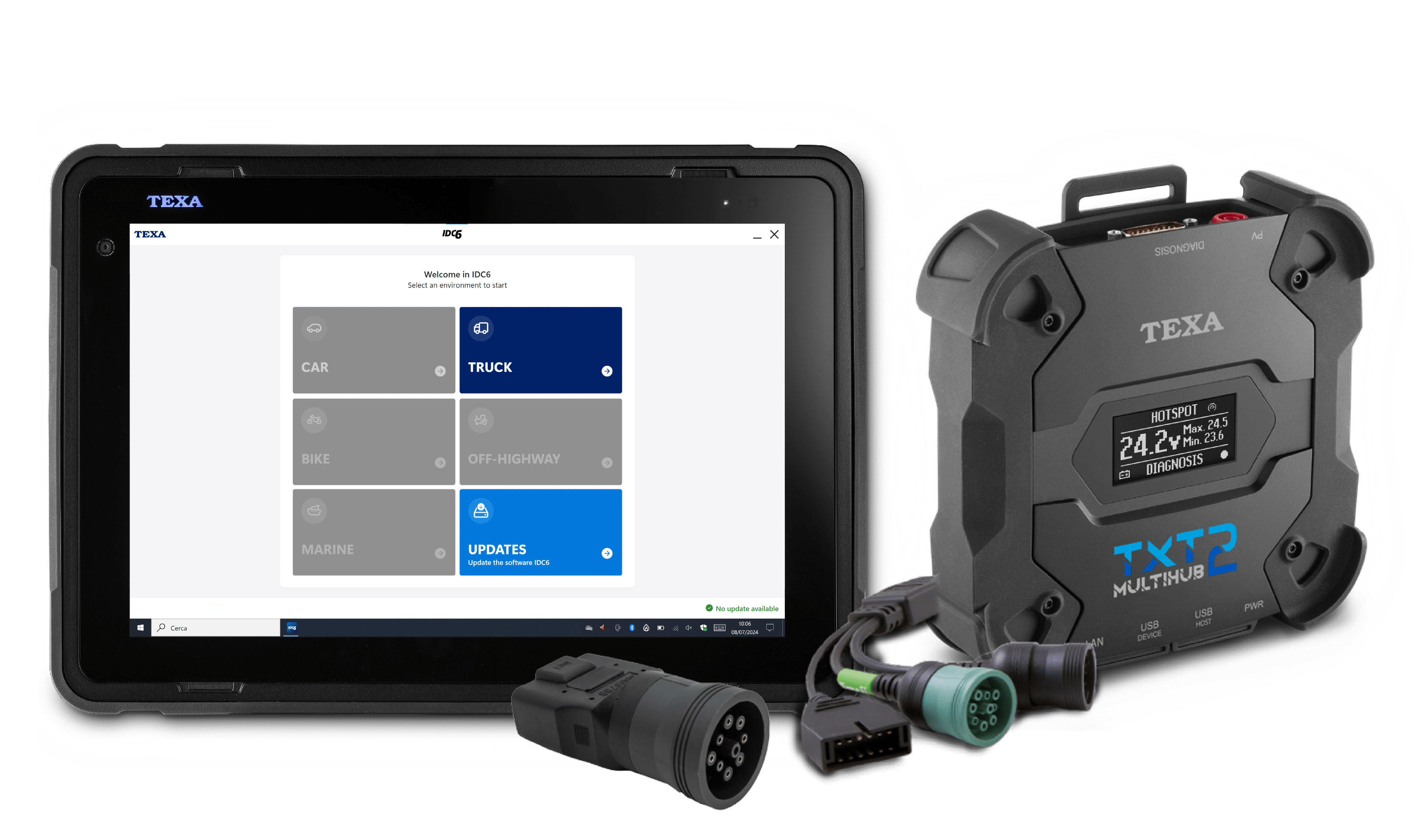

Choosing the AXONE VOICE tablet all other TEXA modules (OHW, CAR, BIKE and MARINE) can be added to create the most comprehensive scan tool in the market.

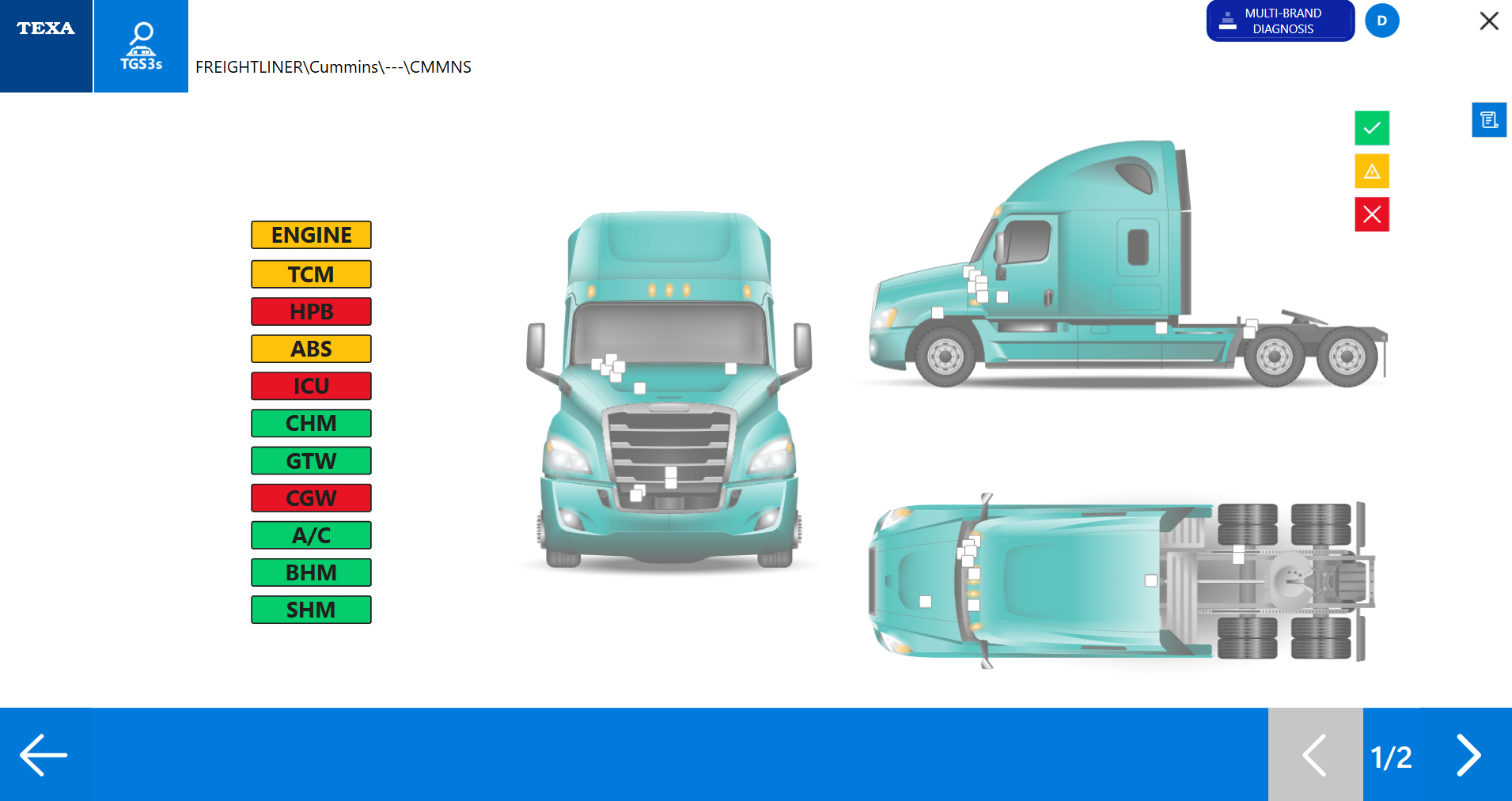

This mobile diagnostic unit utilizes advanced diagnostic capabilities to perform in-depth analysis of vehicle systems. With real-time connectivity and comprehensive data insights, it enables efficient troubleshooting and precise diagnostics, right at your location.

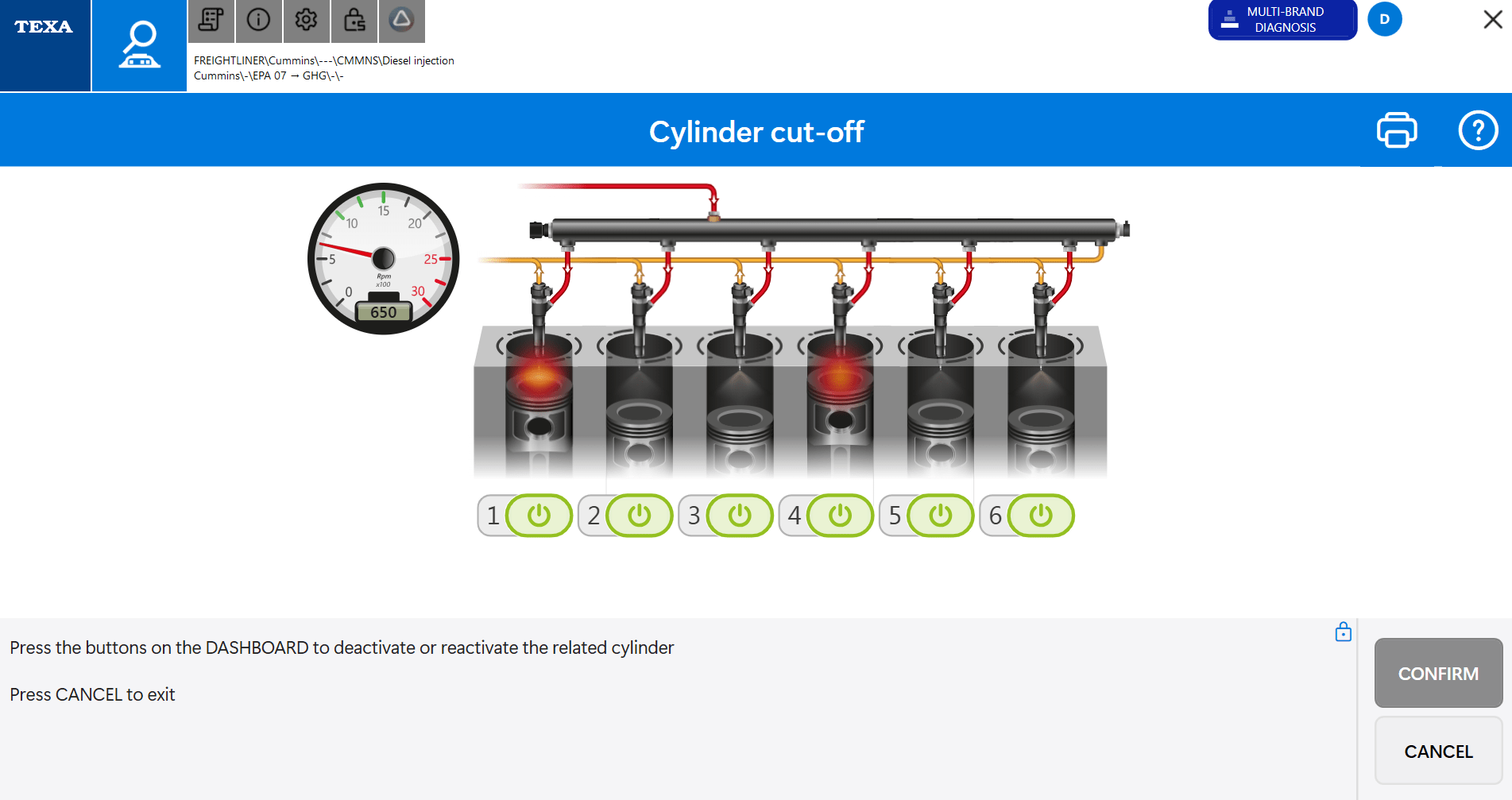

This diagnostic function allows for the deactivation of individual engine cylinders to assess their performance. It helps identify potential issues with specific cylinders, ensuring more accurate troubleshooting and effective engine diagnostics.

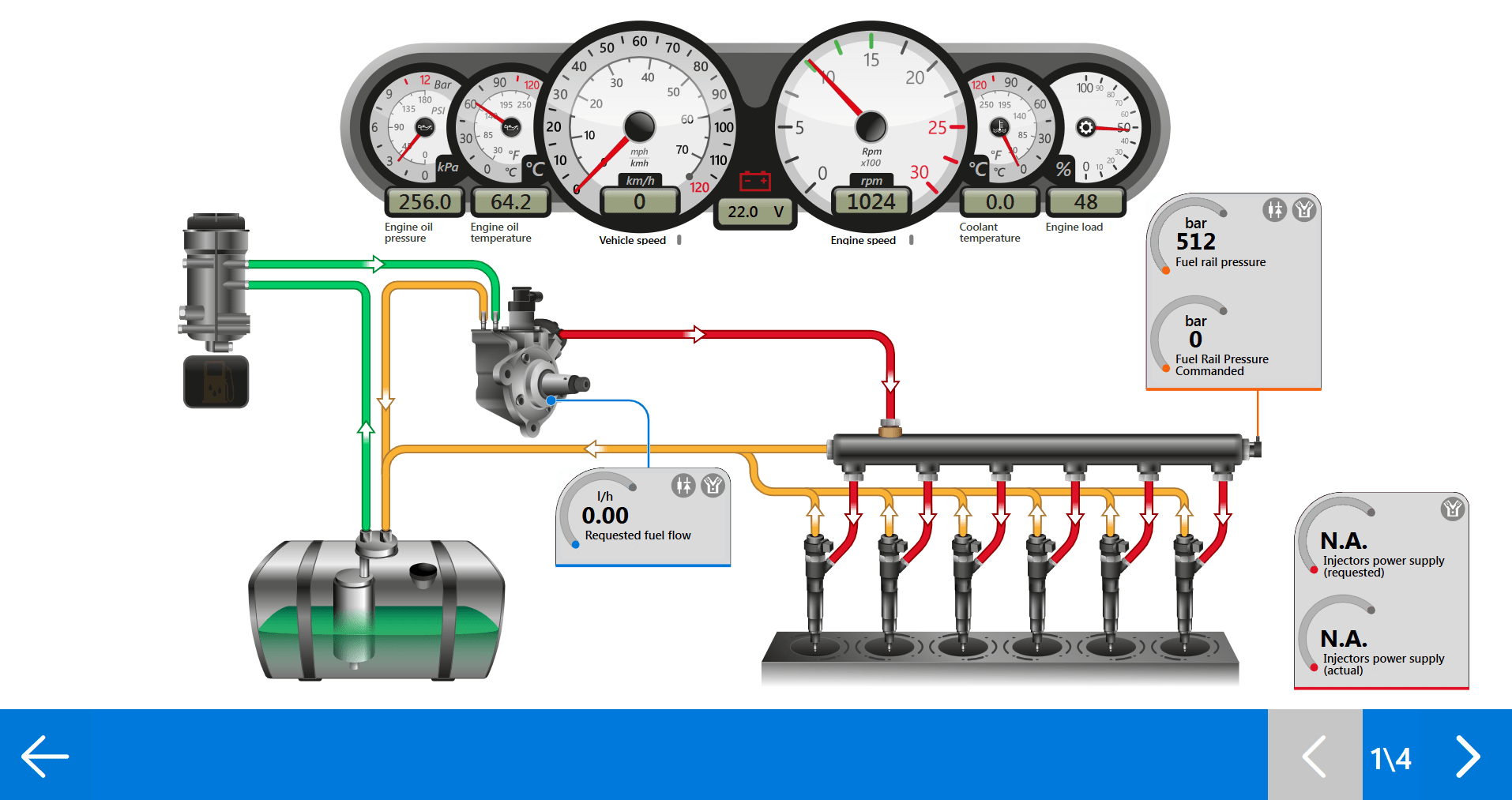

Equipped to test and analyze fuel injectors in real-time, offering precise diagnostics on fuel delivery systems. It ensures optimal injector performance by identifying issues that could affect engine efficiency and emissions.

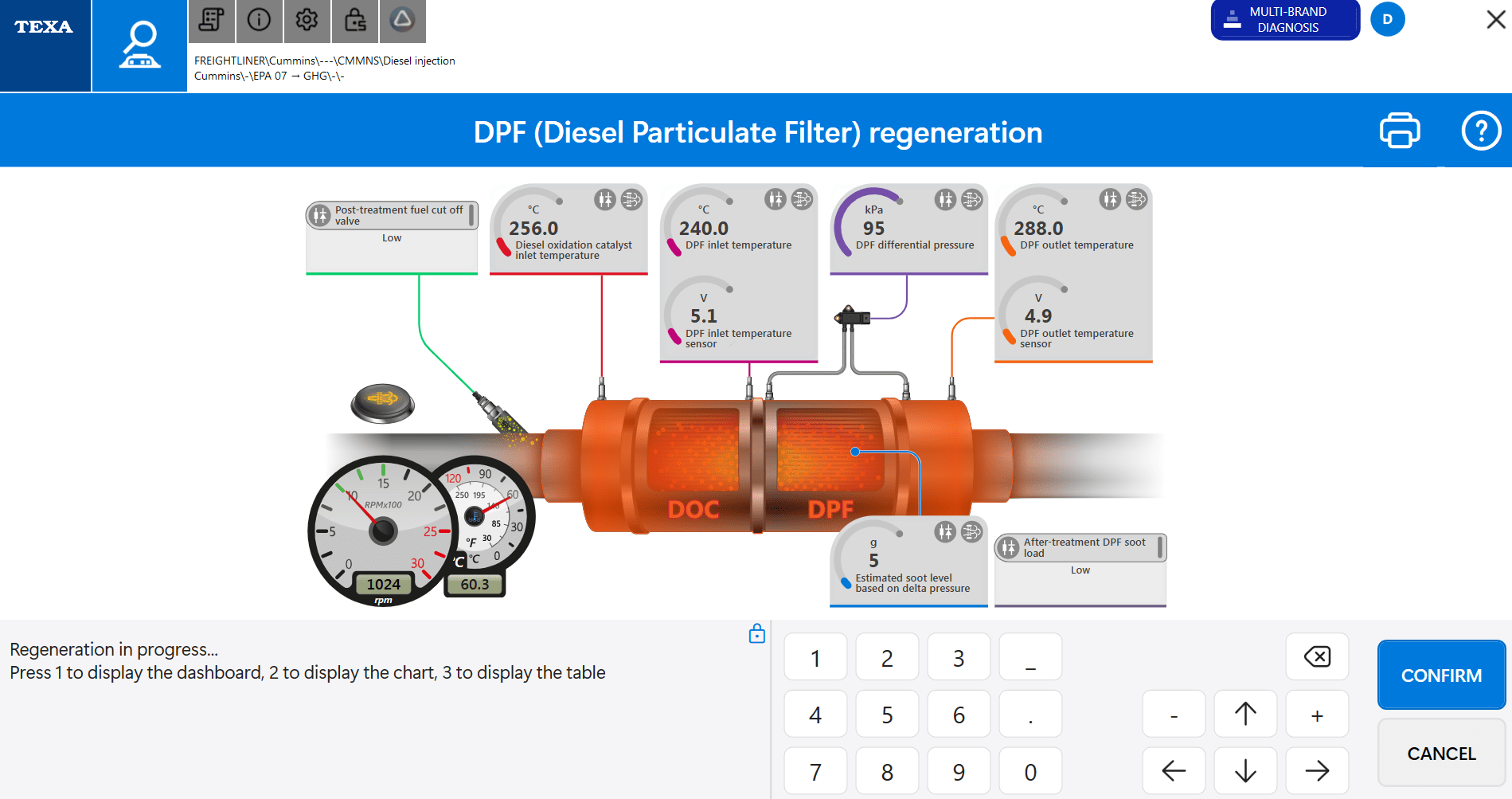

Designed to perform and monitor the regeneration of diesel particulate filters (DPF) in real-time. It ensures efficient regeneration processes, helping to maintain engine performance and reduce emissions.

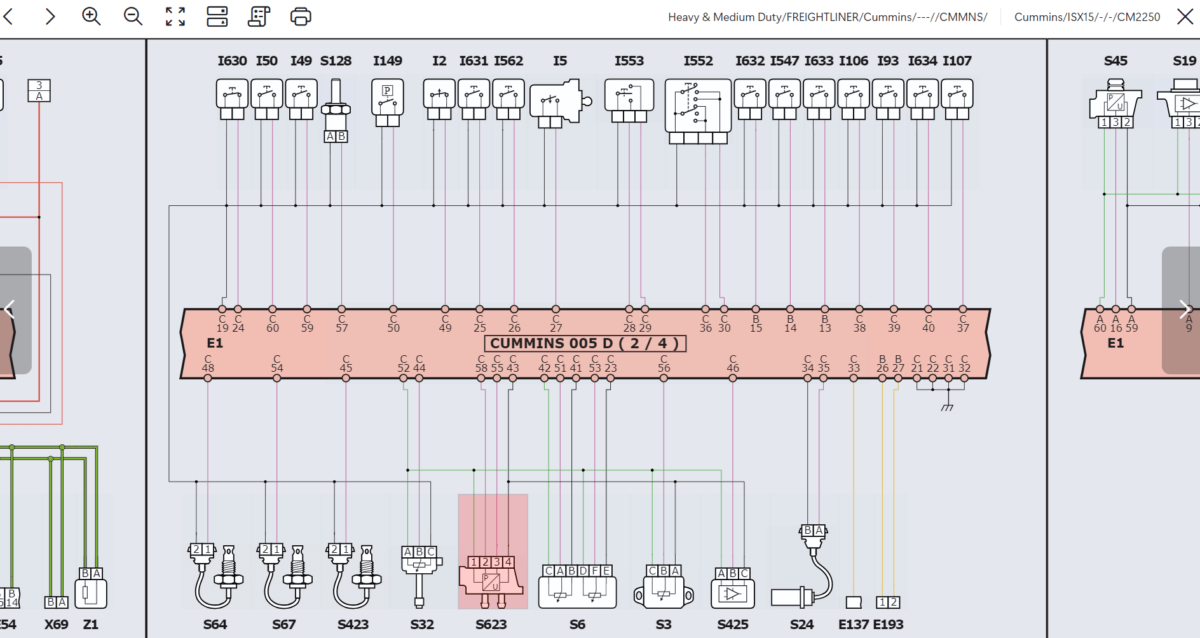

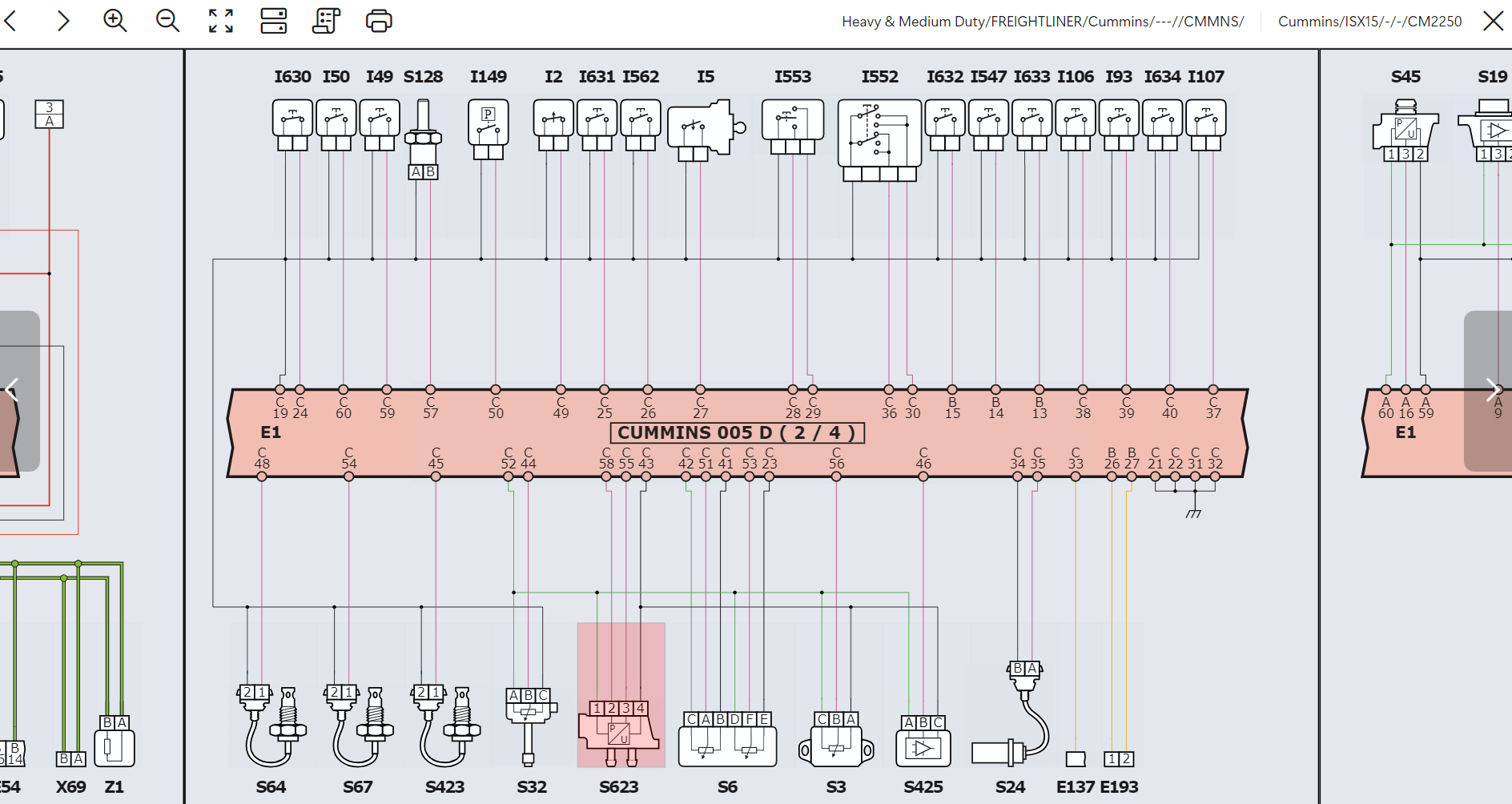

Provides dynamic, easy-to-navigate wiring diagrams and system schematics, allowing technicians to efficiently trace connections, identify components, and troubleshoot vehicle issues.

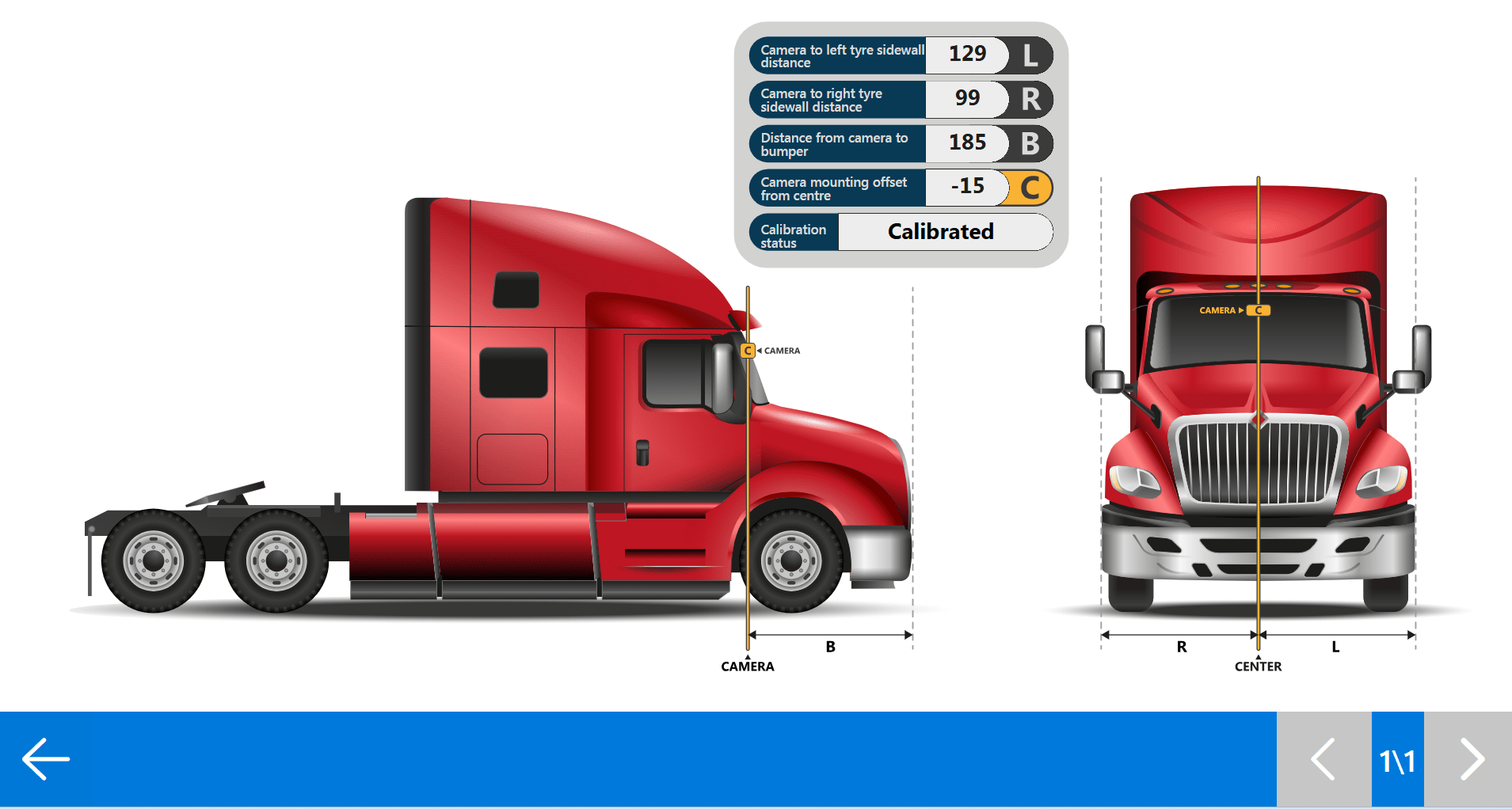

This diagnostic tool ensures the accurate alignment and calibration of front-facing cameras in vehicles. It plays a crucial role in maintaining the functionality of advanced driver assistance systems (ADAS), including lane-keeping and collision avoidance features
DISPLAY AND RESOLUTION
Gorilla® Glass 13.3” screen
High resolution: 2560×1600 (up to 400 cd/m² ) 16.7 M of eDP colours
Multi-touch support up to 10 points simultaneously
OPERATING SYSTEM
Windows 10 Enterprise
PROCESSOR
(Generation – Model and type)
Intel® i5 8M cache, TGL UP3 i5-1145G7E “Tiger Lake”
1.5-4.1 Ghz Turbo Boost – Quad Core 15W
GRAPHICS
Intel® Iris® Xe Graphics
COOLING
Fanless
RAM storage
16 GB LPDDR4 dual channel 3200 Mhz
MEMORY CAPACITY
512 GB SSD 2280 PCIe Gen3.0 x 4 lane NVMe
CERTIFICATIONS
EC brand / NEMKO RED / electrical safety SUD TUV brand / RoHS
regulation compliant
US electrical safety cTUV NRTL – USA + Canada
FCC / IC certification – USA + Canada
Proposition 65 compliance – California
MIL-STD 810G (TRANSIT DROP TEST)
STRUCTURE
In magnesium
BATTERY
Li-ion battery – 7.2 Volt 90 W/h (12500 mAh)
(10 hours of operation in standard use conditions)
BUILT-IN INTERFACE
GNSS
SENSORS
Accelerometer; eCompass; Gyroscope; Barometer; Altimeter;
Ambient light sensor, magnetic
CONNECTIVITY
Dual band 802.11ac Wi-Fi, Bluetooth® 5.1 Intel AC9260
EXPANDABILITY
4x 3.0 USB ports (max output current 2000 mA)
CAMERAS
Rear: 8 MP AF with FLASH – Front: 8 MP
SIZES AND WEIGHT
360 x 250 x 34 mm / 2.3 Kg
WARRANTY
1 year

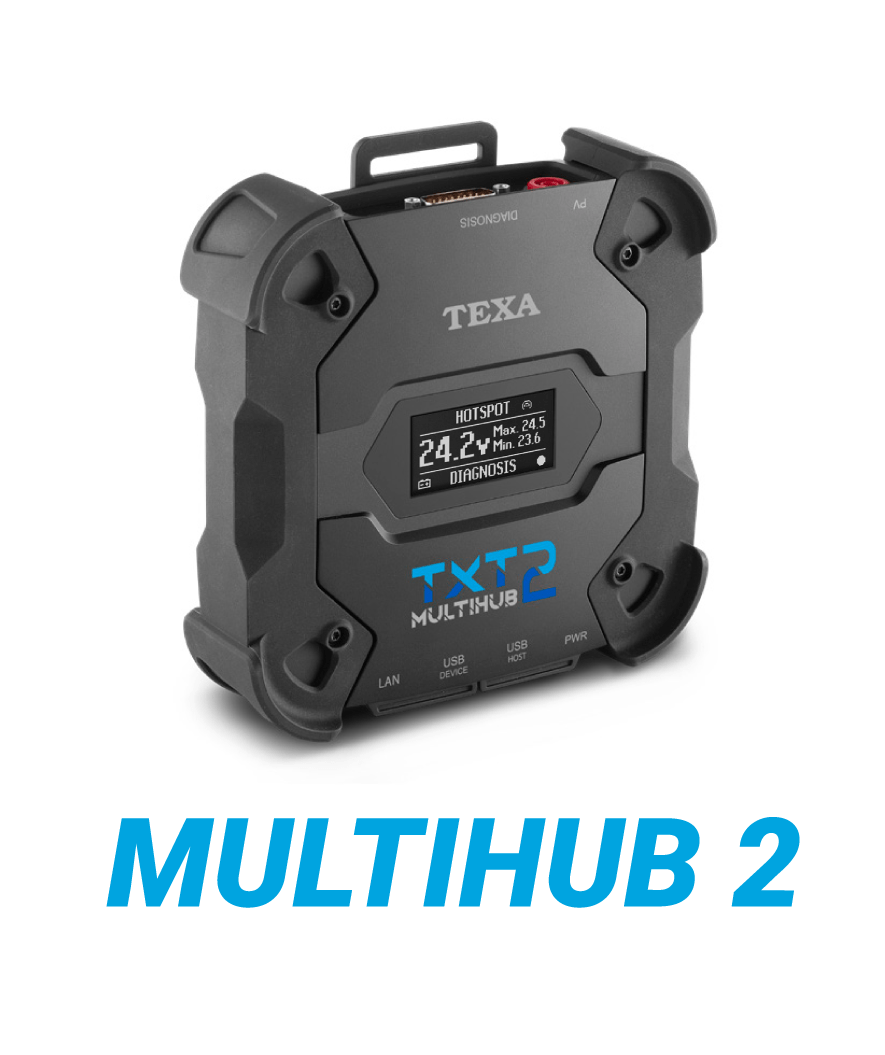

Main processor:
• Type: iMX6 1 GHz
• RAM: 512 MByte
• Mass Storage: eMMC 8 GByte
Coprocessor:
• Type: STM32F439 168 MHz
• RAM: 2 MByte SRAM, 8 MByte SDRAM
• Flash: 2 MByte
Power supply connector: PWR: 2.1 DC jack
Power supply: 12 – 24 Vdc (from vehicle battery via OBD connector or specific wirings)
Consumption: 1 A @12 V max
USB connectors:
• USB: USB 2.0 host type A max 1 A out
• USB DEVICE: USB 2.0 device type B (priority connector)
Bluetooth communication: Bluetooth 5.0 (BDR/EDR/LE)
WiFi communication: WiFi IEEE 802.11 b/g/n 2.4GHz
Operational band: 2400 ÷ 2483.5 MHz
Maximum radio frequency power transmitted: 10 dBm (2400 ÷ 2483,5 MHz)
Diagnostic connectors:
• DIAGNOSIS: DSUB-26HD (ISO 22900-1)
• DoIP: RJ45 (UDP/TCP 13400)
Electronic switch: 2-way, 13 independent positions
Control units reprogramming connector: PV (SAE J2534-1)
User interface: Display OLED 64×128 dot
Operating temperature: 0 ÷ 50 °C
Storage temperature: – 20 ÷ 60 °C
Supported protocols:
• Blink codes
• K, L (with current protection 100 mA), ISO9141-2, ISO14230
• CAN ISO11898-2 High Speed
• Second ISO11898-2 CAN channel
• CAN ISO 11898-3 LOW Speed
• CAN SAE J2411 Single Wire
• SAE J1850 PWM
• SAE J1850 VPW
• SAE J2534-1 / RP1210
• SAE J1708
• UDP/TCP ISO 13400 (DoIP)
Operating moisture: 10 ÷ 80 % without condensation
Dimensions [mm]: 176,1 x 175,4 x 46,8
Weight: 600 g
IP protection level: IP53 * (*) With properly closed protective caps.
Directives:
RoHS 2011/65/UE
RED 2014/53/UE
2015/863/UE
Electromagnetic compatibility:
ETSI EN 301 489-1
ETSI EN 301 489-17
Radio systems: ETSI EN 300 328
Electrical safety:
EN 62638-1/AC:2015
EN 62311:2008
WARRANTY
1 year
