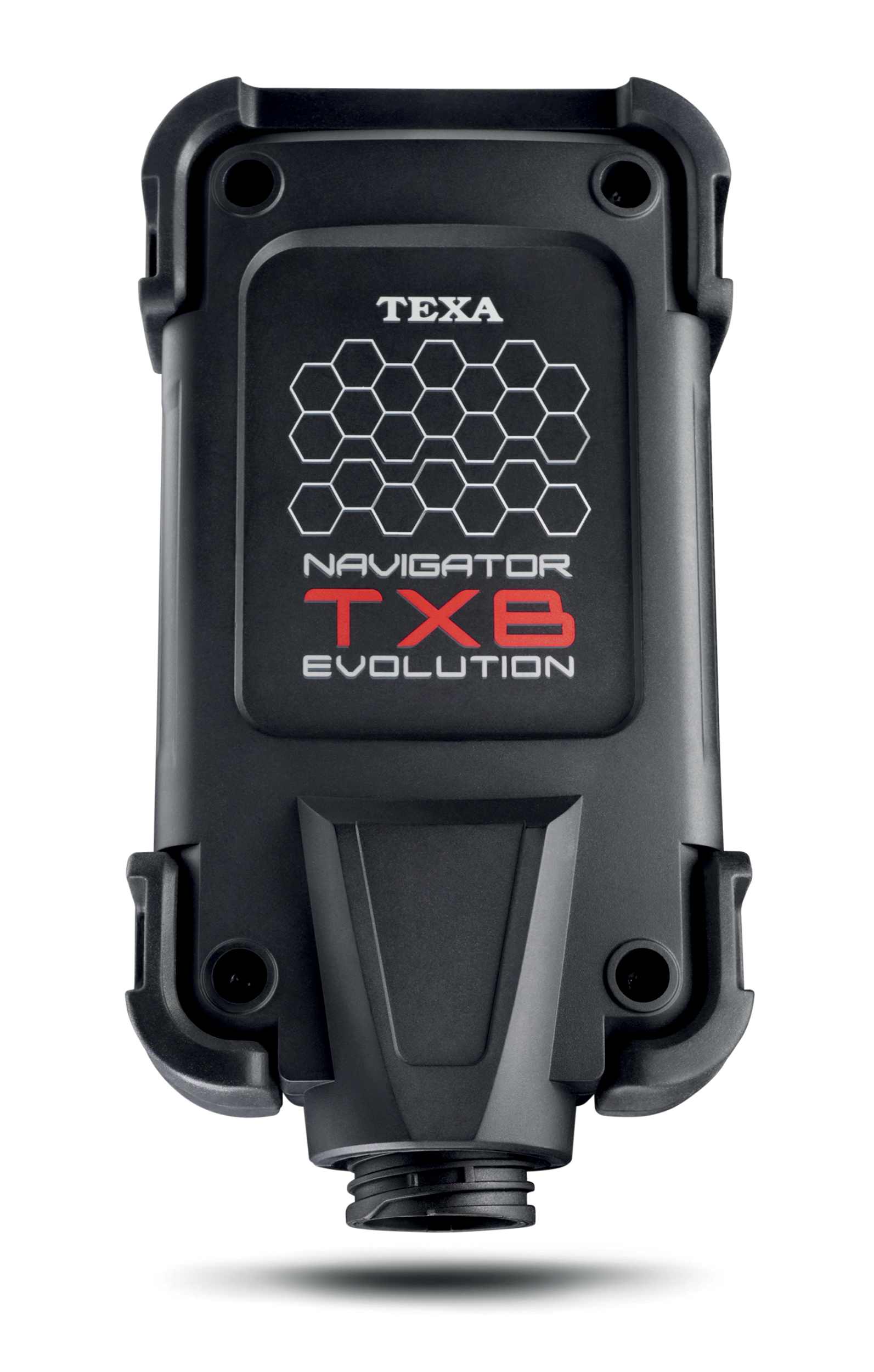

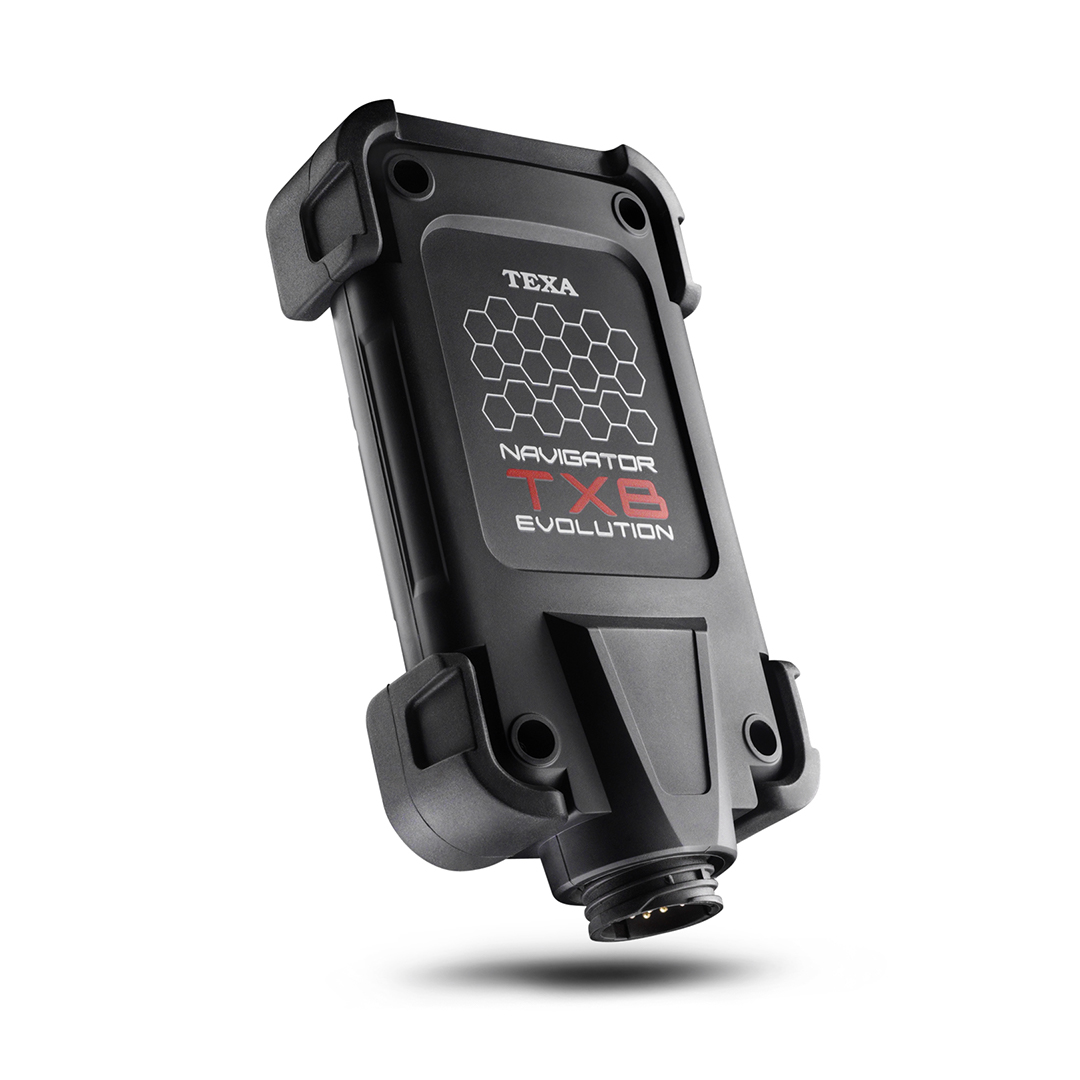

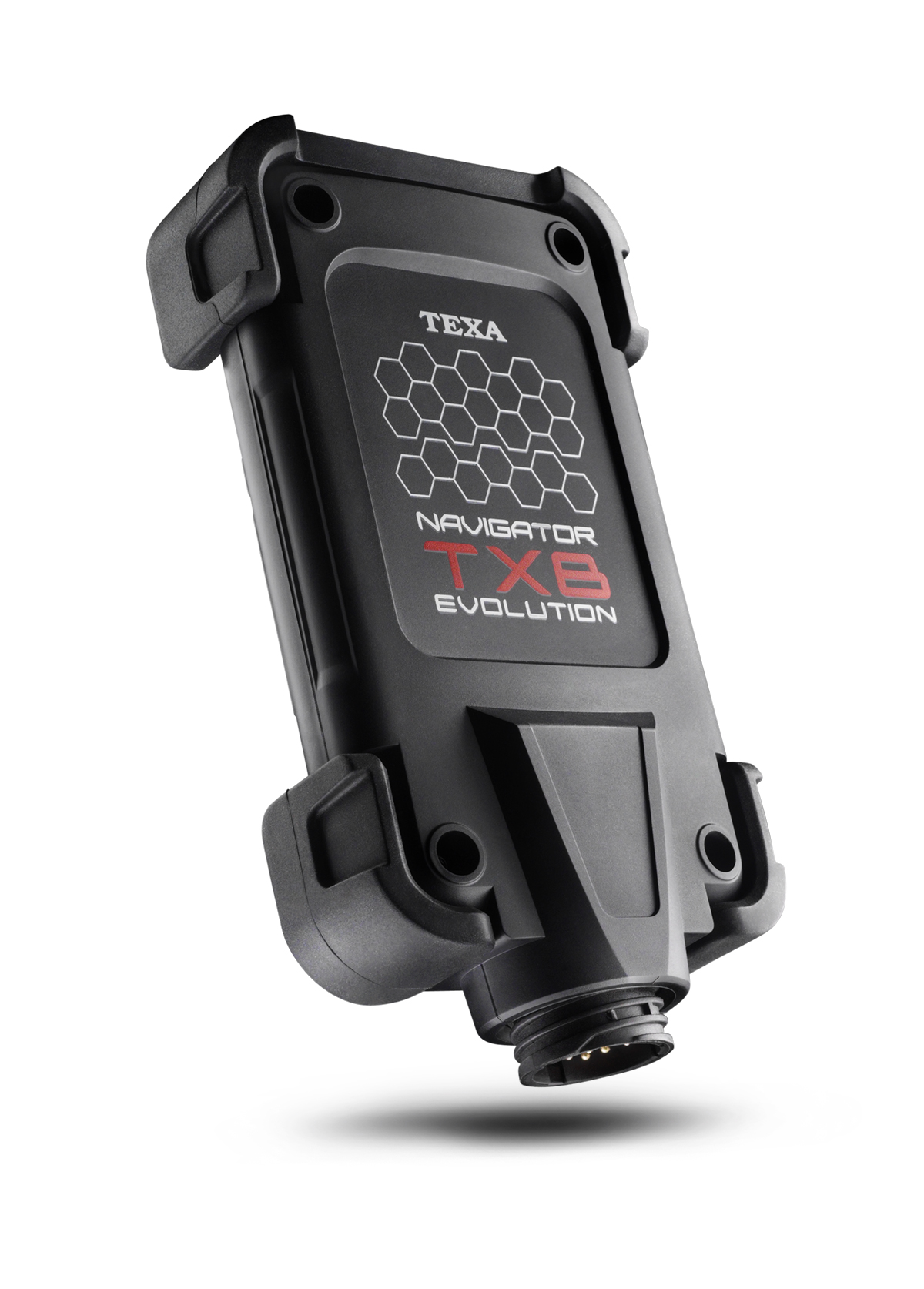

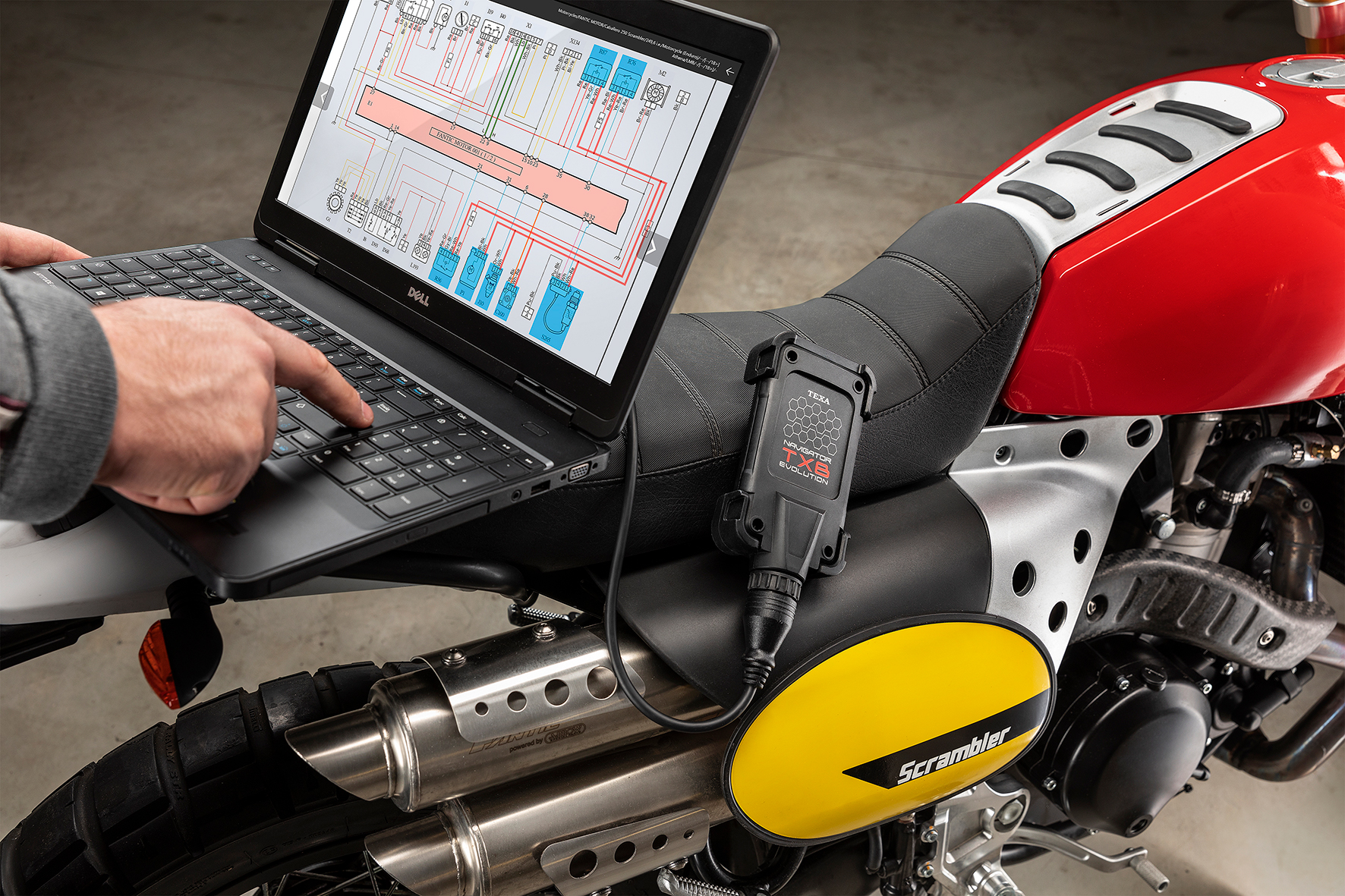

TECHNICAL SPECIFICATIONS
Processor: CORTEX M3 STM32F103ZG 72 MHz, FLASH 1024 KBytes, SRAM 96 KBytes
SRAM memory: 16 MBits organized in 1024K x 16 bits
NAND Flash memory: 8 GBit on an 8-bit bus
Vehicle battery: 12VDC and 24VDC system management
External power supply: 8 ÷ 32 V

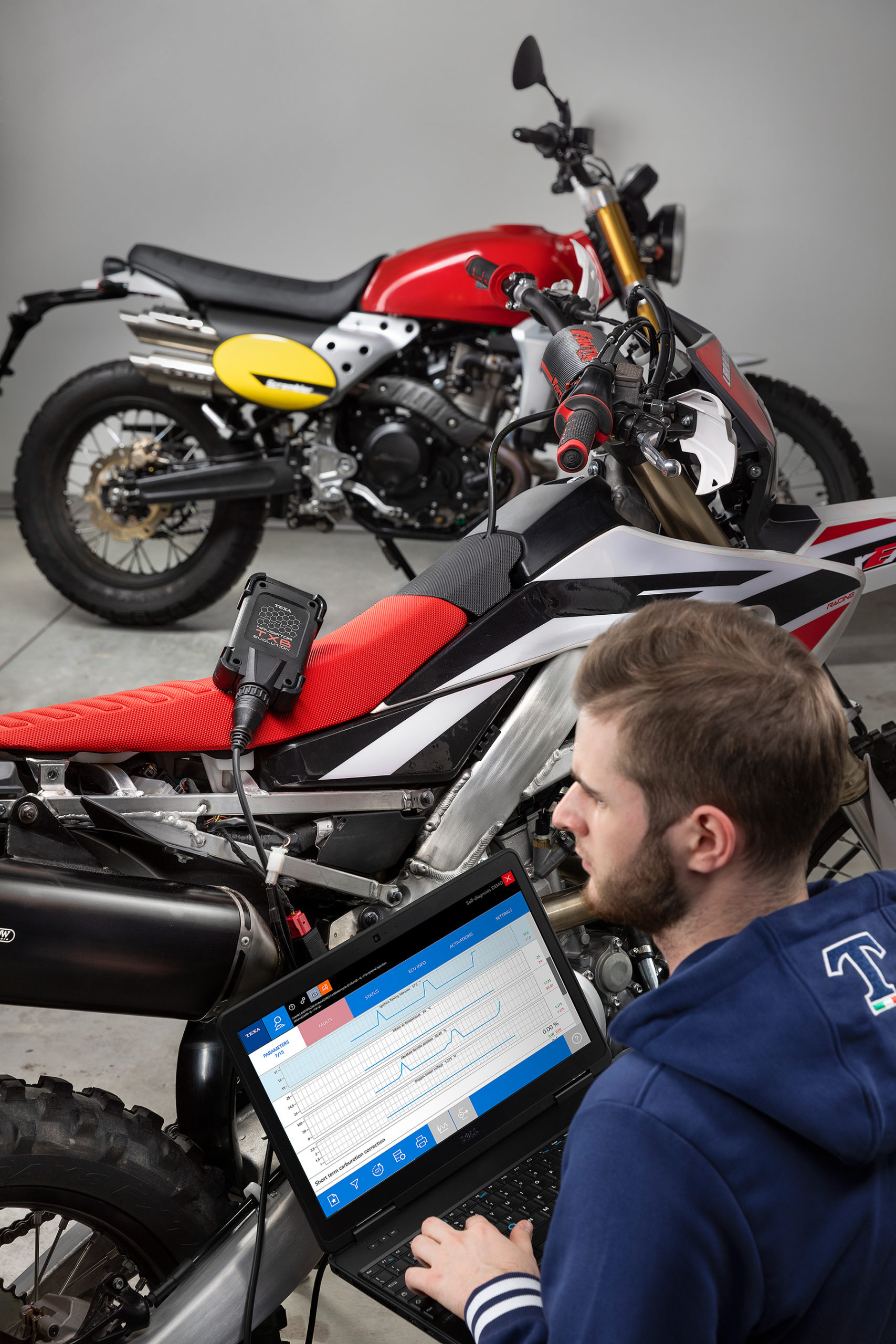

USB communication: virtual RS232 via USB 2.0 Device
Wireless connection: Bluetooth class1 (30 m)
Electronic switch: 2-way, 13 independent positions

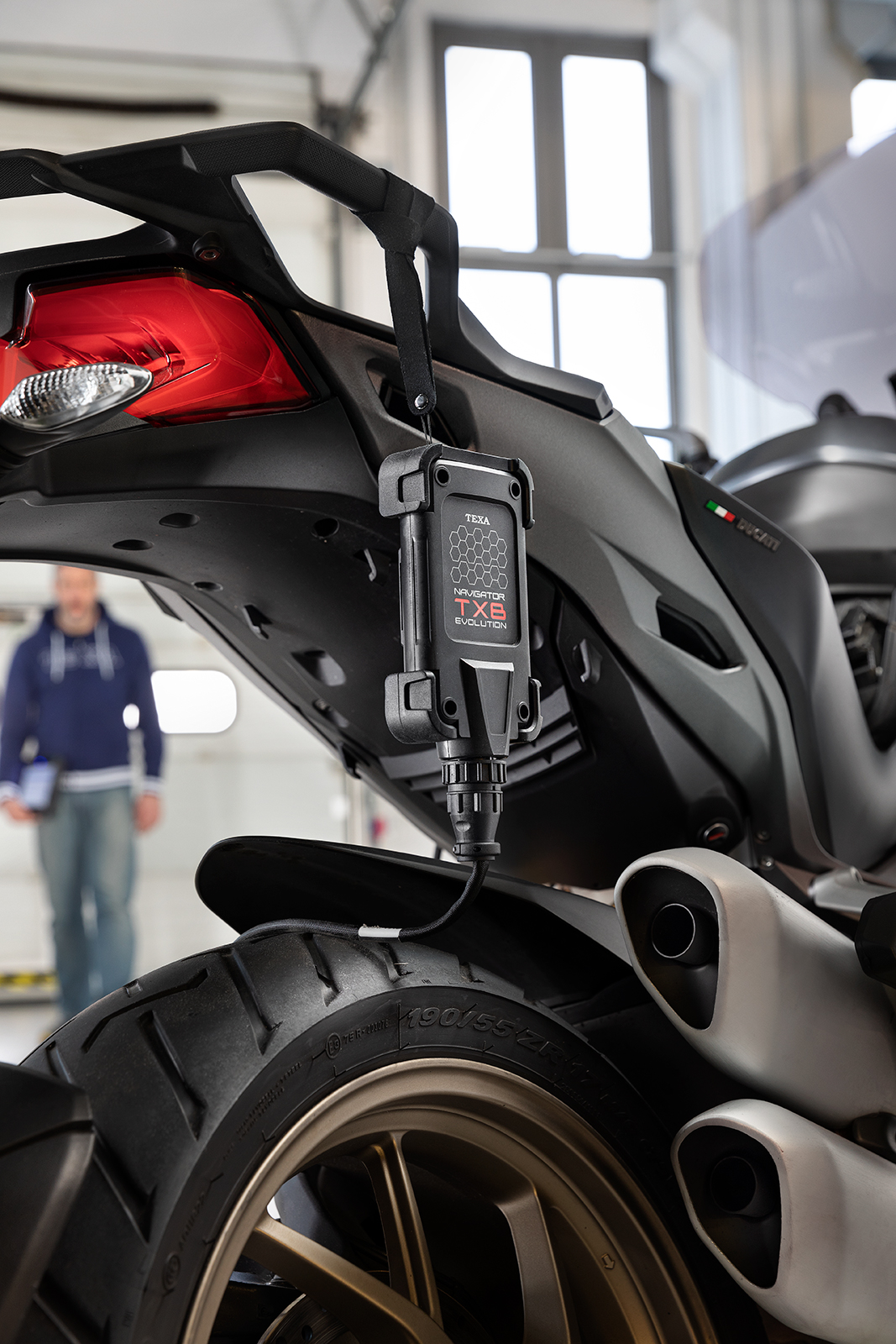

Diagnostic connector: 16-pin CPC
Supported protocols:
• Blink codes
• K, L (with current protection 100 mA), ISO9141-2, ISO14230
• CAN ISO11898-2 High Speed
• Second ISO11898-2 CAN Channel
• CAN ISO 11898-3 LOW Speed
• CAN SAE J2411 Single Wire
• SAE J1850 PWM
• SAE J1850 VPW
• SAE J1708
• RS232
Visible warnings: 1 green/red LED, 1 blue LED
12 V consumption: < 200 mA
24 V consumption: < 100 mA
Operating temperature: 0 ÷ 50 °C
Storage temperature: - 20 ÷ 60 °C
Operating moisture: 10% ÷ 80% without condensation
Regulations:
• Directive: 1999/5/EC
• Safety: EN 60950-1:2006 + A11:2009 + A1:2010 + A12:2011 + AC:2011 + A2:2013
• Electromagnetic compatibility: EN 55022, EN 55024, EN 301 489-1
• Radio systems: EN 301 489-17, EN 300 328-2
Weight: 215 g
